AIRMAR® B175L

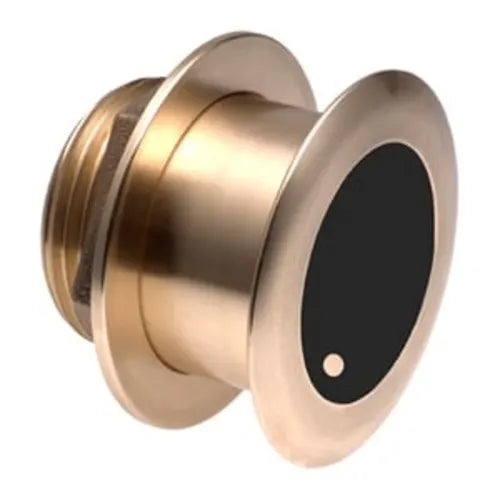

AIRMAR® B175L (0° Tilt): 1 kW Low-CHIRP Thru-Hull Transducer (2,500 ft)
The AIRMAR® B175L (0° tilt) is the essential transducer for extreme deep-water fishing. This premium, **flush-mounted bronze thru-hull unit** features robust **1 kW Traditional Sonar** operating across the **Low-CHIRP (40–60 kHz)** frequency band. It provides maximum depth performance down to an incredible **760 meters (2,500 feet)**. The low frequency offers superior bottom tracking and noise rejection in deep coastal and offshore environments. The **0° tilt version** is specifically designed for hulls with minimal deadrise (0°–7°).
MAXIMUM DEPTH PENETRATION & POWER
This transducer is built with a durable bronze housing and utilizes the low-frequency band for the best possible depth performance and coverage area in the deepest water.
KEY SONAR & INSTALLATION FEATURES
- Extreme Depth: **1 kW power output** operating at 40–60 kHz ensures reliable signal return down to **2,500 feet**.
- Low-CHIRP Frequency: The 40–60 kHz band provides deep penetration and a wide coverage area (16°–25° beamwidths).
- Flush Mount Design: Thru-hull installation offers flush mounting for **minimum drag**, sitting less than 1/4 inch outside the hull.
- Tilt Compensation: The 0° tilt compensates for hulls with deadrise angles from **0° to 7°**.
CONNECTIVITY AND INTEGRATION
The B175L is a heavy-duty, bronze sensor compatible with a wide range of Garmin systems.
- **8-Pin Connector:** Uses the 8-pin connector for power and traditional sonar data output.
- **Housing:** Durable bronze construction is ideal for **fiberglass and wood hulls**.
Inverell Boating Centre Expert Note:
The AIRMAR B175L (0° Tilt) is a specialized 1 kW Traditional CHIRP only transducer. It is the premier choice for vessels dedicated to **deep-water fishing** (tuna, swordfish, etc.), as the low frequency ensures the maximum possible depth reading. The 0° tilt is crucial for accurate returns on low-deadrise hulls. **Professional installation is essential.**
