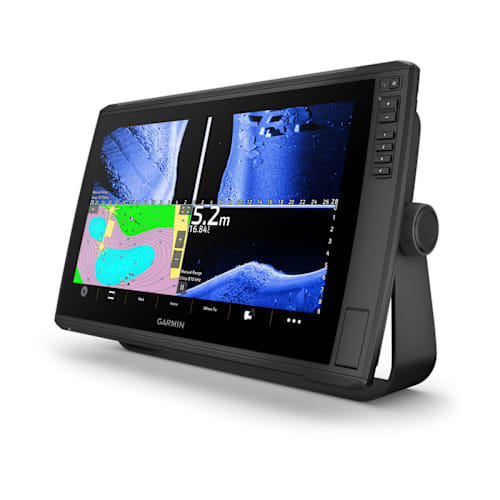

    ECHOMAP™ ULTRA 2 165sv: Flagship 16-inch Chartplotter with UHD Sonar

    The ECHOMAP™ Ultra 2 165sv is designed for the serious Australian angler who demands the largest, clearest display available. This 16-inch Chartplotter features a **Full HD resolution touchscreen** and is bundled with the advanced **GT56UHD-TM transducer**.[1] It provides superior navigation clarity with preloaded Garmin Navionics+™ Australia & New Zealand mapping, robust networking, and full support for the entire LiveScope™ sonar lineup.


    ULTIMATE CLARITY AND SYSTEM COMMAND

    Experience the ultimate in big-picture clarity. This unit serves as the command center for your entire marine network, offering exceptional sonar detail and hands-free control.

    KEY SONAR & NAVIGATION FEATURES

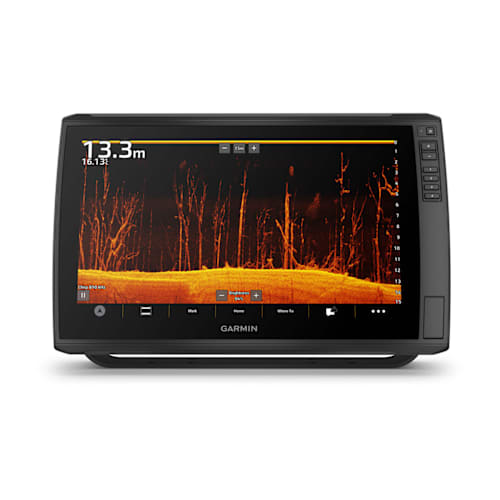

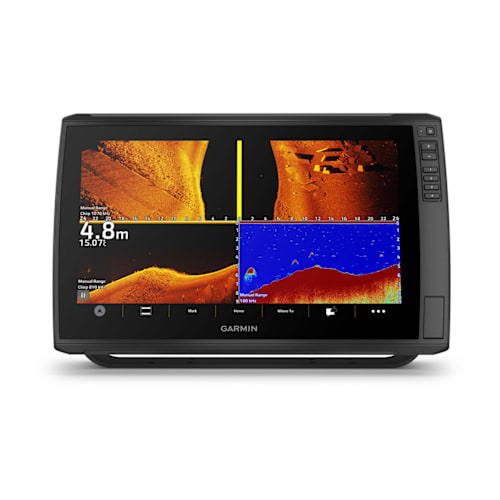

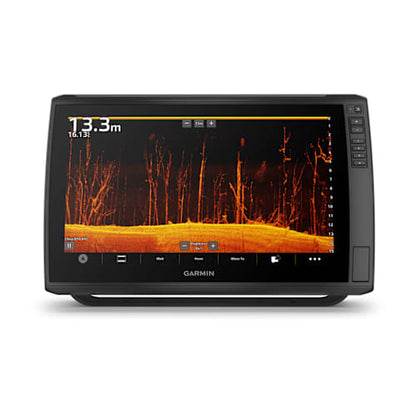

    • Built-in UHD Sonar: Includes Garmin CHIRP Traditional Sonar plus **Ultra High-Definition (UHD) ClearVü™ and SideVü™** scanning sonars via the bundled GT56 transducer.

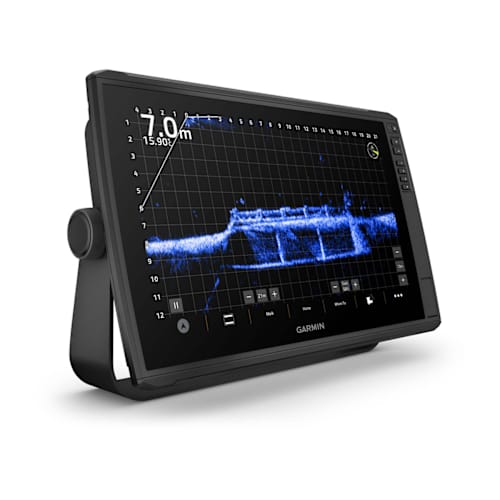

    • LiveScope™ Ready: Fully supports the entire lineup of LiveScope live-scanning sonar products for real-time viewing (transducers sold separately). [2]
    • Preloaded Charts: Comes ready for Australia and New Zealand with built-in **Garmin Navionics+™ mapping**, including a 1-year subscription for daily updates.

    ADVANCED INTEGRATION & NETWORKING

    The ECHOMAP Ultra 2 165sv is built for advanced vessel integration, ensuring connectivity and hands-free control:

    • Multi-Band GPS: Provides **superior position accuracy** using multi-band GPS technology, crucial for precise waypoint marking.
    • Wireless Networking: Share sonar, waypoints, and routes wirelessly with another ECHOMAP Ultra

    Specification in detail

    General & Display


    DIMENSIONS: 43 x 26.6 x 8 cm (16.9″ x 10.5″ x 3.14″)

    WEIGHT: 4.31 kg (9.5 lbs)

    WATER RATING: IPX7 (Submersible)

    DISPLAY TYPE: FHD, IPS Touchscreen with Keyed Assist

    DISPLAY SIZE: 15.6″ diag (39.7 cm)

    DISPLAY RESOLUTION: 1920 x 1080 pixels

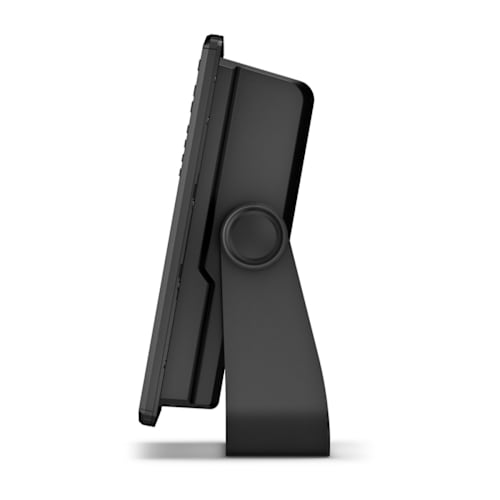

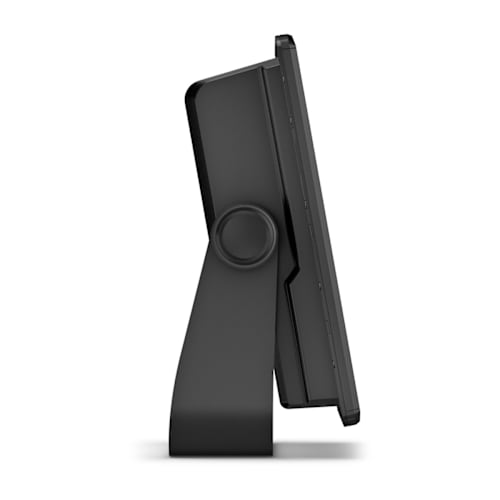

    MOUNTING OPTIONS: Bail or Flush

    Sonar Capabilities (Built-in)


    POWER OUTPUT: 600 W

    TRADITIONAL SONAR: Built-in (Single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)

    CLEARVÜ: Built-in 260/455/800/1000/1200 kHz

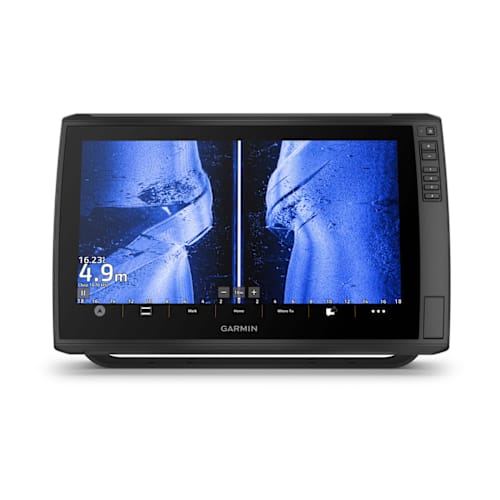

    SIDEVÜ: Built-in 260/455/800/1000/1200 kHz

    LIVESCOPE/PANOPTIX SUPPORT: Yes (Full Lineup)

    Navigation & Memory


    GPS RECEIVER: 10 Hz Multi-Band, Multi-Constellation (GPS, GLONASS, GALILEO, BEIDOU)

    PRELOADED MAPS: Garmin Navionics+™ Inland & Coastal Australia/NZ (with built-in Auto Guidance+)

    DATA CARDS: Accepts 2 microSD Cards

    WAYPOINTS / TRACKS / ROUTES: 5,000 / 50 Saved Tracks / 100

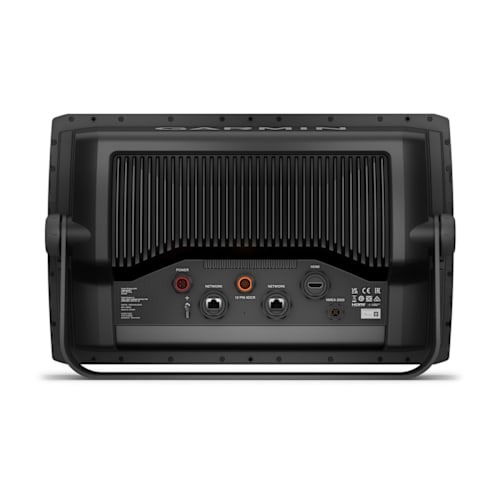

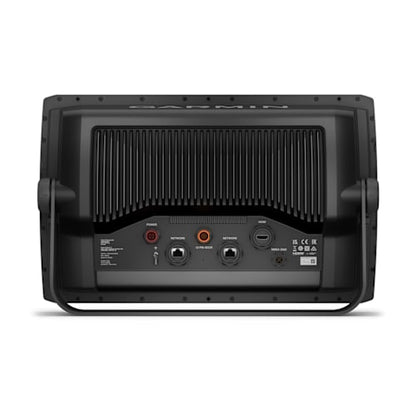

    Connectivity & Electrical


    POWER INPUT: 9 to 18 Vdc

    TYPICAL CURRENT DRAW: 3.9 A @ 12 Vdc

    MAXIMUM CURRENT DRAW: 6.6 A @ 12 Vdc

    GARMIN NETWORK PORTS: 2 (Large Connector)

    NMEA 2000® PORTS: 1

    TRANSDUCER PORTS: 1 (12-pin scanning sonar)

    VIDEO OUTPUT: 1 (HDMI)


    Inverell Boating Centre Technical Summary: This 16-inch MFD offers the highest resolution (1920x1080) and most robust networking in the ECHOMAP line, featuring dual Garmin Network Ports and HDMI Out. The multi-band GPS guarantees superior position accuracy for professional-level navigation and fishing.
