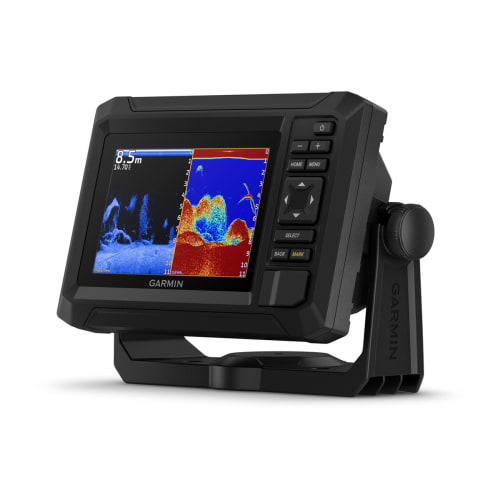

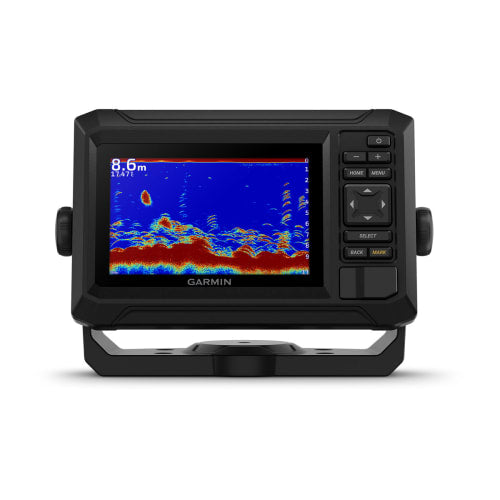

    ECHOMAP™ UHD2 55cv: 5-inch ClearVü™ Chartplotter with Navionics+ Mapping

    The ECHOMAP™ UHD2 55cv is the ideal compact solution for anglers who need reliable performance without sacrificing crucial display space. This unit features a bright **5-inch display** and comes bundled with the **GT20-TM transducer** [1], providing powerful **CHIRP Traditional Sonar** and high-resolution **ClearVü™ scanning**. With built-in Garmin Navionics+™ Australia & New Zealand mapping, it offers excellent navigational clarity and fishfinding capability in a small form factor.


    CLEAR VIEW SONAR & MAPPING INTEGRATION

    The 55cv uses high-contrast vivid color palettes to make structure and fish easier to distinguish than ever before. It provides a reliable picture for successful fishing:

    KEY SONAR & NAVIGATION FEATURES

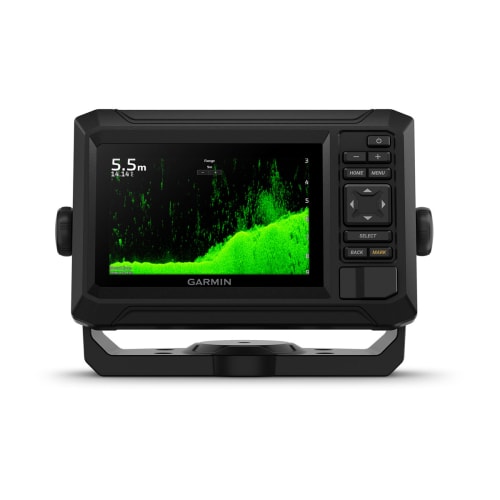

    • Traditional CHIRP & ClearVü™: The GT20-TM transducer provides two types of sonar views for clear coverage directly beneath your boat.

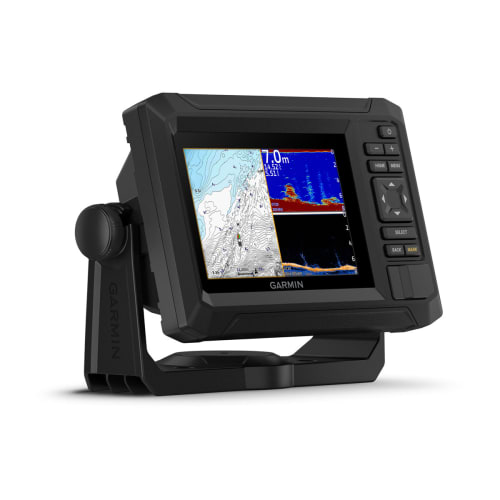

    • Preloaded Charts: Includes built-in **Garmin Navionics+ mapping** for Australia and New Zealand, giving you superior coverage and daily updates (1-year subscription included).
    • Wireless Networking: The 55cv can **wirelessly share sonar, waypoints, and routes** with another compatible ECHOMAP UHD2 Chartplotter onboard, perfect for sharing data between the helm and a secondary station.

    ACTIVECAPTAIN® APP & EFFICIENCY

    Built-in Wi-Fi and the efficient power profile make the 55cv highly practical for smaller vessels:

    • ActiveCaptain® App: Built-in Wi-Fi® connectivity pairs with the free app for access to the OneChart™ feature, software updates, and Quickdraw Community data.
    • GPS Accuracy: The integrated GPS/GALILEO receiver provides a 5 Hz update rate for reliable position reporting, supporting WAAS.

    Inverell Boating Centre Expert Note:

    The ECHOMAP UHD2 55cv is an excellent, compact chartplotter with a highly efficient power draw (1.0A typical). Note that the user interface is designed for simplicity (Keyed input only, no touchscreen) and that it includes only one **4-pin transducer port**, optimized for the included GT20-TM (ClearVü/Traditional) transducer.

    Specification in detail

    General & Physical


    DIMENSIONS: 7.4″ x 4.8 x 2.4″ (18.8 x 12.2 x 6.2 cm)

    WEIGHT: 1.1 lbs (0.5 kg)

    WATER RATING: IPX7 (Submersible)

    DISPLAY TYPE: WVGA, IPS Color Display

    DISPLAY SIZE: 5.0" diag

    DISPLAY RESOLUTION: 800 x 480 pixels

    INPUT TYPE: Keyed

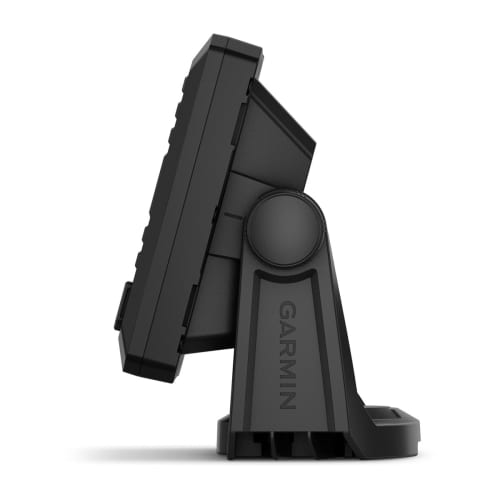

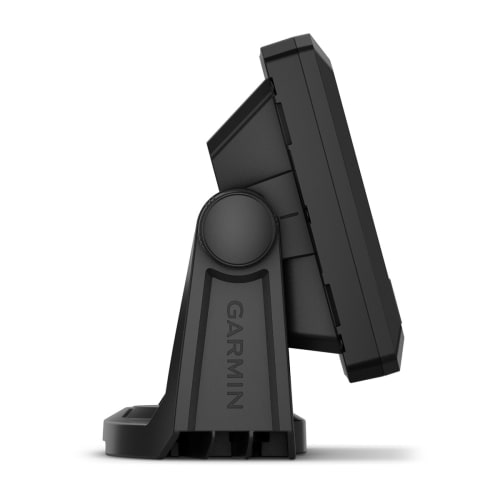

    MOUNTING OPTIONS: Bail or Flush

    Sonar Capabilities (Built-in)


    TRANSDUCER INCLUDED: GT20-TM [1]

    POWER OUTPUT: 500 W (RMS)

    TRADITIONAL SONAR: Built-in (Single channel CHIRP, 70/83/200 kHz)

    CLEARVÜ: Built-in 260/455/800/1000/1200 kHz

    LIVESCOPE SUPPORT: No (This CV model does not support LiveScope)

    BOTTOM LOCK: Yes

    Navigation & Memory


    GPS RECEIVER: 5 Hz GPS/GALILEO

    PRELOADED MAPS: Garmin Navionics+™ Inland & Coastal Australia/NZ

    DATA CARDS: Accepts 1 microSD™ card (32 GB max)

    WAYPOINTS / TRACKS / ROUTES: 5,000 / 50 Saved Tracks / 100

    AUTO GUIDANCE+™: Yes (Downloadable via ActiveCaptain app)

    WAAS SUPPORT: Yes

    Connectivity & Electrical


    POWER INPUT: 9 to 18 Vdc

    TYPICAL CURRENT DRAW: 1.0 A @ 12 Vdc

    MAXIMUM CURRENT DRAW: 1.5 A @ 12 Vdc

    POWER CONSUMPTION: 18 W (Max)

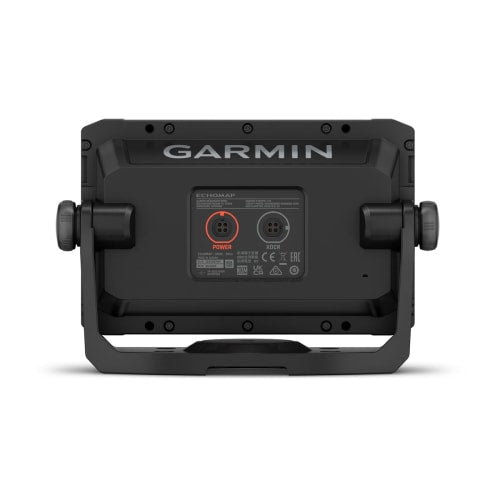

    TRANSDUCER PORTS: 1 (4-pin ClearVü/Traditional)

    GARMIN NETWORK PORTS: None

    WIRELESS CONNECTIVITY: Built-in Wi-Fi®


    Inverell Boating Centre Technical Summary: The ECHOMAP UHD2 55cv is an efficient and robust 5-inch chartplotter, drawing only 1.0A typically. Its reliance on the single 4-pin port and lack of a Garmin Network Port confirms its design as a powerful, non-networked standalone solution for small boats and limited dash space.
