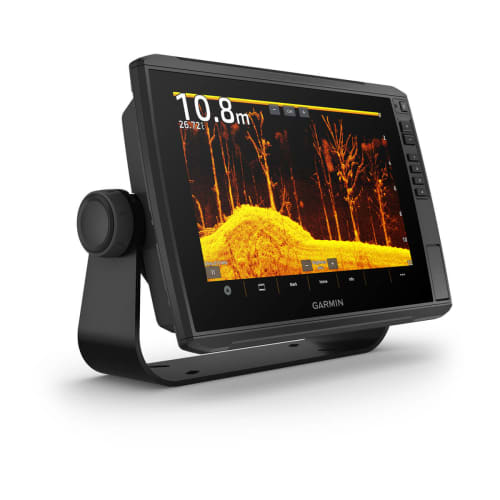

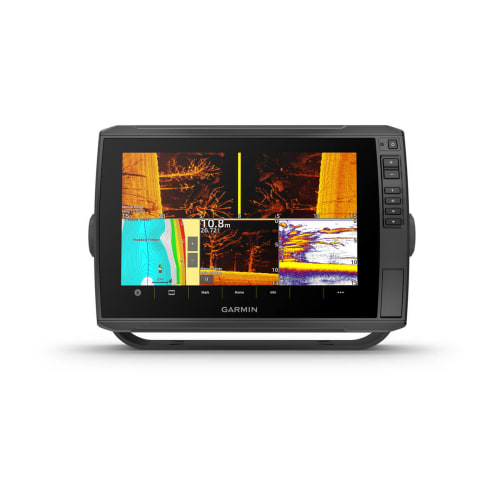

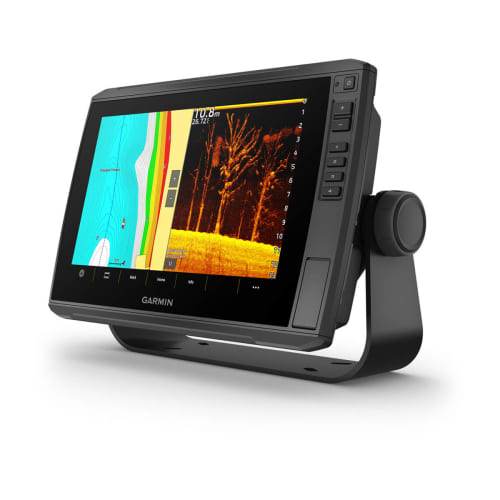

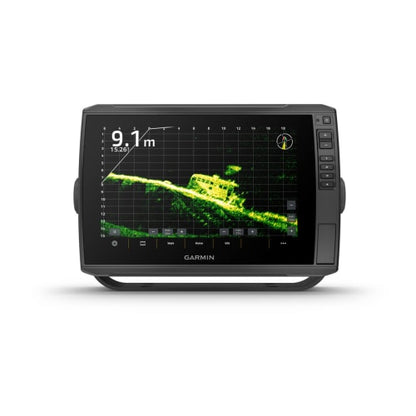

ECHOMAP™ ULTRA 2 105sv: 10-inch Chartplotter with UHD Sonar & Multi-Band GPS
The ECHOMAP™ Ultra 2 105sv is a powerful 10-inch Chartplotter designed to be the central command station for your vessel, offering maximum fishfinding capability in a space-conscious size. This unit features a crisp **WXGA IPS touchscreen** and comes bundled with the **GT56UHD-TM transducer** [1], providing best-in-class **Ultra High-Definition scanning sonar**. It includes preloaded Garmin Navionics+™ Australia & New Zealand mapping, robust wired and wireless networking, and full support for the entire LiveScope™ sonar lineup.
ULTRA HIGH-DEFINITION SONAR & LIVESCOPE™ SUPPORT
Experience photo-like images of what's beneath the surface. The ECHOMAP Ultra 2 provides all the tools required for precision fishing and reliable navigation.
KEY SONAR & NAVIGATION FEATURES

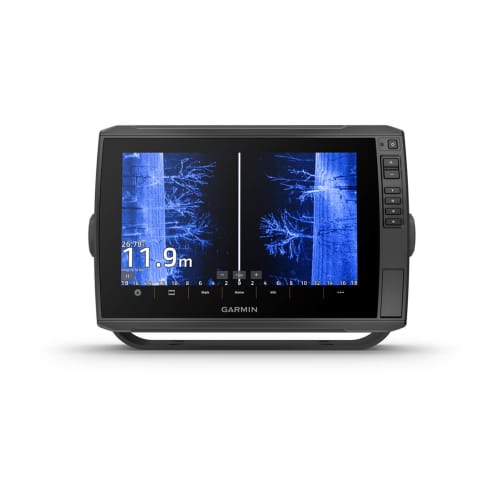

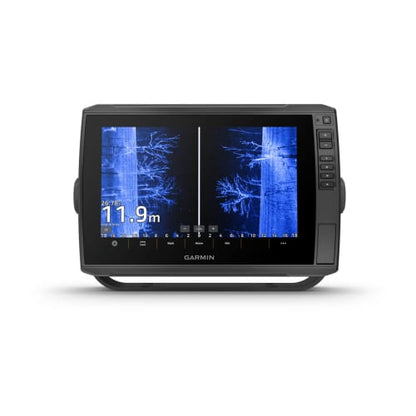

- Built-in UHD Sonar: The bundled GT56 transducer provides Ultra High-Definition **ClearVü™ and SideVü™** scanning sonars, as well as Garmin CHIRP Traditional Sonar.

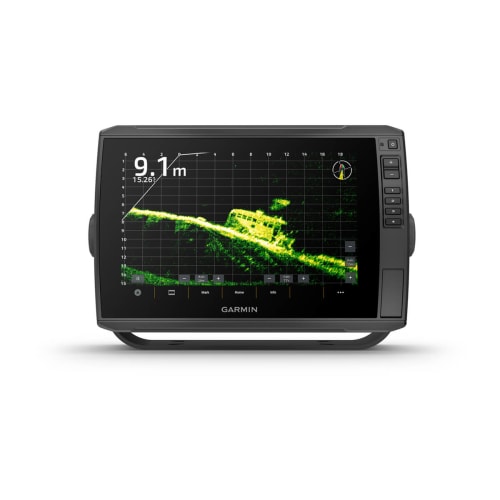

- LiveScope™ Ready: Fully supports the entire lineup of LiveScope live-scanning sonar products for real-time viewing (transducers sold separately). [2]
- Multi-Band GPS: Delivers **superior position accuracy** using multi-band GPS technology, essential for precise waypoint management and route following.
ADVANCED NETWORKING & CONTROL
The ECHOMAP Ultra 2 features robust connectivity, including dual Garmin Marine Network Ports for complex system expansion and wireless control options:
Specification in detail
Specification in detail
General & Display
DIMENSIONS: 29.5 x 19.5 x 9.8 cm (11.6″ x 7.7″ x 3.9″)
WEIGHT: 1.8 kg (4 lbs)
WATER RATING: IPX7 (Submersible)
DISPLAY TYPE: WXGA, IPS Touchscreen with Keyed Assist
DISPLAY SIZE: 10″ diagonal (21.7 cm)
DISPLAY RESOLUTION: 1280 x 800 pixels

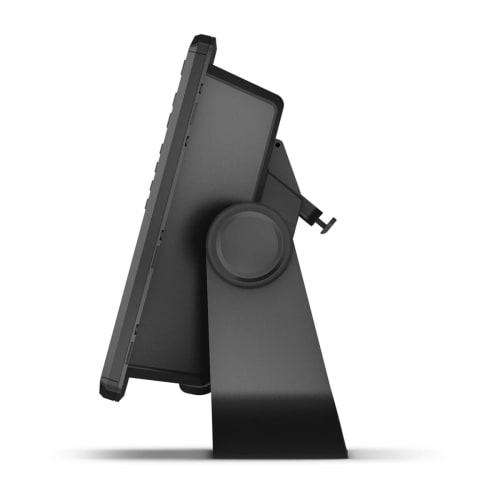

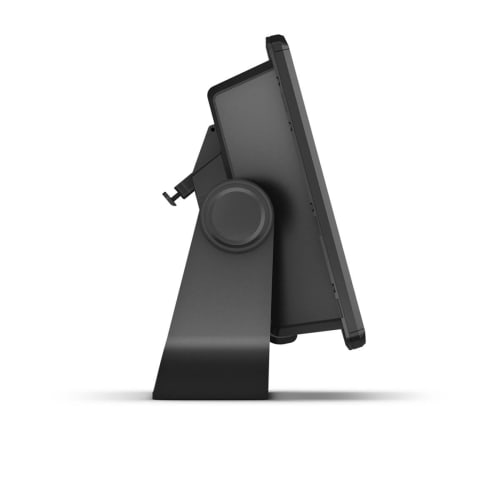

MOUNTING OPTIONS: Bail or Flush
Sonar Capabilities (Built-in)
POWER OUTPUT: 600 W (Traditional CHIRP)
TRADITIONAL SONAR: Built-in (Single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
CLEARVÜ: Built-in 260/455/800/1000/1200 kHz (UHD Sonar)
SIDEVÜ: Built-in 260/455/800/1000/1200 kHz (UHD Sonar)
LIVESCOPE/PANOPTIX SUPPORT: Yes (Full Lineup)
Navigation & Memory
GPS RECEIVER: 10 Hz Multi-Band, Multi-Constellation (GPS, GLONASS, GALILEO, BEIDOU)
PRELOADED MAPS: Garmin Navionics+™ Inland & Coastal Australia/NZ (with built-in Auto Guidance+)
DATA CARDS: Accepts 2 microSD Cards
WAYPOINTS / TRACKS / ROUTES: 5,000 / 50 Saved Tracks / 100

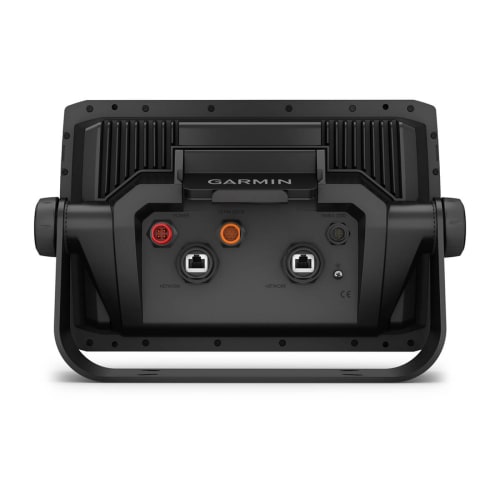

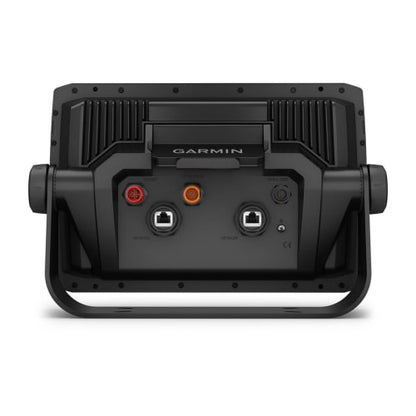

Connectivity & Electrical
POWER INPUT: 9 to 18 Vdc
TYPICAL CURRENT DRAW: 2.3 A @ 12 Vdc
MAXIMUM CURRENT DRAW: 5 A @ 12 Vdc
POWER CONSUMPTION: 34 W (Max)
GARMIN NETWORK PORTS: 2 (Large Connector)
NMEA 2000® PORTS: 1
TRANSDUCER PORTS: 1 (12-pin scanning sonar)
WIRELESS CONNECTIVITY: Built-in Wi-Fi® and ANT®
Inverell Boating Centre Technical Summary: The ECHOMAP Ultra 2 105sv maintains the high-resolution WXGA IPS display and dual network ports of the larger models while providing a more efficient typical current draw of 2.3A, making it a high-performance choice for complex systems in limited dash space.
Warranty / Availability of Repair Facilities & Parts
Warranty / Availability of Repair Facilities & Parts
AU Warranty / Availability of Repair Facilities & Parts
Garmin Warranty / Availability of Repair Facilities & Parts
On this page, Garmin customers in Australia will find detailed warranty information; information regarding availability of repair facilities and parts including for out-of-warranty service; other important details regarding repair or replacement of a Garmin product; and how to contact Inverell Boating Centre for further information.
On this page
- Limited Warranty
- Availability of Repair Facilities & Parts (Out of Warranty)
- Repair or Replacement of a Garmin Product
- Additional Resources
- Contact for Further Information
Limited Warranty
This warranty is provided by Garmin Australasia Pty Ltd.
Application of Australian Consumer Guarantees
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.
The benefits under this Limited Warranty are in addition to other rights and remedies under applicable law. Phone: 0417 159 205.
One-Year Consumer Products Limited Warranty
Non-aviation products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Garmin Australasia will, at its sole option, repair or replace any components that fail in normal use at no charge for parts or labour (customer responsible for transportation).
Warranty Exclusions
- Cosmetic damage such as scratches, nicks, and dents.
- Consumable parts (batteries, etc.) unless damage occurs due to defects in materials or workmanship.
- Damage from accident, abuse, misuse, water, fire, or external causes.
- Service by non-authorised providers.
- Modifications or altered units without written permission.
- Damage caused by non-Garmin cables or accessories.
Garmin reserves the right to refuse warranty claims for products obtained or used in contravention of local laws. Map accuracy and completeness are not guaranteed.
Warranty Process
- Contact Inverell Boating Centre Support to request an RMA number.
Email: inverellboatingcentre.cwa@gmail.com
Phone: 0417 159 205
Provide your unit serial number, return address, and contact number.
- Ship the unit with RMA number to Garmin or Inverell Boating Centre.
INVERELL BOATING CENTRE
Attn: Warranty / Returns:
10a Swanbrook Rd,
Inverell NSW 2360,
Australia
Availability of Repair Facilities & Parts (Out of Warranty)
Garmin products include complex integrated components. Repairs of parts such as cracked screens or integrated bands may not be possible outside Garmin factory conditions. Therefore, facilities or spare parts may not always be available for repair of such components.
Where an out-of-warranty service is required, Garmin Australasia or INVERELL BOATING CENTRE may offer to sell a replacement unit or Garmin Refurbished product. This applies only to out-of-warranty service and not to consumer guarantees under the Australian Consumer Law.
Repair or Replacement of a Garmin Product
Australian Consumer Law Notice:
- Repair or replacement of goods capable of retaining user data may result in loss of that data.
- Goods presented for repair may be replaced with refurbished goods of the same type rather than repaired. Refurbished parts may be used to repair goods.
Additional Resources
- Parallel imports: accc.gov.au/buying-parallel-imports
- Proof of purchase: accc.gov.au/receipts-proof-of-purchase
- Identifying genuine business: accc.gov.au/identifying-a-genuine-business
Contact for Further Information
For all warranty or out-of-warranty enquiries, please contact:
INVERELL BOATING CENTRE
www.inverellboatingcentre.com
10a Swanbrook Rd, Inverell NSW 2360, Australia
Phone: 0417 159 205
