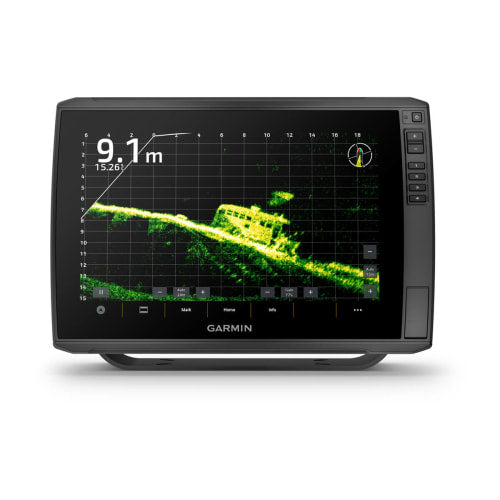

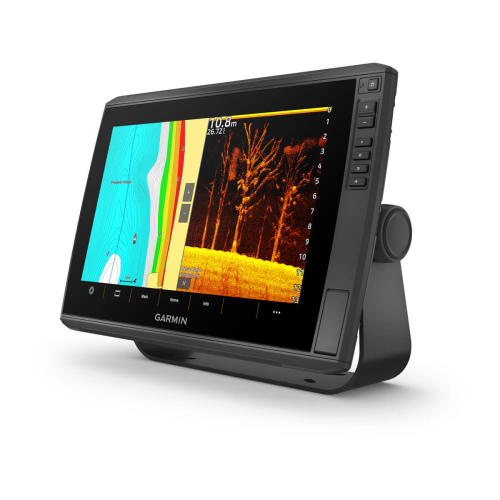

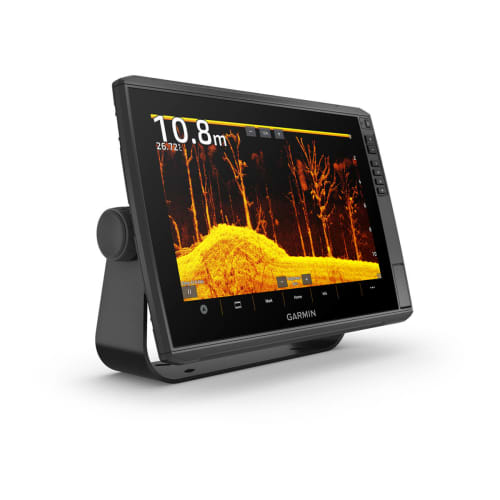

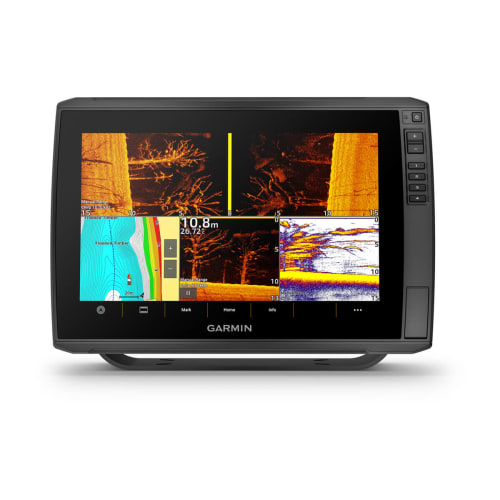

    ECHOMAP™ ULTRA 2 125sv: 12-inch Chartplotter with UHD Sonar & Multi-Band GPS

    The ECHOMAP™ Ultra 2 125sv is a versatile, high-definition Chartplotter designed for successful fishing and precise navigation. Featuring a large, crisp **12-inch sunlight-readable touchscreen**, this unit comes bundled with the **GT56UHD-TM transducer** [1], providing best-in-class **Ultra High-Definition scanning sonar**. With preloaded Garmin Navionics+™ Australia & New Zealand mapping, it puts a world of fishfinding and command capability at your fingertips.


    ULTRA HIGH-DEFINITION SONAR & LIVESCOPE™ SUPPORT

    The ECHOMAP Ultra 2 series gives you all the tools you need for success, combining powerful sonar processing with high-detail maps.

    KEY SONAR & NAVIGATION FEATURES

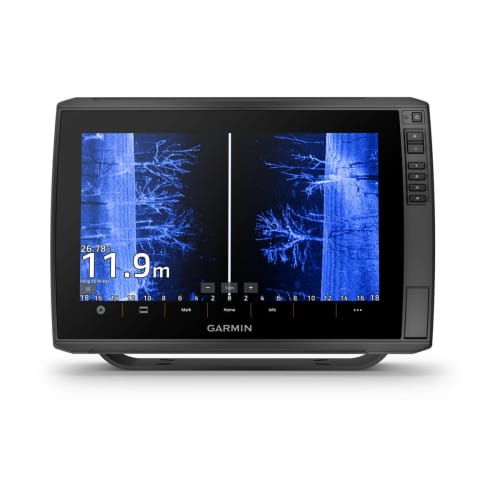

    • Built-in UHD Sonar: The bundled GT56 transducer provides Ultra High-Definition **ClearVü™ and SideVü™** scanning sonars, giving you nearly photographic images of structure and fish beneath and beside your boat.
    • LiveScope™ Ready: This Chartplotter fully supports the entire lineup of LiveScope live-scanning sonar products (transducers sold separately). [2]
    • Multi-Band GPS: Get **improved position accuracy** with multi-band GPS technology, crucial for precise waypoint marking and navigation in challenging areas.

    ADVANCED NETWORKING & CONTROL

    The ECHOMAP Ultra 2 is built for seamless system integration, supporting both wired and wireless components:

    • Wireless Networking: Share sonar, waypoints, and routes wirelessly with another compatible ECHOMAP Ultra 2 or UHD2 plotter onboard.
    • Force® Trolling Motor: Wirelessly connect to your Force trolling motor [1] to navigate to waypoints, draw and follow routes, and control the motor directly from the 12-inch screen.
    • NMEA 2000® Network: Connect to essential components like heading sensors, autopilots, and Fusion-Link™ audio systems.[1]
    • ActiveCaptain® App: Pair with the free smart-device app for software updates, screen recording, and Quickdraw™ Community data sharing.

    Inverell Boating Centre Expert Note:

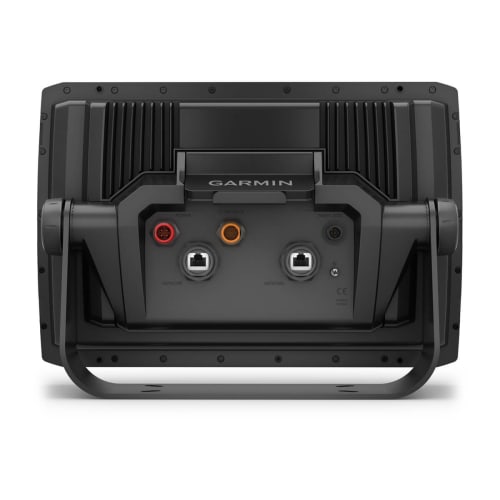

    The 125sv features **two large Garmin Marine Network Ports** for reliable wired connection to devices like Radar or external GSD/GLS Sonar Black Boxes. Its WXGA IPS display provides superior viewing angles and color accuracy, essential for professional-grade navigation.

    Specification in detail

    General & Display


    DIMENSIONS: 34.1 x 22.9 x 9.8 cm (13.4″ x 9″ x 3.9″)

    WEIGHT: 2.5 kg (5.5 lbs)

    WATER RATING: IPX7 (Submersible)

    DISPLAY TYPE: WXGA, IPS Touchscreen with Keyed Assist

    DISPLAY SIZE: 12.1″ diagonal (30.7 cm)

    DISPLAY RESOLUTION: 1280 x 800 pixels

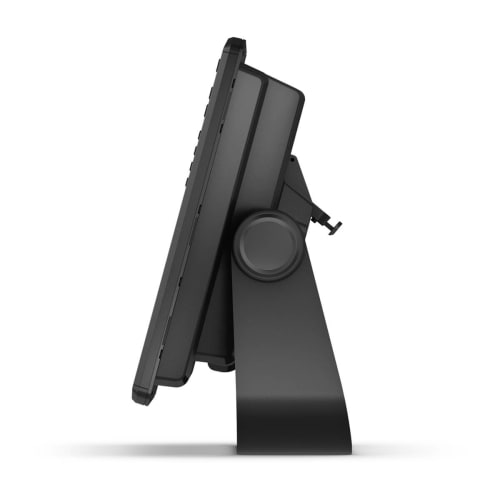

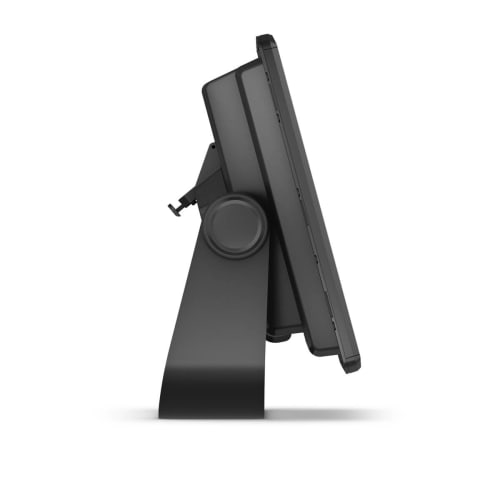

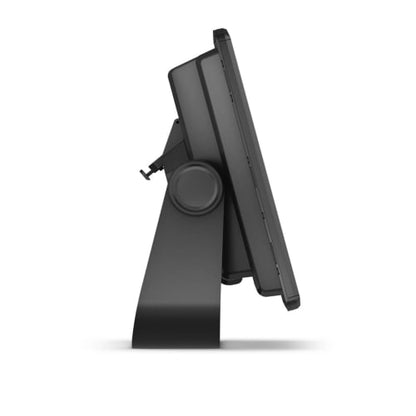

    MOUNTING OPTIONS: Bail or Flush

    Sonar Capabilities (Built-in)


    POWER OUTPUT: 600 W (Traditional CHIRP)

    TRADITIONAL SONAR: Built-in (Single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)

    CLEARVÜ: Built-in 260/455/800/1000/1200 kHz (UHD Sonar)

    SIDEVÜ: Built-in 260/455/800/1000/1200 kHz (UHD Sonar)

    LIVESCOPE/PANOPTIX SUPPORT: Yes (Full Lineup)

    Navigation & Memory


    GPS RECEIVER: 10 Hz Multi-Band, Multi-Constellation (GPS, GLONASS, GALILEO, BEIDOU)

    PRELOADED MAPS: Garmin Navionics+™ Inland & Coastal Australia/NZ (with built-in Auto Guidance+)

    DATA CARDS: Accepts 2 microSD Cards

    WAYPOINTS / TRACKS / ROUTES: 5,000 / 50 Saved Tracks / 100

    Connectivity & Electrical


    POWER INPUT: 9 to 18 Vdc

    TYPICAL CURRENT DRAW: 2.5 A @ 12 Vdc

    MAXIMUM CURRENT DRAW: 5 A @ 12 Vdc

    GARMIN NETWORK PORTS: 2 (Large Connector)

    NMEA 2000® PORTS: 1

    TRANSDUCER PORTS: 1 (12-pin scanning sonar)

    WIRELESS CONNECTIVITY: Built-in Wi-Fi® and ANT®


    Inverell Boating Centre Technical Summary: The ECHOMAP Ultra 2 125sv features a powerful WXGA (1280x800) IPS display. Its typical current draw of 2.5A is reasonable for a 12-inch MFD. The inclusion of dual Garmin Network Ports confirms its capability as a robust central hub for large, complex marine electronics systems.
