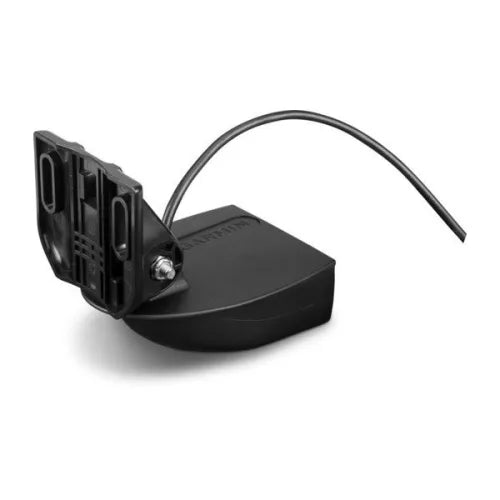

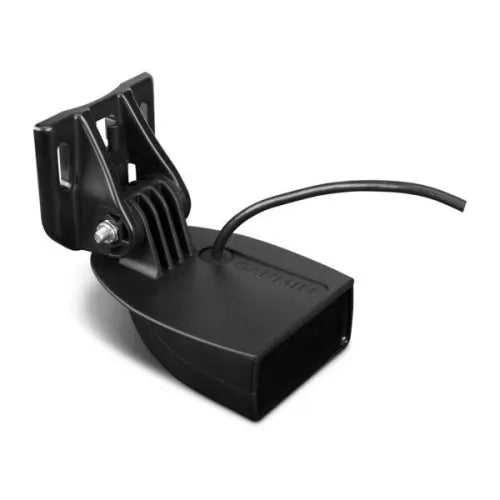

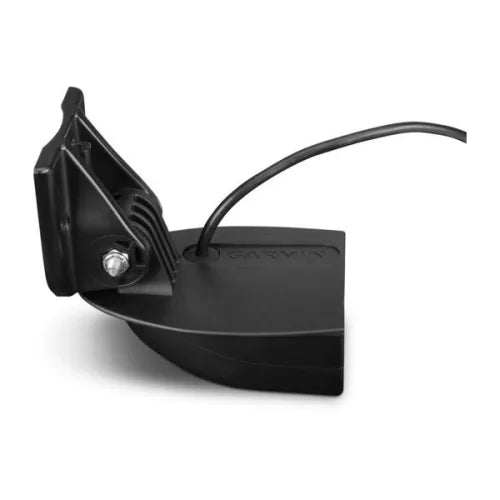

GARMIN GT15M-TM: Mid-Band CHIRP Traditional Sonar Transducer (600W)
The Garmin GT15M-TM is a high-power **Traditional Sonar transducer** designed for fishermen who require excellent deep-water performance and clarity. This 8-pin unit features **Mid-Band CHIRP Traditional Sonar (85–165 kHz)** and boasts a robust power rating of **600 W**. It delivers clear fish arches and superior target separation to depths up to **1,900 feet (freshwater)**, making it ideal for coastal and offshore applications where reliable depth tracking is crucial.
MID-BAND CHIRP POWER & DEEP COVERAGE
The GT15M-TM is specialized for deep-water traditional sonar, utilizing the Mid-Band CHIRP frequency to provide superior noise rejection and target definition compared to fixed-frequency systems.
KEY SONAR & PERFORMANCE FEATURES
- High Transmit Power: 600 W power output ensures reliable signal return in deep water, reaching depths up to **1,900 feet**.
- Mid-Band CHIRP: Operates in the 85–165 kHz frequency band, balancing depth penetration with target separation.
- Wide Beamwidth: Features a beam angle between **24°–13°**, providing excellent coverage.
- Mounting Versatility: Can be mounted on the **transom** or used as an **in-hull mount** (installation dependent).
INSTALLATION AND CONNECTIVITY
The GT15M-TM is a reliable transducer that uses the 8-pin connector and includes a long cable for flexible installation.
- **8-Pin Connector:** Uses the 8-pin connector for power and traditional sonar data output.
- **Cable Length:** Includes a robust **30-foot cable** for flexible routing on larger vessels.
Inverell Boating Centre Expert Note:
The GT15M-TM is a dedicated Traditional Sonar unit (no scanning capability). Its 600W Mid-Band CHIRP makes it a superior option for deep-water tracking compared to basic dual-frequency models. Ensure your Chartplotter has a compatible 8-pin port and that you do not require ClearVü or SideVü from this single transducer.
