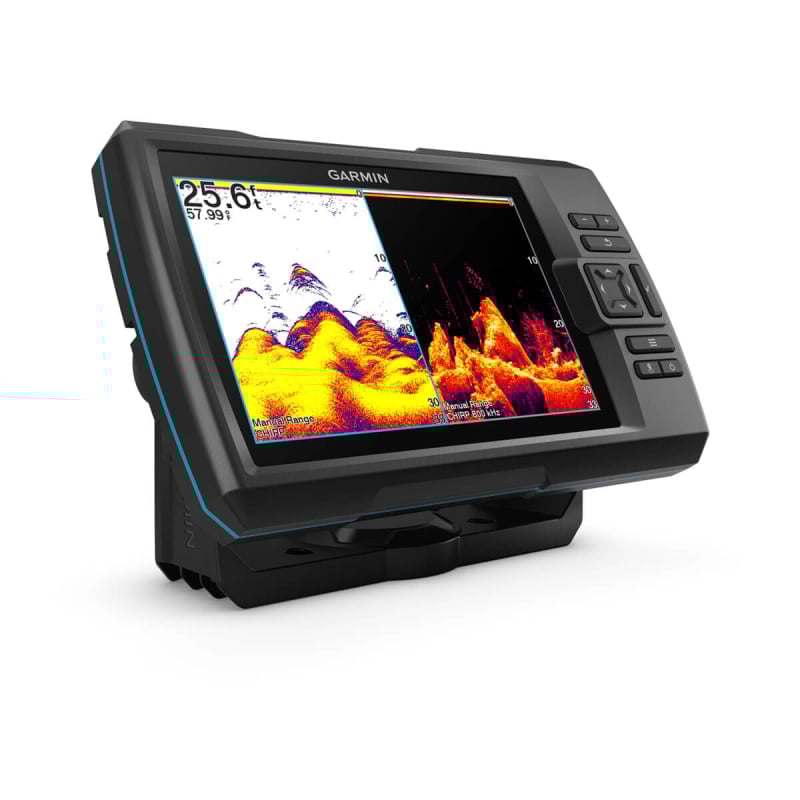

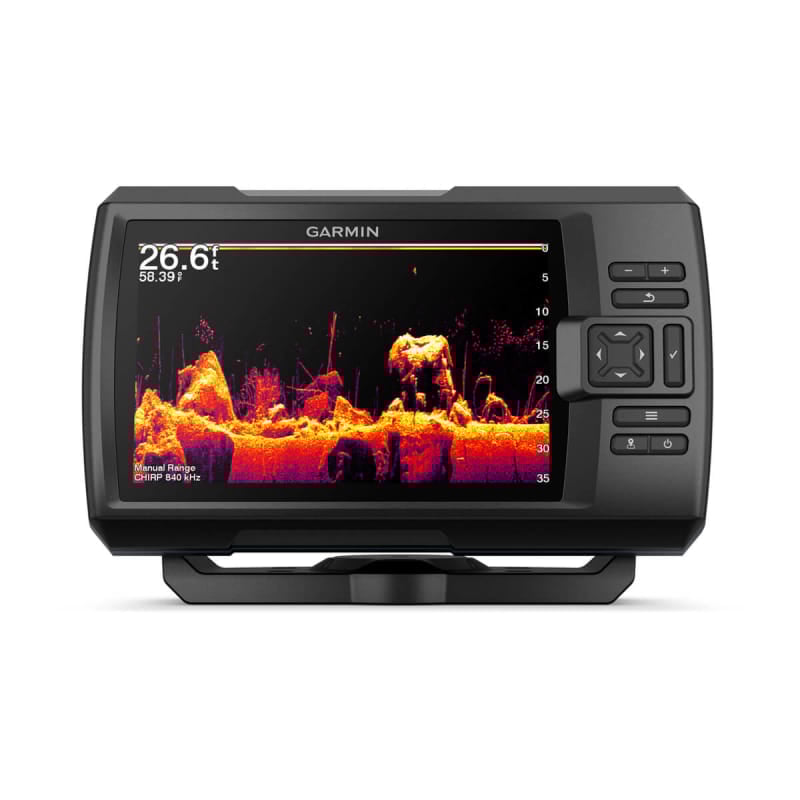

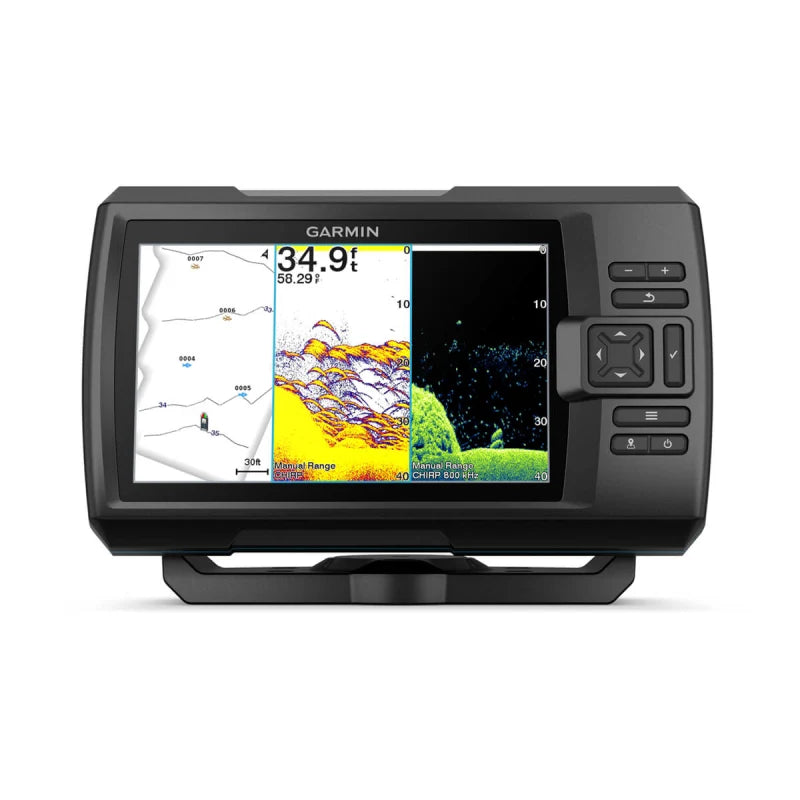

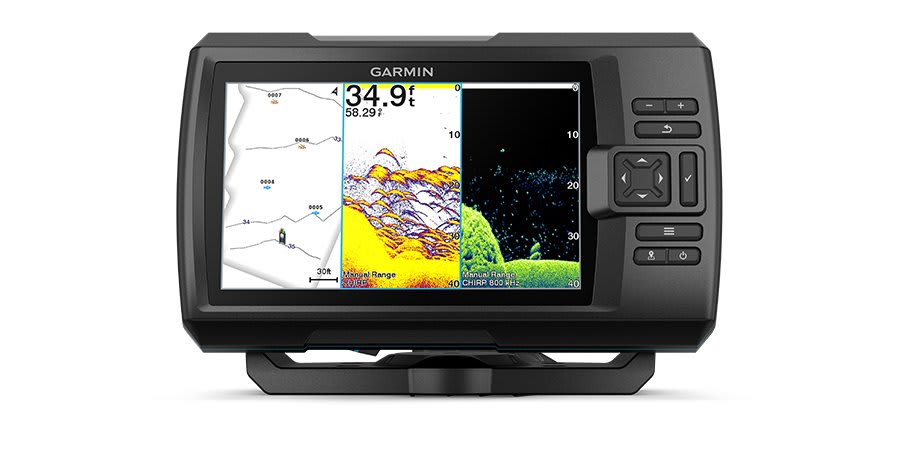

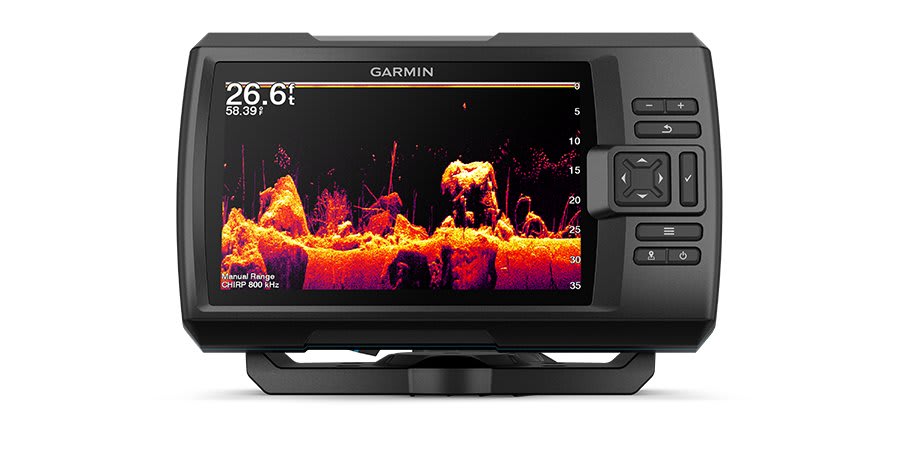

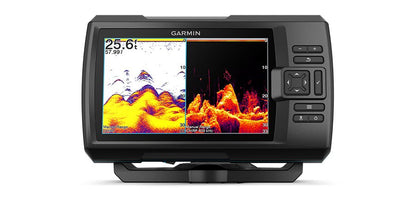

STRIKER™ VIVID 7cv: 7-inch ClearVü™ Fishfinder with GPS
The Garmin STRIKER Vivid 7cv is a versatile and reliable unit that provides crystal-clear viewing on a large 7-inch display. This unit features high-resolution **CHIRP Traditional Sonar** combined with detailed **ClearVü™ scanning**—a powerful pairing for identifying structure and fish directly beneath your boat. It comes packaged with the proven **GT20-TM Transducer** , offering outstanding performance for inshore and coastal fishing.
CLEAR VIEW SONAR TECHNOLOGY
The STRIKER Vivid 7cv enhances your underwater view using **7 new vivid color options** that maximize contrast. This allows for easier differentiation between bait, fish arches, and submerged structure on the 7-inch sunlight-readable screen.
KEY SONAR FEATURES (GT20-TM INCLUDED)

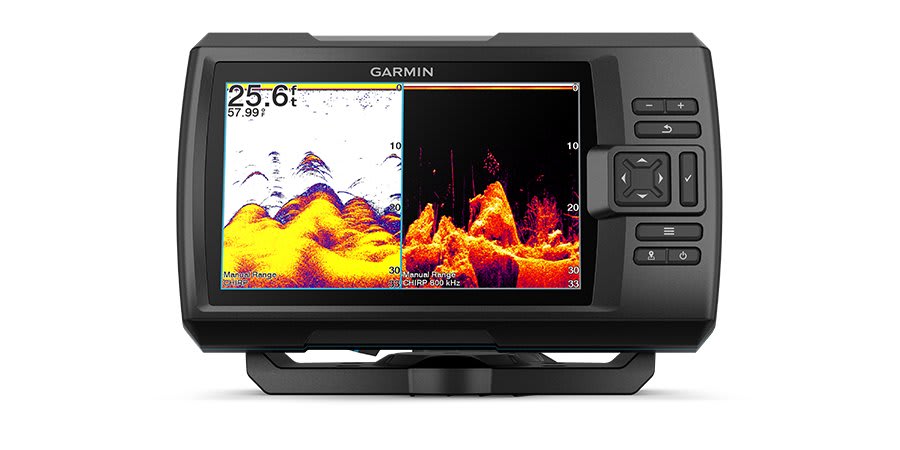

- Garmin CHIRP Traditional Sonar: Provides superior target separation and crisp, clear fish arches.

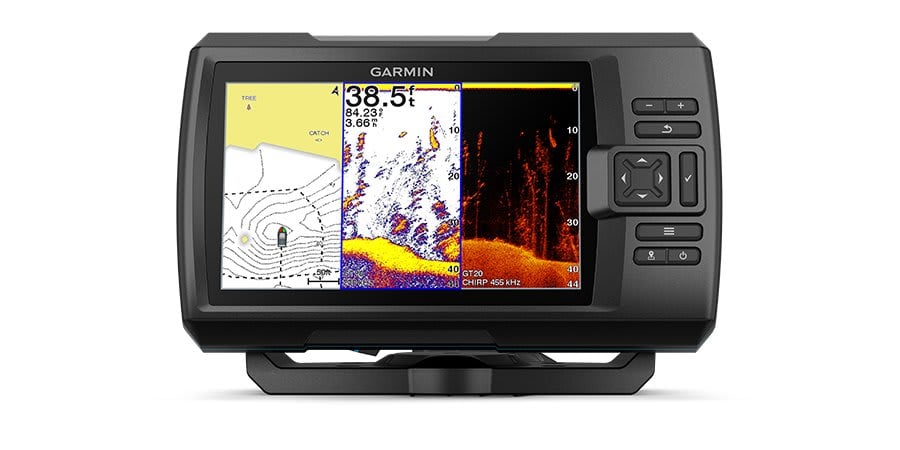

- ClearVü™ Scanning Sonar: Delivers high-frequency, near-photographic imagery of objects and bait directly below your vessel.

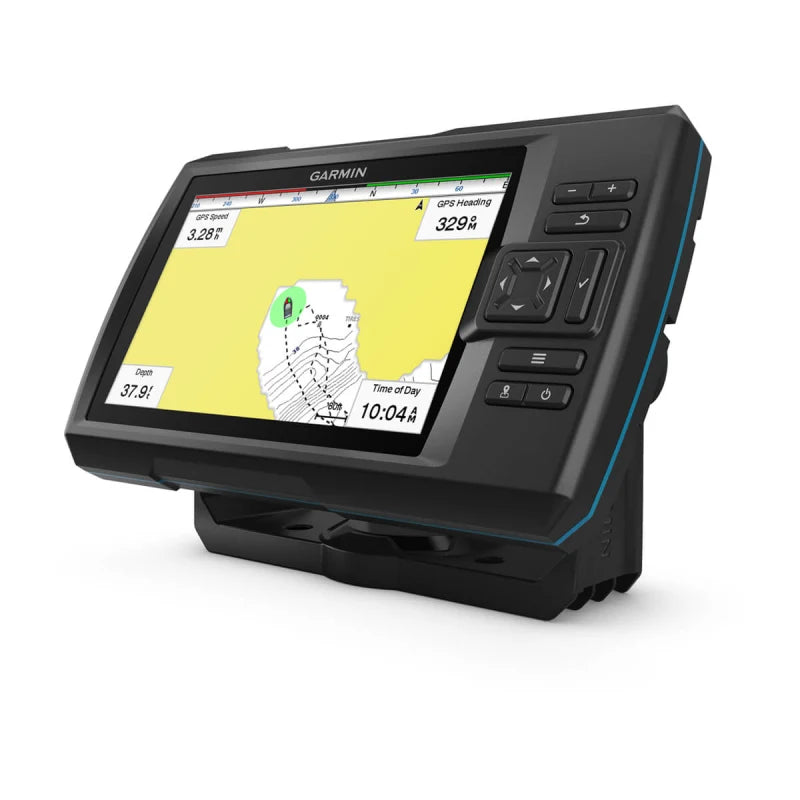

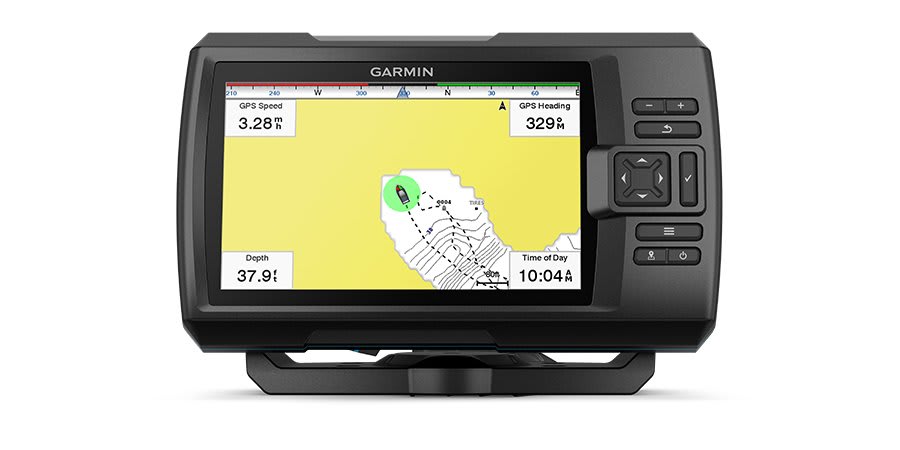

- High-Sensitivity GPS: Mark productive waypoints and quickly navigate back to your hot spots. Plan and create custom routes using the integrated GPS.
CUSTOM MAPPING & CONNECTIVITY
The unit provides advanced mapping and sharing capabilities via its built-in Wi-Fi®:
- Quickdraw™ Contours: Easily create and store up to 2 million acres of custom **1-foot (0.3m) contour maps** of any body of water.

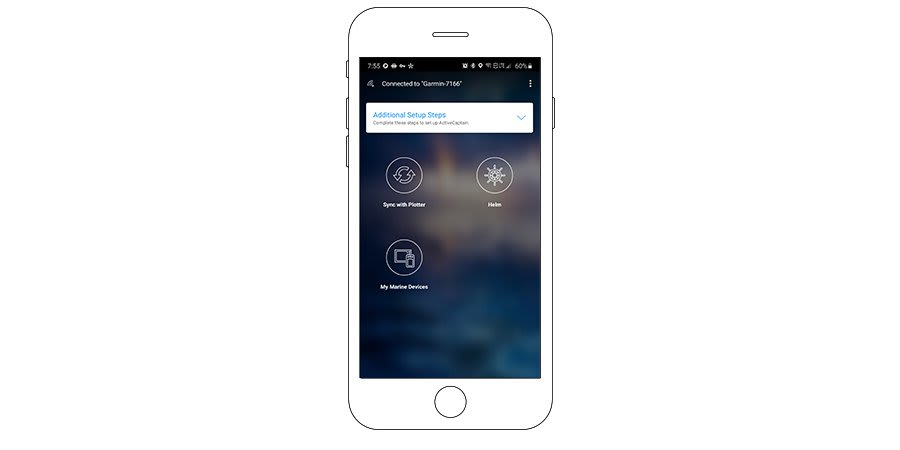

- Wi-Fi® Connectivity: Connect to the ActiveCaptain® app for automatic software updates, smart notifications, and access to shared map data via the Garmin Quickdraw™ Community.
Inverell Boating Centre Expert Note:
This 7cv model offers excellent value and screen real estate for ClearVü applications. Note that this unit is optimized for the included **GT20-TM (ClearVü/Traditional)** and does not include SideVü capability. Purchase includes full **Authorized Garmin Dealer** support and Australian warranty coverage.
Specification in detail
Specification in detail
General & Physical
DIMENSIONS: 9.3” x 5.5” x 2.3” (23.5 x 14.0 x 5.8 cm)
WEIGHT: 1.7 lbs (0.8 kg)
WATER RATING: IPX7 (Submersible)
DISPLAY SIZE: 7.0" diag (17.8 cm)
DISPLAY RESOLUTION: 800 x 480 pixels
INPUT TYPE: Keyed

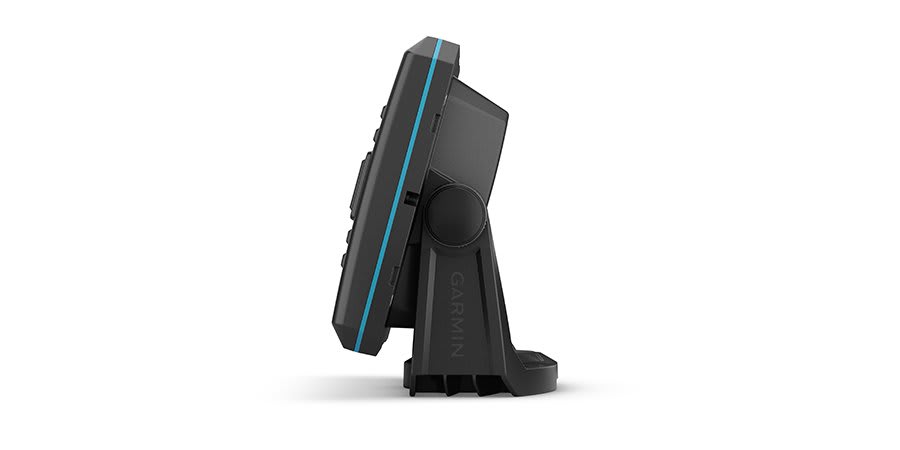

MOUNTING OPTIONS: Flush, Tilt/Swivel
Sonar Capabilities
SONAR TYPES: Traditional CHIRP, ClearVü™
TRANSDUCER INCLUDED: GT20-TM
TRANSMIT POWER: 500 W (RMS)
TRADITIONAL FREQUENCY: 77/200 kHz CHIRP (mid and high)
SCANNING FREQUENCY: ClearVü: 455/800 kHz
BOTTOM LOCK: Shows return from the bottom up
WATER TEMPERATURE LOG: Yes
Navigation & Memory
WAYPOINTS / FAVORITES: 5,000
TRACK POINTS: 50,000
NAVIGATION ROUTES: 100
GPS / MAPPING: Integrated GPS Receiver, Garmin Quickdraw™ Contours
WAAS SUPPORT: Yes
Power & Connections
POWER INPUT: 12 to 20 Vdc
TYPICAL CURRENT DRAW: 0.55 A @ 12V
MAX CURRENT DRAW: 1.5 A
POWER CONSUMPTION: 6.6 W

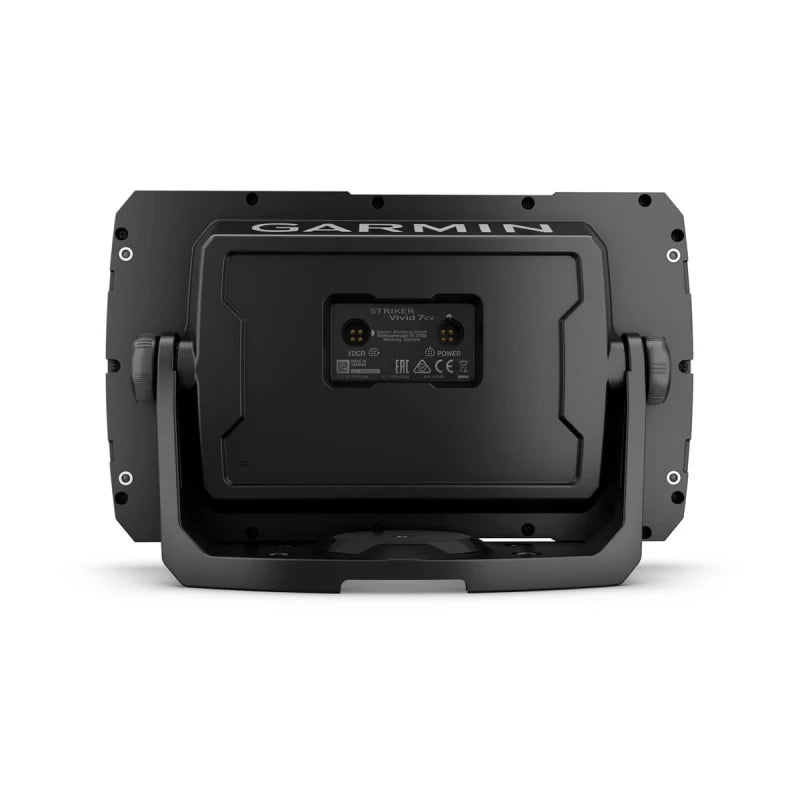

TRANSDUCER PORTS: 1 (4-pin ClearVü/Traditional)
WIRELESS CONNECTIVITY: Built-in Wi-Fi® (ActiveCaptain® App)
Inverell Boating Centre Technical Summary: The STRIKER Vivid 7cv is a lightweight and power-efficient unit, drawing only 0.55A typically. Note that the simplified **one-port** connection is optimized specifically for the included GT20-TM transducer.
