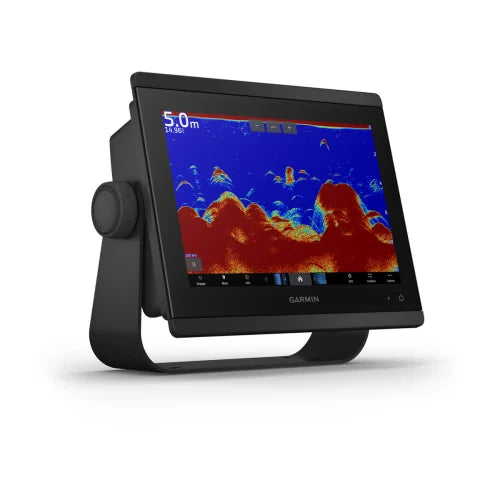

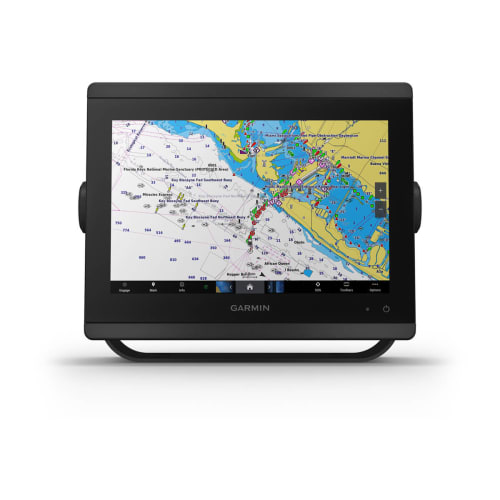

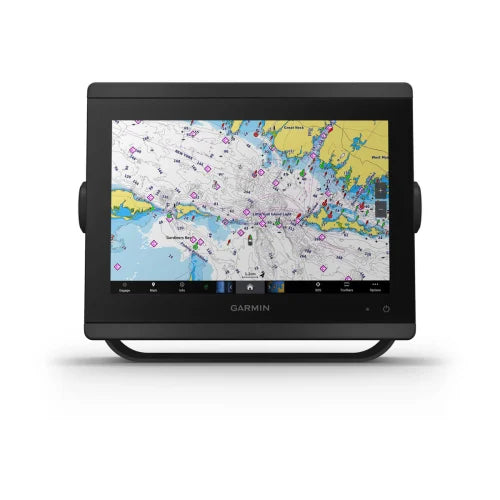

    GPSMAP® 8410xsv: 10-inch FHD IPS Chartplotter/Sonar Combo (1kW Built-in)

    The GPSMAP® 8410xsv delivers powerful Multi-Function Display (MFD) performance in a compact, 10-inch package. Designed for the serious angler, this unit features a crisp **WUXGA (1920 x 1200) IPS touchscreen** that provides superior clarity and sunlight readability, even with polarized sunglasses. The 'xsv' designation confirms its powerful built-in sonar capabilities, including support for **1kW Dual-Channel CHIRP** and high-resolution scanning sonars, making it an excellent standalone command center for complex systems.


    BUILT-IN SONAR POWER & HIGH-RESOLUTION DISPLAY

    The 8410xsv streamlines your helm by integrating a powerful sonar processor, offering professional-grade support without the need for an external traditional sonar black box.

    KEY SONAR & DISPLAY FEATURES

    • 1 kW Dual-Channel CHIRP: Built-in support for 1-kW Traditional CHIRP sonar (L, M, H CHIRP) for superior target separation in deep and shallow water (transducer sold separately).

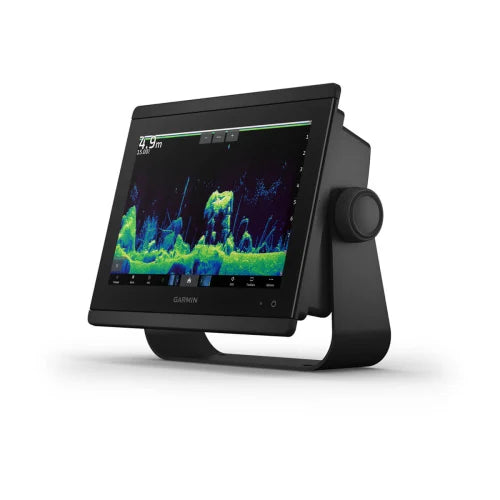

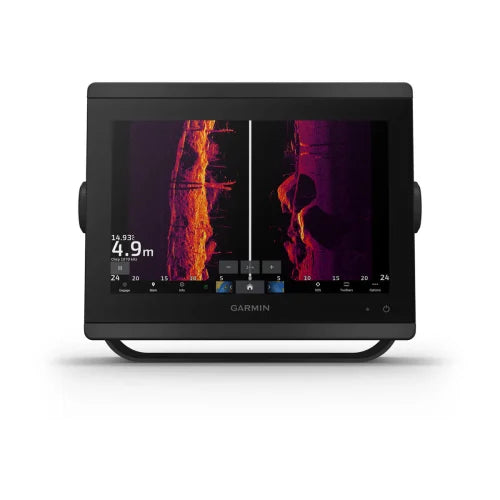

    • Scanning Sonar Support: Built-in support for ClearVü and SideVü scanning sonars, providing high-resolution, photo-like images of structure and fish around your boat.
    • LiveScope™ Ready: Fully compatible with the entire lineup of Panoptix™ and Panoptix LiveScope™ easy-to-interpret live sonar (transducers sold separately). [1]
    • WUXGA IPS Touchscreen: The 1920 x 1200 resolution IPS display provides superior clarity and vibrancy, crucial for managing complex navigation and sonar data.

    COMPLETE VESSEL NETWORKING & CONTROL

    The 8410xsv is designed for seamless network integration and comprehensive vessel management, featuring dual Garmin Network Ports:

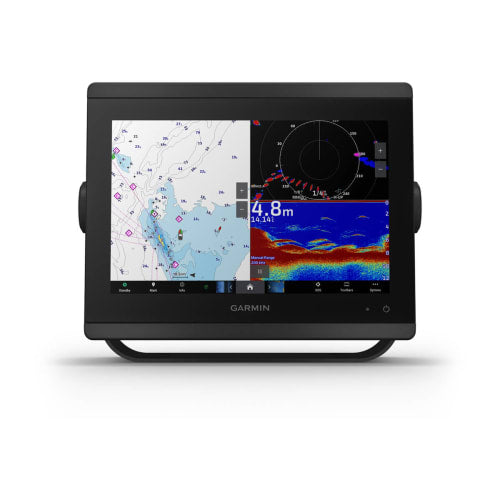

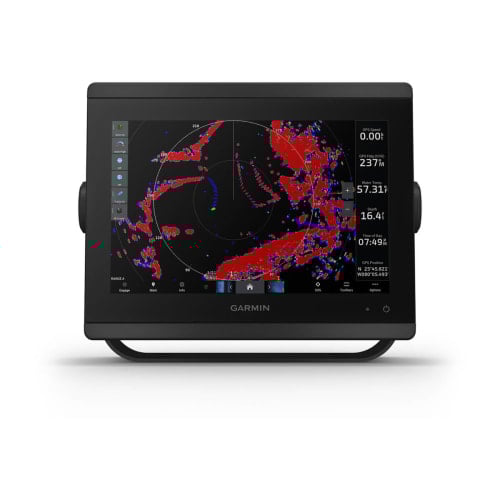

    • Garmin Marine Network: Features **two network ports** to share maps, sonar, radar, and IP camera video among multiple compatible Garmin devices.
    • Digital Switching (OneHelm™): Integrates operations of third-party devices, such as digital switching and Power-Pole® integration, onto one single display.
    • Wireless Connectivity: Integrated Wi-Fi® and ANT® technologies allow connectivity to compatible devices like the GRID™ 20 remote control and inReach® satellite communicators.

    Inverell Boating Centre Expert Note:

    The 8410xsv is a premium MFD combo, differentiated by its high-resolution WUXGA (1920x1200) IPS display and efficient typical current draw (1.5A). Its built-in 1kW sonar processor and dual Garmin Network Ports confirm its capability as a robust, scalable hub for high-end systems in limited dash space.

    Specification in detail

    General & Display


    DIMENSIONS: 10.25" x 8.0625" x 2.95" (25.9 cm x 20.5 cm x 7.5 cm)

    WEIGHT: 5.2 lbs (2.4 kg)

    WATER RATING: IPX7 (Submersible)

    DISPLAY TYPE: WUXGA, IPS Touchscreen

    DISPLAY SIZE: 10.1″ diagonal (25.7 cm)

    DISPLAY RESOLUTION: 1920 x 1200 pixels

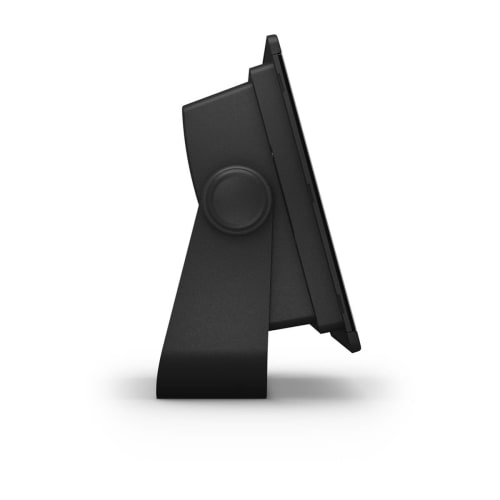

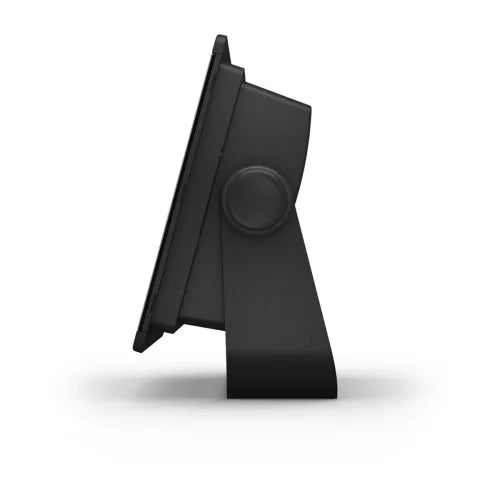

    MOUNTING OPTIONS: Bail, Flat, or Flush

    POLARIZED LENS VIEWABILITY: Yes

    Sonar Capabilities (Built-in)


    TRADITIONAL SONAR: Built-in 1kW Dual-Channel CHIRP

    CLEARVÜ / SIDEVÜ: Built-in 260/455/800/1000/1200 kHz

    LIVESCOPE SUPPORT: Yes (Requires external transducer/black box)

    POWER OUTPUT: 1 kW

    Navigation & Memory


    GPS RECEIVER: 10 Hz (GPS, GLONASS, GALILEO)

    WAYPOINTS / TRACK POINTS: 5,000 / 50,000

    DATA CARDS: Accepts 2 microSD cards

    MAPPING SUPPORT: Garmin Navionics+™ / Vision+™, BlueChart G3, Quickdraw Contours

    WAAS SUPPORT: Yes

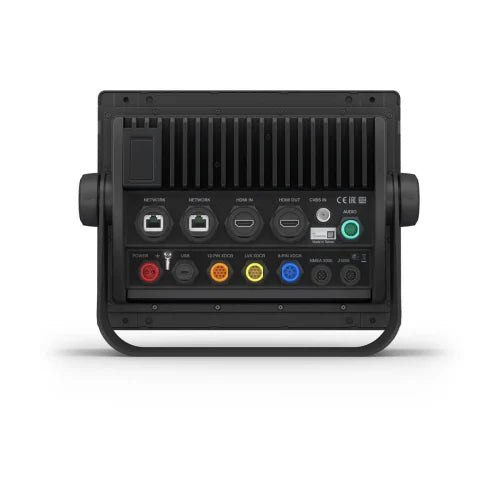

    Connectivity & Electrical


    GARMIN MARINE NETWORK PORTS: 2

    NMEA 2000® PORTS: 1

    TRANSDUCER PORTS: 1 (8-pin), 1 (12-pin scanning sonar)

    VIDEO PORTS: 1 Composite In (BNC), 1 HDMI In, 1 HDMI Out

    J1939 PORTS: 1

    TYPICAL CURRENT DRAW: 1.5 A @ 12 Vdc

    MAXIMUM POWER USAGE: 40.1 W

    WIRELESS CONNECTIVITY: Wi-Fi® and ANT®


    Inverell Boating Centre Technical Summary: The GPSMAP 8410xsv is a high-resolution 10-inch MFD combo, featuring a built-in 1kW sonar processor and a high-resolution WUXGA IPS display. Its dual Garmin Network Ports and robust video connectivity (HDMI In/Out) make it ideal for flexible helm configurations and networking multiple displays.
