GPSMAP® 9019: 19-inch Premium 4K Chartplotter with Garmin BlueNet™ Network
The GPSMAP® 9019 is the industry's first integrated 4K resolution touchscreen chartplotter, designed for seamless integration into a modern glass helm. This premium 19-inch display provides **edge-to-edge clarity and luxury** with processing power up to seven times faster than previous generations. It forms the core of a top-of-the-line ecosystem, leveraging **Gigabit speeds on the Garmin BlueNet™ Network** for unparalleled speed and connectivity.
4K CLARITY, GIGABIT SPEED, AND CONTROL
The GPSMAP 9019 delivers speed, detail, and superior control necessary for professional and high-end recreational vessels.
KEY PREMIUM FEATURES

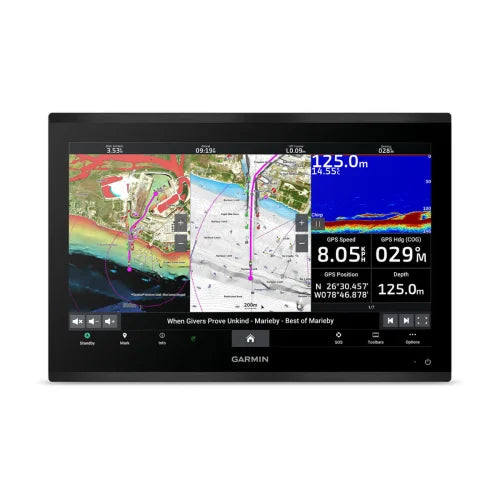

- Premium 4K IPS Display: Stunning 4K resolution on an edge-to-edge IPS display ensures exceptional clarity and sunlight readability, even for sonar targets viewed via compatible black boxes. [1]

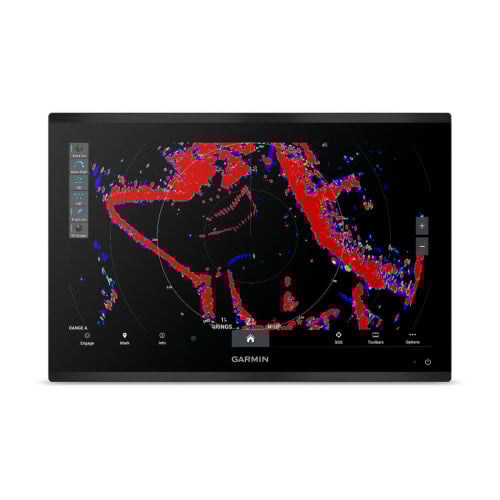

- Garmin BlueNet™ Network: Provides 10 times faster networking speeds than previous generations, essential for large systems utilizing multiple radars, cameras, and sonar modules.

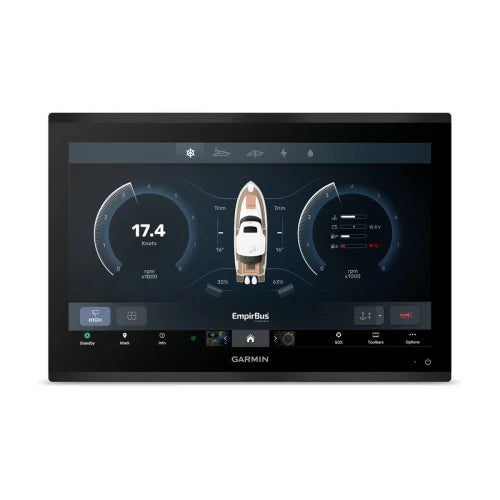

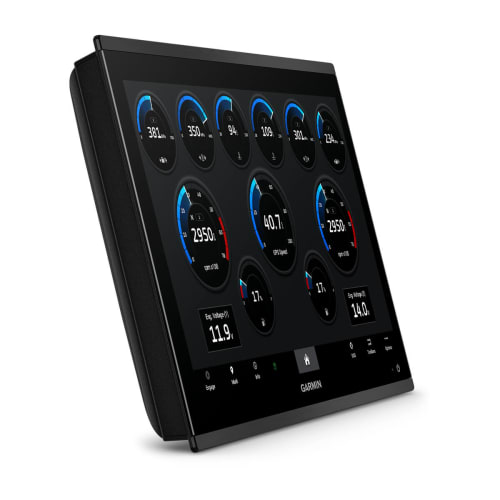

- Advanced Integration: Full digital integration capabilities, including engine monitoring, camera support (Surround View System), and control via compatible Garmin smartwatches.
NETWORKING AND CONTROL ECOSYSTEM

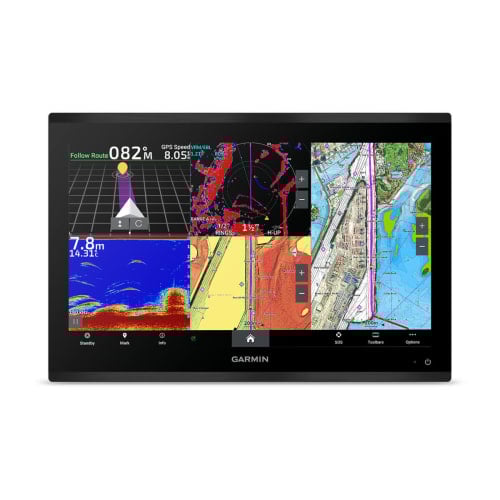

The 9019 is the ultimate hub, designed to connect and control every facet of your vessel:

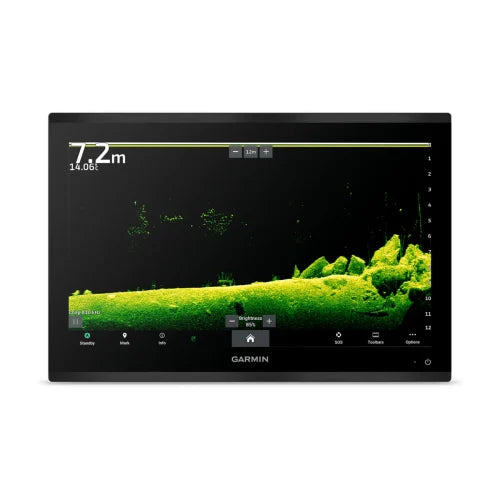

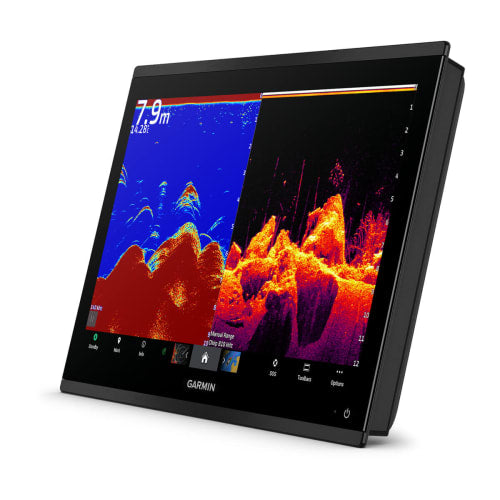

- High-Definition Sonar Support: Supports high-definition sonar targets via external sonar modules (GSD™ [2], GCV™, LiveScope™ [2]) which are viewed in stunning detail on the 4K screen.

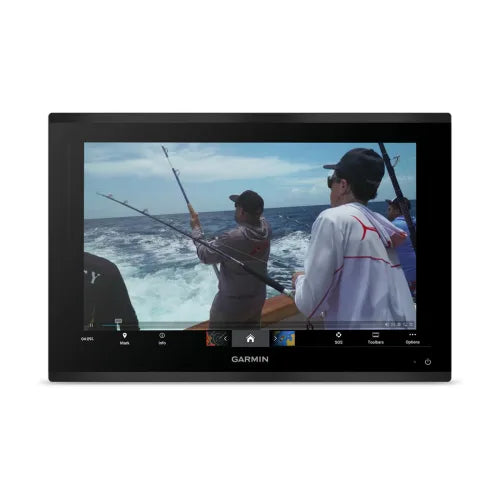

- Video Integration: Features two HDMI inputs (HDCP compliant) and one HDMI output for comprehensive audio/video integration across your network.

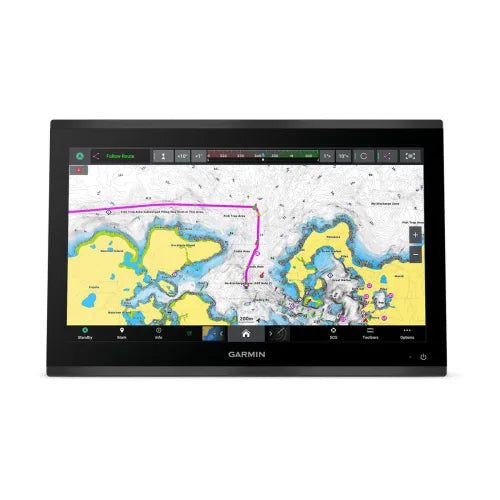

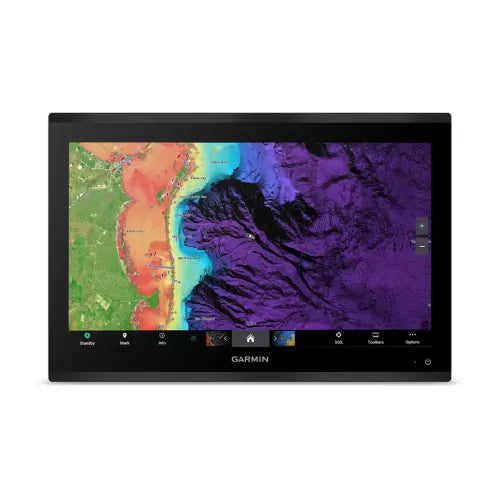

- Mapping: Supports optional Garmin Navionics+™ and Garmin Navionics Vision+™ charts, including lightning-fast Auto Guidance+™ route calculation.
Inverell Boating Centre Expert Note:
The GPSMAP 9019 represents the highest level of marine technology. With **four Garmin BlueNet ports**, **dual USB-C ports**, and **multiple HDMI connections**, this MFD is built to command large, complex networks. Its typical current draw of 4.6A reflects the immense processing power required to drive the 4K display and manage gigabit network speeds.
Specification in detail
Specification in detail
General & Display
DIMENSIONS: 18.0″ x 12.0″ x 2.7″ (45.7 cm x 30.5 cm x 6.9 cm)
WEIGHT: 6.42 kg
WATER RATING: IPX7 (Submersible)
DISPLAY TYPE: 4K, IPS Touchscreen
DISPLAY SIZE: 18.5″ diagonal (46.9 cm)
DISPLAY RESOLUTION: 3840 x 2160 pixels (4K)
INPUT TYPE: Touchscreen
MOUNTING OPTIONS: Flush or Flat
Sonar & Mapping
SONAR SUPPORT: Traditional, ClearVü, SideVü, Panoptix™, LiveScope™ (requires compatible black box)
POWER OUTPUT: 60 W (Max System Power)
CHART SUPPORT: Garmin Navionics+™ / Garmin Navionics Vision+™
AUTO GUIDANCE: Auto Guidance+™ (with subscription)

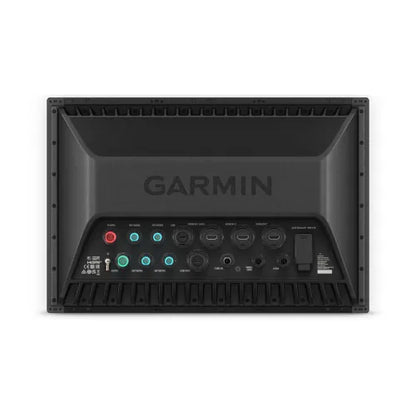

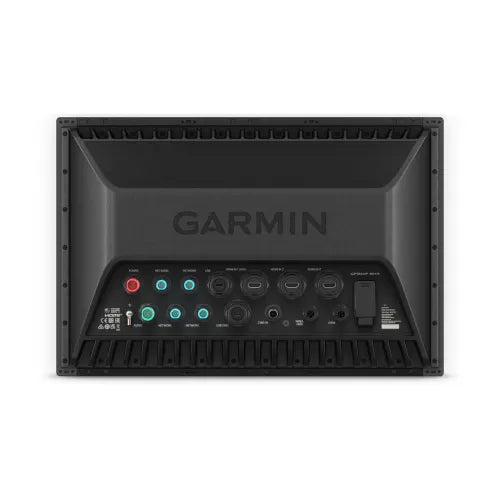

Networking & Electrical
GARMIN BLUENET™ PORTS: 4
NMEA 2000® PORTS: 1
NMEA 0183 PORTS: 1 Rx, 1 Tx
VIDEO PORTS: 1 BNC Composite In, 2 HDMI In, 1 HDMI Out
POWER INPUT: 10 to 35 Vdc
TYPICAL CURRENT DRAW: 4.6 A @ 12 Vdc
MAXIMUM POWER USAGE: 60 W @ 10 Vdc
USB PORTS: 2 (USB-C)
Inverell Boating Centre Technical Summary: The GPSMAP 9019 is a true professional MFD, defined by its 4K resolution (3840x2160) and exceptional connectivity. The four Garmin BlueNet ports enable gigabit networking speeds for high-volume data transfer from compatible radars and sonar modules, making it the fastest and most capable display in the lineup.
