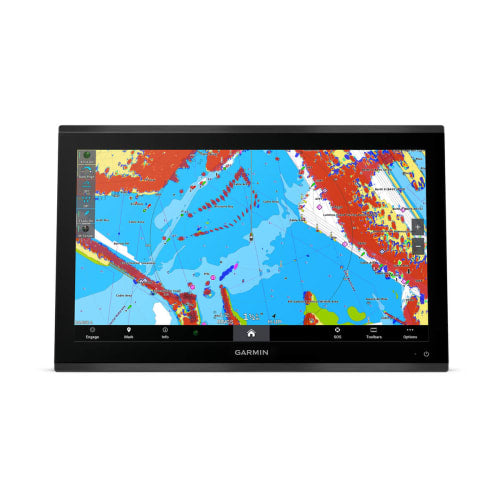

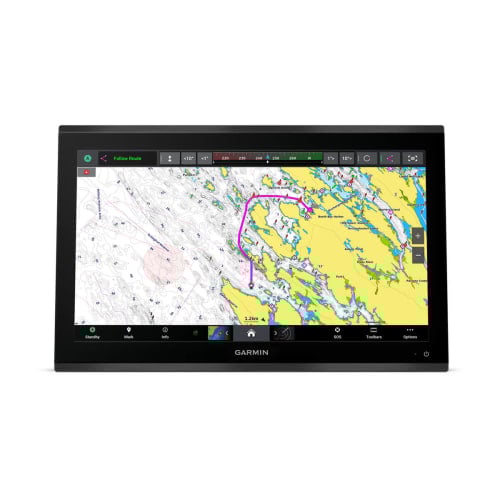

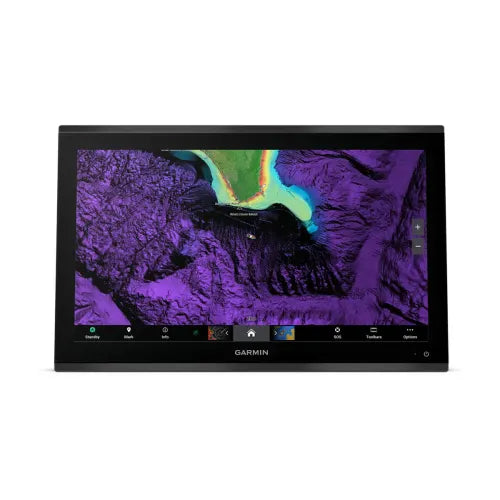

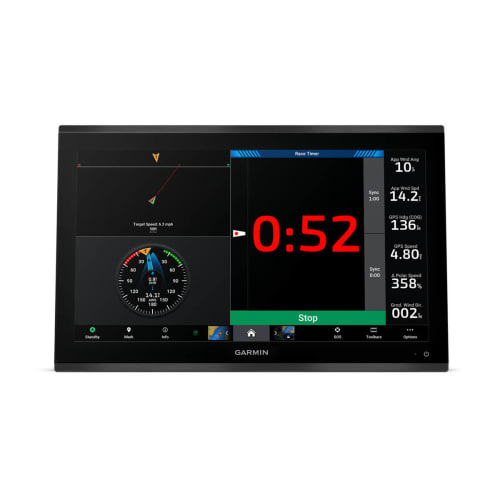

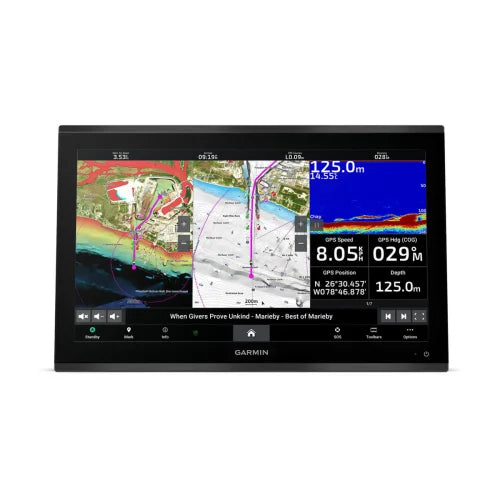

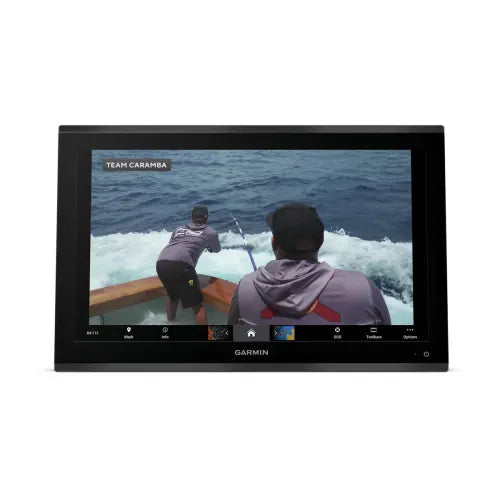

GPSMAP® 9022: 22-inch Premium 4K Chartplotter with Garmin BlueNet™ Network
The GPSMAP® 9022 is a revolutionary 22-inch integrated 4K resolution touchscreen chartplotter, offering **edge-to-edge clarity and luxury** for the most sophisticated helm designs. This MFD features processing power up to **seven times faster** than previous generations and utilizes **Gigabit speeds on the Garmin BlueNet™ Network** to build the most extensive, top-of-the-line electronics ecosystem on the water. It provides seamless control, unparalleled speed, and video integration capability.
4K DISPLAY, GIGABIT NETWORKING, AND HIGH-SPEED CONTROL
Designed for captains who demand the absolute best, the GPSMAP 9022 delivers superior performance across all navigation, sonar, and monitoring functions.
KEY PREMIUM FEATURES

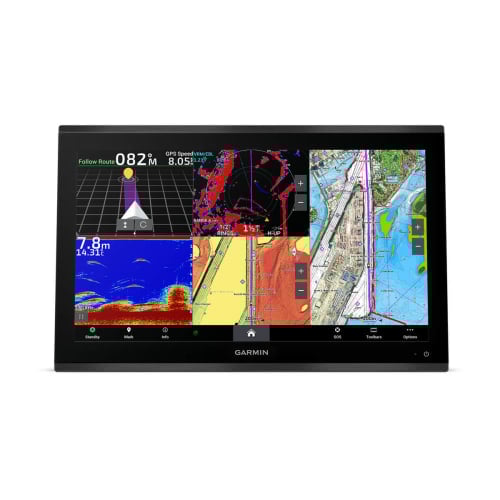

- 4K IPS Display: The sunlight-readable, 4K resolution IPS touchscreen provides exceptional clarity for viewing charts, high-definition radar, and sonar targets.
- Garmin BlueNet™: Allows you to build extensive networks with multiple chartplotters, cameras, and sonar black boxes [1], enjoying **10 times faster networking speeds** with minimal lag.

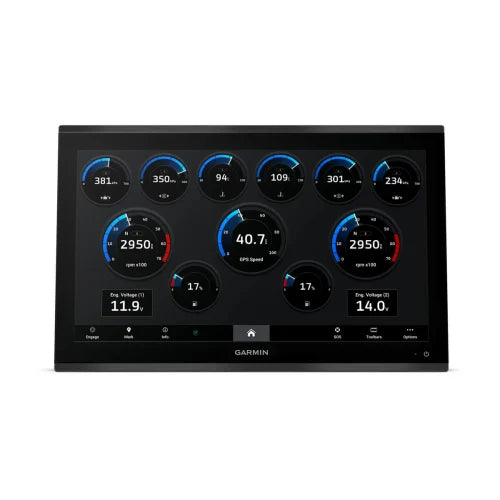

- Digital System Integration: Take command through digital integrations to monitor engine performance, automate systems, and control your vessel's entire ecosystem.
ADVANCED CONNECTIVITY AND MULTIMEDIA
The 9022 is built to serve as the multimedia and control hub for the vessel:

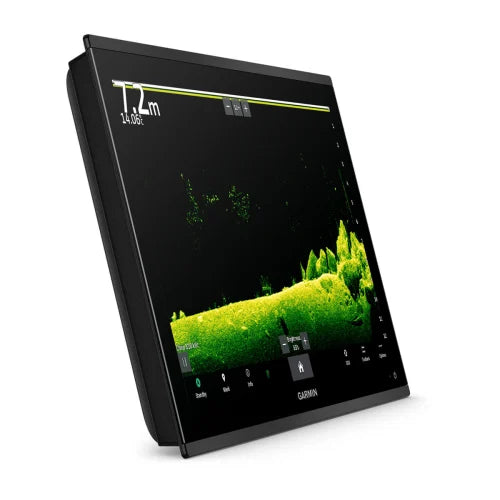

- Sonar Support: Supports high-definition traditional, ClearVü, SideVü, Panoptix™, and LiveScope™ sonar via compatible external black box modules (GSD™ [1], GCV™).

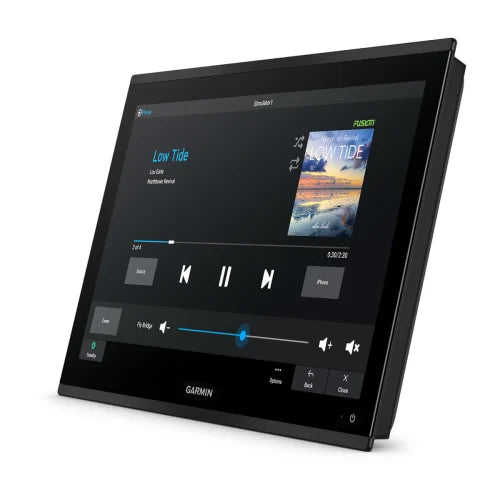

- Video & Audio: Features two HDMI inputs (HDCP compliant) and one HDMI output, plus dedicated Audio Output, allowing seamless video and Fusion-Link™ audio integration.
- GPS: Uses a 10 Hz receiver with multi-band, multi-constellation support for precise location anywhere on the water.
Inverell Boating Centre Expert Note:
The GPSMAP 9022 is designed for the largest and most demanding helms. With **four Garmin BlueNet ports** and a typical current draw of 5.2A, it provides the necessary power and throughput to run high-volume data devices (like Fantom Radar and multiple sonar sources) simultaneously, ensuring zero-compromise performance.
Specification in detail
Specification in detail
General & Display
DIMENSIONS: 20.8″ x 13.6″ x 2.7″ (52.9 cm x 34.6 cm x 6.9 cm)
WEIGHT: 7.96 kg
WATER RATING: IPX7 (Submersible)
DISPLAY TYPE: 4K, IPS Touchscreen
DISPLAY SIZE: 21.5″ diagonal (54.5 cm)
DISPLAY RESOLUTION: 3840 x 2160 pixels (4K)
INPUT TYPE: Touchscreen
MOUNTING OPTIONS: Flush or Flat
Sonar & Mapping
SONAR SUPPORT: Traditional, ClearVü, SideVü, Panoptix™, LiveScope™ (requires compatible black box)
POWER OUTPUT: 68 W (Max System Power)
CHART SUPPORT: Garmin Navionics+™ / Garmin Navionics Vision+™
WAYPOINTS / TRACKS / ROUTES: 5,000 / 50 Saved Tracks / 100

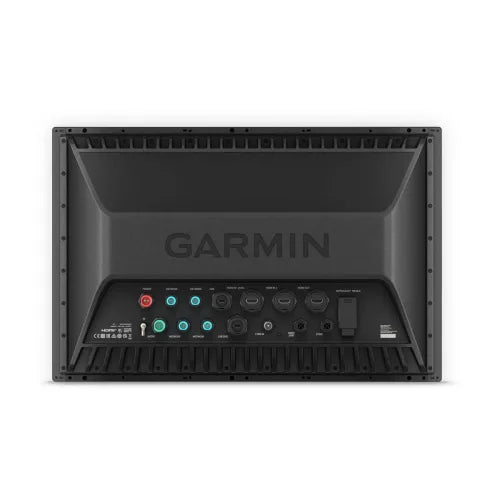

Networking & Electrical
GARMIN BLUENET™ PORTS: 4
NMEA 2000® PORTS: 1
NMEA 0183 PORTS: 1 Rx, 1 Tx
VIDEO PORTS: 1 BNC Composite In, 2 HDMI In, 1 HDMI Out
J1939 PORTS: 1
POWER INPUT: 10 to 35 Vdc
TYPICAL CURRENT DRAW: 5.2 A @ 12 Vdc
MAXIMUM POWER USAGE: 68 W
USB PORTS: 2 (USB-C)
Inverell Boating Centre Technical Summary: The GPSMAP 9022 features a massive 22-inch 4K resolution display and is engineered for professional command. The four Garmin BlueNet ports facilitate the highest level of network integration and data speed, consuming a typical current of 5.2A to power its immense processing capability.
Warranty / Availability of Repair Facilities & Parts
Warranty / Availability of Repair Facilities & Parts
AU Warranty / Availability of Repair Facilities & Parts
Garmin Warranty / Availability of Repair Facilities & Parts
On this page, Garmin customers in Australia will find detailed warranty information; information regarding availability of repair facilities and parts including for out-of-warranty service; other important details regarding repair or replacement of a Garmin product; and how to contact Inverell Boating Centre for further information.
On this page
- Limited Warranty
- Availability of Repair Facilities & Parts (Out of Warranty)
- Repair or Replacement of a Garmin Product
- Additional Resources
- Contact for Further Information
Limited Warranty
This warranty is provided by Garmin Australasia Pty Ltd.
Application of Australian Consumer Guarantees
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.
The benefits under this Limited Warranty are in addition to other rights and remedies under applicable law. Phone: 0417 159 205.
One-Year Consumer Products Limited Warranty
Non-aviation products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Garmin Australasia will, at its sole option, repair or replace any components that fail in normal use at no charge for parts or labour (customer responsible for transportation).
Warranty Exclusions
- Cosmetic damage such as scratches, nicks, and dents.
- Consumable parts (batteries, etc.) unless damage occurs due to defects in materials or workmanship.
- Damage from accident, abuse, misuse, water, fire, or external causes.
- Service by non-authorised providers.
- Modifications or altered units without written permission.
- Damage caused by non-Garmin cables or accessories.
Garmin reserves the right to refuse warranty claims for products obtained or used in contravention of local laws. Map accuracy and completeness are not guaranteed.
Warranty Process
- Contact Inverell Boating Centre Support to request an RMA number.
Email: inverellboatingcentre.cwa@gmail.com
Phone: 0417 159 205
Provide your unit serial number, return address, and contact number.
- Ship the unit with RMA number to Garmin or Inverell Boating Centre.
INVERELL BOATING CENTRE
Attn: Warranty / Returns:
10a Swanbrook Rd,
Inverell NSW 2360,
Australia
Availability of Repair Facilities & Parts (Out of Warranty)
Garmin products include complex integrated components. Repairs of parts such as cracked screens or integrated bands may not be possible outside Garmin factory conditions. Therefore, facilities or spare parts may not always be available for repair of such components.
Where an out-of-warranty service is required, Garmin Australasia or INVERELL BOATING CENTRE may offer to sell a replacement unit or Garmin Refurbished product. This applies only to out-of-warranty service and not to consumer guarantees under the Australian Consumer Law.
Repair or Replacement of a Garmin Product
Australian Consumer Law Notice:
- Repair or replacement of goods capable of retaining user data may result in loss of that data.
- Goods presented for repair may be replaced with refurbished goods of the same type rather than repaired. Refurbished parts may be used to repair goods.
Additional Resources
- Parallel imports: accc.gov.au/buying-parallel-imports
- Proof of purchase: accc.gov.au/receipts-proof-of-purchase
- Identifying genuine business: accc.gov.au/identifying-a-genuine-business
Contact for Further Information
For all warranty or out-of-warranty enquiries, please contact:
INVERELL BOATING CENTRE
www.inverellboatingcentre.com
10a Swanbrook Rd, Inverell NSW 2360, Australia
Phone: 0417 159 205
