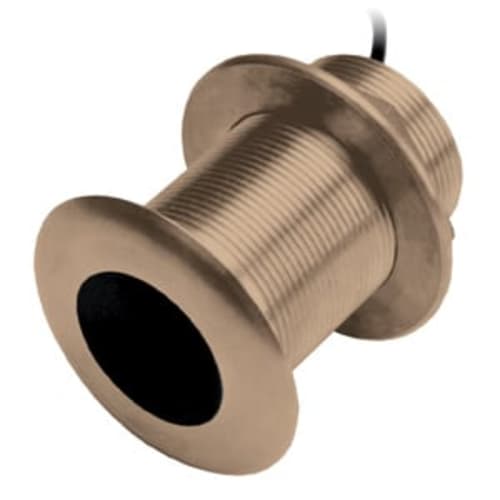

AIRMAR® B150M (0° Tilt): Entry-Level CHIRP Thru-Hull Transducer (300W)
The AIRMAR® B150M (0° tilt) is an excellent entry-level **CHIRP thru-hull solution** designed for fishing and cruising boats that require good depth capability and target separation. This 8-pin bronze unit features **300 W Mid-Band CHIRP Traditional Sonar (95–155 kHz)**. It provides reliable depth returns up to **600 feet (183 meters)**. The **0° tilt version** is engineered for optimal performance on hulls with **0 to 7 degrees of deadrise**, offering stable readings without the need for a fairing block.
CHIRP CLARITY & BRONZE DURABILITY
The B150M utilizes CHIRP technology to deliver better target resolution, clarity, and crispness than standard fixed-frequency sonar systems.
KEY SONAR & INSTALLATION FEATURES
- Mid-Band CHIRP: Operates in the 95–155 kHz frequency band, providing good depth capability and target separation up to **600 feet**.
- Wide Coverage: Features **26°/17° beamwidths** for ample coverage under the boat.
- 0° Tilt Thru-Hull: Designed for straightforward thru-hull mounting on fiberglass, composite, and wood hulls with **0°–7° deadrise**.
- Bronze Housing: Durable bronze construction provides long-term reliability beneath the waterline (Do not use on metal hulls).
CONNECTIVITY AND INSTALLATION
The B150M utilizes the standard 8-pin connector for power and data output.
- **8-Pin Connector:** Uses the 8-pin connector for power and traditional sonar data output.
- **Cable Length:** Includes a robust **39-foot cable** for routing through mid-size vessels.
Inverell Boating Centre Expert Note:
The B
Specification in detail
Specification in detail
General & Physical
PART NUMBER: 010-11927-20
HOUSING MATERIAL: Bronze
INSTALLATION: Thru-Hull
CABLE LENGTH: 39 ft (11.9 m)
SUPPORTED DEADRISE: 0°–7° degree deadrise (0° Tilt)
Sonar Capabilities (Traditional Only)
NUMBER OF PINS: 8-pin
SONAR TYPE: Traditional CHIRP (Mid-Band)
TRADITIONAL POWER: 300 W
MAXIMUM DEPTH: 600 ft (183 m)
FREQUENCY: CHIRP Mid (95-155 kHz)
BEAMWIDTH: 26°/17°
DEPTH/SPEED/TEMPERATURE: Depth and Temperature
Inverell Boating Centre Technical Summary: The AIRMAR B150M (0°) is an excellent 300W CHIRP transducer for depths up to 600 ft. Its bronze thru-hull mounting (0° tilt) is critical for optimal performance on low deadrise hulls (0°-7°). It uses the 8-pin standard and is a dedicated Traditional Sonar unit.
