GLS™ 10 Sonar Module

GLS™ 10 Sonar Module

An error has occured. Please try again.

 Excellent 4.8 | 1,452 reviews
Regular price $899.00
Regular price $899.00 Sale price $989.00
Sold out
Ready to ship in 1–3 business days.
  • Apple Pay
  • Afterpay
  • American Express
  • Mastercard
  • Visa
  • PayPal
GLS™ 10 Sonar Module

GLS™ 10 Sonar Module

Regular price $899.00
Regular price $899.00 Sale price $989.00
SAVE 9% Sold out
  • files/2.1-min.png

    "Upgraded to the LiveScope Plus, and it’s a total game-changer. The detail is unreal — you can see fish flick their fins and move through structure in real time. Absolutely worth every cent."

    Mark H. – Queensland
  • files/2.1.1-min.png

    "The GLS 10 module connected perfectly with my GPSMAP 8410. Everything synced right away — no fuss, no errors. Clear readings and smooth live scanning even in rough water."

    Shane D. – Western Australia
  • files/2.1.2-min.png

    "This tech is insane — I can actually see fish moving towards my lure. The Panoptix system gives me total control offshore. Feels like having underwater radar."

    Emma L. – New South Wales

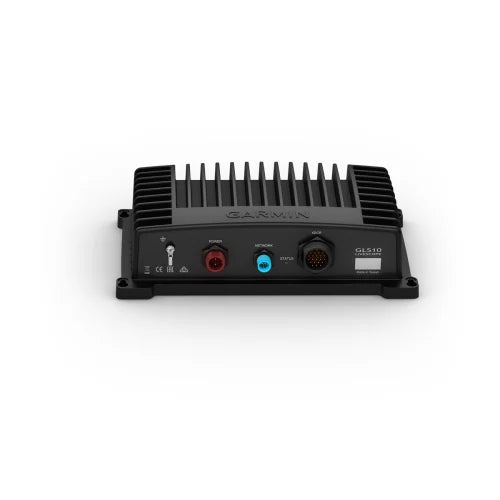

    GLS™ 10 SONAR MODULE: LiveScope & Panoptix Black Box

    The GLS™ 10 Sonar Module is the indispensable **Live Sonar Black Box** required to power and process data from Panoptix LiveScope™ and compatible LVS32/LVS34 transducers. This easy-to-install, networkable module allows you to add stunning, real-time scanning sonar to your compatible Garmin Chartplotter. It transmits up to **500 Watts** of power, revealing structure, bait, and fish swimming below and around your boat with incredible detail up to **61 meters (200 feet)**.


    LIVE, REAL-TIME SCANNING SONAR

    The GLS 10 is the processing heart of the LiveScope system, enabling two primary live-scanning modes (when paired with a transducer, such as the LVS32 model):

    LIVESCOPE SCANNING MODES

    • LiveScope Down: See live, easy-to-interpret scanning sonar images of structure and swimming fish in incredible detail directly below your boat—up to 200 feet—even while stationary.
    • LiveScope Forward: An excellent tool for scouting and fishing out ahead of your cast. See live, highly detailed scanning sonar images of fish swimming all around your boat—up to 200 feet—even while stationary.

    NETWORKING AND POWER EFFICIENCY

    This sonar module is built to seamlessly integrate into your existing Garmin Marine Network for multi-display functionality.

    • **Seamless Sharing:** Sonar images can be shared effortlessly across multiple networked chartplotters (e.g., GPSMAP or ECHOMAP series [1]).
    • **Efficiency:** Draws a low 21W typically, making it efficient for extended use on the water.

    Inverell Boating Centre Expert Note:

    The GLS 10 is the core LiveScope black box, delivering 500W of power and operating in the high-frequency range (530-1,100 kHz). It connects to your Chartplotter via the **single Garmin Marine Network port (small connector)** and is compatible with a wide range of LiveScope and Panoptix transducers. The power input range of 10–32 Vdc ensures robust operation.

    Specification in detail

    General & Physical


    DIMENSIONS: 9.6” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm)

    WEIGHT: 4.4 lbs (2.0 kg)

    WATER RATING: IPX7 (Submersible)

    OPERATING TEMPERATURE: From -15° C to 70° C

    Sonar Capabilities (Requires Transducer)


    SONAR TYPE: Panoptix LiveScope Scanning Sonar

    FREQUENCY: 530 – 1,100 kHz

    TRANSMIT POWER: 500 W

    MAXIMUM DEPTH: 200’ (61.0 m) (Down and Forward)

    Power & Connections


    POWER INPUT: 10-32 Vdc

    TYPICAL POWER USAGE: 21 W

    MAX POWER USAGE: 58 W

    FUSE REQUIREMENT: 7.5 A

    GARMIN MARINE NETWORK PORTS: 1 (Small Connector)


    Inverell Boating Centre Technical Summary: The GLS 10 is the core processor for LiveScope and Panoptix transducers. It is highly robust (IPX7, -15°C to 70°C operating temperature) and operates on a wide 10-32 Vdc power input. It requires a 7.5A fuse for its 500W transmission power and connects via a single Garmin Marine Network Port.

    Warranty / Availability of Repair Facilities & Parts

    AU Warranty / Availability of Repair Facilities & Parts

    Garmin Warranty / Availability of Repair Facilities & Parts


    On this page, Garmin customers in Australia will find detailed warranty information; information regarding availability of repair facilities and parts including for out-of-warranty service; other important details regarding repair or replacement of a Garmin product; and how to contact Inverell Boating Centre for further information.

    On this page


    Limited Warranty

    This warranty is provided by Garmin Australasia Pty Ltd.

    Application of Australian Consumer Guarantees


    Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

    The benefits under this Limited Warranty are in addition to other rights and remedies under applicable law. Phone: 0417 159 205.

    One-Year Consumer Products Limited Warranty


    Non-aviation products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Garmin Australasia will, at its sole option, repair or replace any components that fail in normal use at no charge for parts or labour (customer responsible for transportation).

    Warranty Exclusions

    • Cosmetic damage such as scratches, nicks, and dents.
    • Consumable parts (batteries, etc.) unless damage occurs due to defects in materials or workmanship.
    • Damage from accident, abuse, misuse, water, fire, or external causes.
    • Service by non-authorised providers.
    • Modifications or altered units without written permission.
    • Damage caused by non-Garmin cables or accessories.


    Garmin reserves the right to refuse warranty claims for products obtained or used in contravention of local laws. Map accuracy and completeness are not guaranteed.

    Warranty Process

    1. Contact Inverell Boating Centre Support to request an RMA number.

      Email: inverellboatingcentre.cwa@gmail.com

      Phone: 0417 159 205

      Provide your unit serial number, return address, and contact number.
    2. Ship the unit with RMA number to Garmin or Inverell Boating Centre.


      INVERELL BOATING CENTRE

      Attn: Warranty / Returns:
      10a Swanbrook Rd,
      Inverell NSW 2360,
      Australia

      Availability of Repair Facilities & Parts (Out of Warranty)

      Garmin products include complex integrated components. Repairs of parts such as cracked screens or integrated bands may not be possible outside Garmin factory conditions. Therefore, facilities or spare parts may not always be available for repair of such components.

      Where an out-of-warranty service is required, Garmin Australasia or INVERELL BOATING CENTRE may offer to sell a replacement unit or Garmin Refurbished product. This applies only to out-of-warranty service and not to consumer guarantees under the Australian Consumer Law.

      Repair or Replacement of a Garmin Product

    Australian Consumer Law Notice:

    • Repair or replacement of goods capable of retaining user data may result in loss of that data.
    • Goods presented for repair may be replaced with refurbished goods of the same type rather than repaired. Refurbished parts may be used to repair goods.


    Additional Resources


    Contact for Further Information

    For all warranty or out-of-warranty enquiries, please contact:

    INVERELL BOATING CENTRE
    www.inverellboatingcentre.com
    10a Swanbrook Rd, Inverell NSW 2360, Australia

    Phone: 0417 159 205

    Email: inverellboatingcentre.cwa@gmail.com
