LIVESCOPE™ PLUS SYSTEM: GLS 10™ Sonar Module & LVS34 Transducer

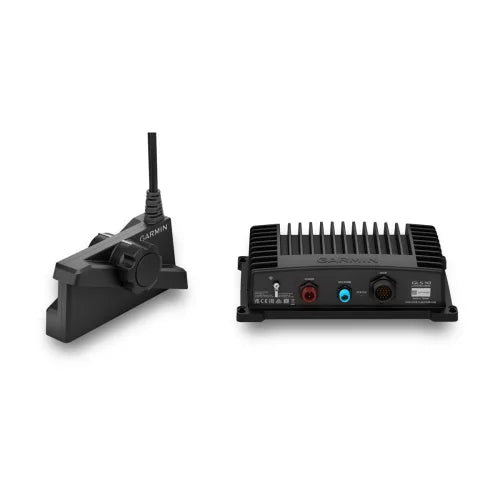

The LiveScope™ Plus System is the pinnacle of live-scanning technology, offering **improved resolution, reduced noise, and superior target separation** over previous generations. This complete system includes the essential **GLS 10 Black Box** and the advanced **LVS34 Transducer** [1], delivering real-time, live images of fish and structure up to 61 meters (200 feet) from your boat. This system is mission-critical for serious tournament and structure fishing.
THE BEST JUST GOT BETTER: PLUS SYSTEM ADVANTAGES
The LiveScope Plus technology refines the live scanning experience, ensuring clearer vision and definition like you’ve never seen.
KEY PLUS SYSTEM FEATURES
- Improved Resolution: Enhanced screen clarity and transducer sensitivity provide sharper images of fish and structure.
- Reduced Noise: See exactly what you need with fewer sonar artifacts that typically impede the picture, giving you clearer sight of targets. [2]
- Image Stabilization: A built-in stabilization system keeps the sonar image on your compatible Chartplotter steady, even in rough conditions. [2]
- Vivid Color Palettes: Choose from seven vivid color options—including Aqua, Caribbean, and Lava—to see fish and structure in maximum contrast. [2]
LIVESCOPE MODES FOR ANY ENVIRONMENT

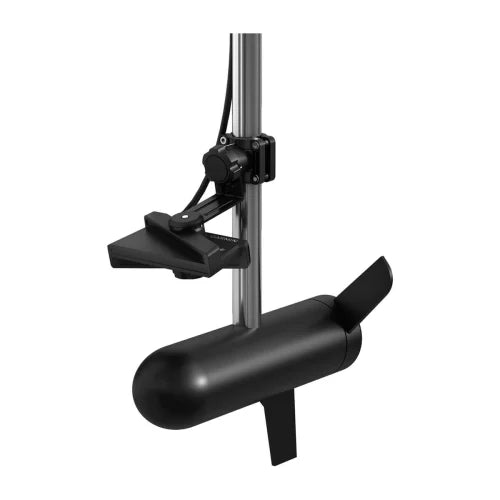

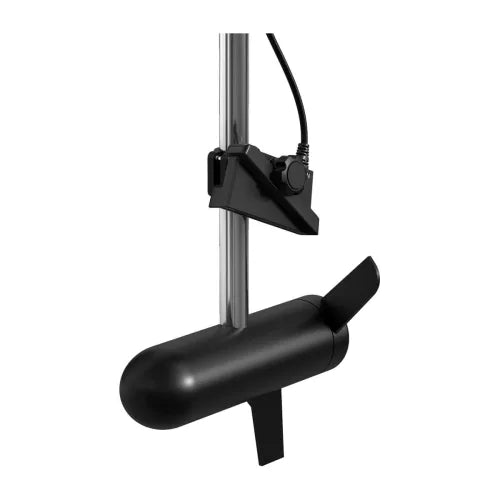

The included mount allows for easy transitions between the three major LiveScope modes to suit your fishing environment:
- Forward Mode: Scout ahead of your boat to see what's happening in real-time, perfect for locating structure and fish holding spots.
- Down Mode: Explore live views of the activity directly beneath your boat, ideal for vertical fishing or jigging.

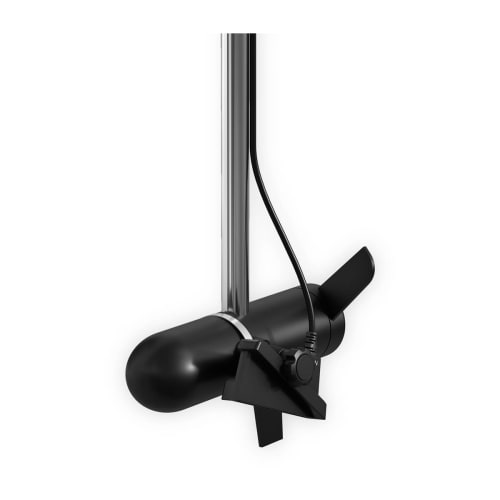

- Perspective Mode: Provides an overhead view from your perspective above the water, crucial for shallow water scanning. (Perspective Mode Mount included) [2]
Inverell Boating Centre Expert Note:
The LiveScope Plus requires a compatible Chartplotter with a Garmin Marine Network Port (e.g., ECHOMAP Ultra [1] or GPSMAP series [1]). We recommend bundling this system with a compatible MFD to ensure seamless, professional-grade integration and immediate operational readiness.
Specification in detail
Specification in detail
General & Physical
GLS 10 BLACK BOX DIMENSIONS: 24.5 x 14.9 x 6.5 cm
LVS34 TRANSDUCER DIMENSIONS: 13.7 x 9.7 x 4.6 cm
WEIGHT (GLS 10): 2.0 kg
WEIGHT (LVS34): 0.9 kg
WATER RATING: IPX7 (Submersible)
TRANSDUCER CABLE LENGTH: 20 ft
OPERATING TEMPERATURE (GLS 10): -15 °C to 70 °C
Sonar Capabilities
SONAR TYPE: LiveScope™ (Real-Time Live Scanning)
FREQUENCY: 530 – 1,100 kHz
TRANSMIT POWER: 500 W
MAXIMUM DEPTH: 61.0 m (Down and Forward)
BEAMWIDTH: 20° x 135°
TARGET SEPARATION @ 100': 14 inches
Power & Connections
POWER INPUT: 10-32 Vdc
TYPICAL POWER USAGE: 21 W
MAX POWER USAGE: 58 W
FUSE REQUIREMENT: 7.5 A
GARMIN NETWORK PORTS: 1 (Small Connector)
Inverell Boating Centre Technical Summary: The LiveScope Plus operates on a wide 10-32 Vdc input, making it compatible with both 12V and 24V systems. The GLS 10 Black Box connects directly to your MFD via the dedicated Garmin Marine Network Port. Ensure your MFD is listed under the Compatible Devices tab before purchasing this high-performance system.
