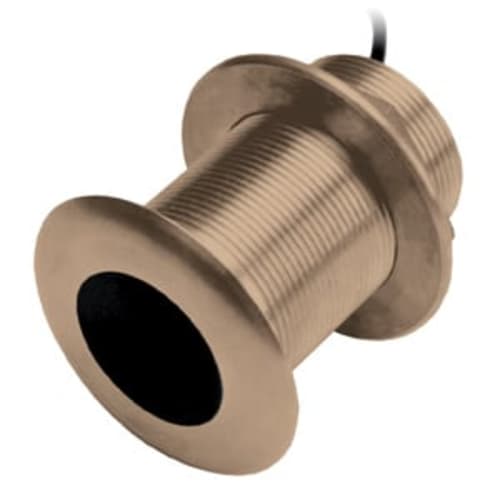

AIRMAR® B150M (12° Tilt): 300W Mid-CHIRP Thru-Hull Transducer (600 ft)
The AIRMAR® B150M (12° tilt) is a specialized, entry-level **CHIRP thru-hull solution** designed for vessels with **moderate deadrise (8° to 15°)**. This 8-pin bronze unit features **300 W Mid-Band CHIRP Traditional Sonar (95–155 kHz)**. The internal element is tilted by **12 degrees** to correct for the hull angle, ensuring the sonar beam fires straight down for optimal returns down to **600 feet (183 meters)** without the need for a fairing block. This entry-level CHIRP solution provides good depth capability and excellent target separation.
TILTED ELEMENT DESIGN & MID-BAND CHIRP
This transducer provides superior target separation and noise rejection compared to fixed-frequency sonar systems, optimized for moderate V-hulls.
KEY SONAR & INSTALLATION FEATURES
- Mid-Band CHIRP: Operates at 95–155 kHz, balancing depth penetration with high-resolution clarity up to **600 ft**.
- 12° Tilt Compensation: The integrated 12° tilt corrects the beam on hulls with **8°–15° deadrise**, eliminating the need for a fairing block.
- Housing: Durable bronze construction is ideal for **fiberglass and wood hulls** (Do not use on metal hulls).
- Flush Mount: Thru-hull installation offers flush mounting for **minimum drag**.
CONNECTIVITY AND INTEGRATION
The B150M is a reliable, permanently mounted traditional sonar solution.
- **8-Pin Connector:** Uses the standard 8-pin connector for power, depth, and temperature data output.
- **Cable Length:** Includes a robust **39-foot cable** for routing through large vessels.
Inverell Boating Centre Expert Note:
The AIRMAR B150M (12° Tilt) is a specialized 300W Traditional CHIRP only transducer. It is an excellent choice for **moderate deadrise hulls (8°–15°)**, providing reliable mid-range performance. **Professional installation is essential** to ensure the 12° tilt version is matched correctly to your hull's deadrise.
Specification in detail
Specification in detail
General & Physical
PART NUMBER: 010-11927-21
HOUSING MATERIAL: Bronze
INSTALLATION: Thru-Hull (Tilted Element)
CABLE LENGTH: 39 ft (11.9 m)
SUPPORTED DEADRISE: 8°–15° degree deadrise (12° Tilt)
Sonar Capabilities (Traditional CHIRP Only)
NUMBER OF PINS: 8-pin
SONAR TYPE: Traditional CHIRP (Mid Band)
TRADITIONAL POWER: 300 W
MAXIMUM DEPTH: 600 ft (183 m)
FREQUENCY: CHIRP Mid (95-155 kHz)
BEAMWIDTH: 26°/17°
DEPTH/SPEED/TEMPERATURE: Depth and Temperature
Inverell Boating Centre Technical Summary: The AIRMAR B150M (12° Tilt) is a specialized 300W CHIRP transducer, ideal for moderate deadrise hulls (8°–15°). It provides reliable returns up to 600 ft using the Mid-CHIRP frequency, and its integrated 12° tilt eliminates the need for a fairing block.
