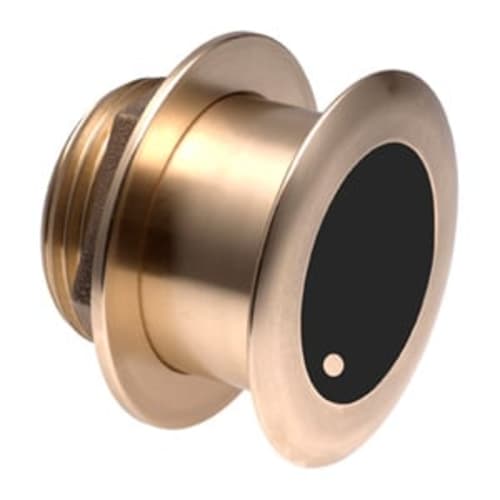

AIRMAR® B175H (0° Tilt): 1 kW High-CHIRP Thru-Hull Transducer
The AIRMAR® B175H (0° tilt) is a premium, **flush-mounted bronze thru-hull transducer** designed for serious offshore fishing where high-resolution target separation is key. This 8-pin unit features robust **1 kW Traditional Sonar** operating across the **High-CHIRP (130–210 kHz)** frequency band. It delivers maximum depth performance down to **300 meters (1,000 feet)**, coupled with a narrow beamwidth (6°–10°) for exceptional detail and target clarity. The **0° tilt version** is specifically designed for hulls with minimal deadrise (0°–7°).
1 KW HIGH-CHIRP POWER & RESOLUTION
This transducer is built with a durable bronze housing and utilizes the high-frequency band to provide the best possible target resolution and separation in mid-depth water.
KEY SONAR & INSTALLATION FEATURES
- High Transmit Power: **1 kW power output** ensures reliable signal return and clear definition down to **1,000 feet**.
- High-CHIRP Frequency: Operates at 130–210 kHz, providing a narrow beam and superior resolution for distinguishing targets close to structure.
- Flush Mount Design: Thru-hull installation offers flush mounting for **minimum drag**, sitting less than 1/4 inch outside the hull.
- Tilt Compensation: The 0° tilt compensates for hulls with deadrise angles from **0° to 7°**.
CONNECTIVITY AND INTEGRATION
The B175H is a heavy-duty, bronze sensor compatible with a wide range of Garmin systems.
- **8-Pin Connector:** Uses the 8-pin connector for power and traditional sonar data output.
- **Housing:** Durable bronze construction is ideal for **fiberglass and wood hulls** (not recommended for metal hulls).
Inverell Boating Centre Expert Note:
The AIRMAR B175H (0° Tilt) is a specialized 1 kW Traditional CHIRP only transducer. It is the best choice for anglers prioritizing high-definition target separation and mid-depth (up to 1,000 ft) performance, utilizing a narrower beam (6°–10°) than the B175HW model. **Professional installation is essential** to ensure the 0° tilt version is matched correctly to your hull's deadrise.
Specification in detail
Specification in detail
General & Physical
PART NUMBER: 010-11937-20
HOUSING MATERIAL: Bronze
INSTALLATION: Thru-Hull (Flush Mount)
CABLE LENGTH: 39 ft (11.9 m)
SUPPORTED DEADRISE: 0° to 7° deadrise (0° Tilt)
Sonar Capabilities (Traditional CHIRP Only)
NUMBER OF PINS: 8-pin
SONAR TYPE: Traditional CHIRP (High Band)
TRADITIONAL POWER: 1 kW (1,000 W)
MAXIMUM DEPTH: 1,000 ft (300 m)
FREQUENCY: CHIRP (130–210 kHz)
BEAMWIDTH: 6°–10°
DEPTH/SPEED/TEMPERATURE: Depth and Temperature
Inverell Boating Centre Technical Summary: The AIRMAR B175H (0°) is a high-power 1 kW transducer optimized for high-resolution target separation in mid-depth waters (up to 1,000 ft). The 0° tilt flush-mount bronze housing is designed for reliable installation on fiberglass/wood hulls with minimal deadrise (0°–7°).
