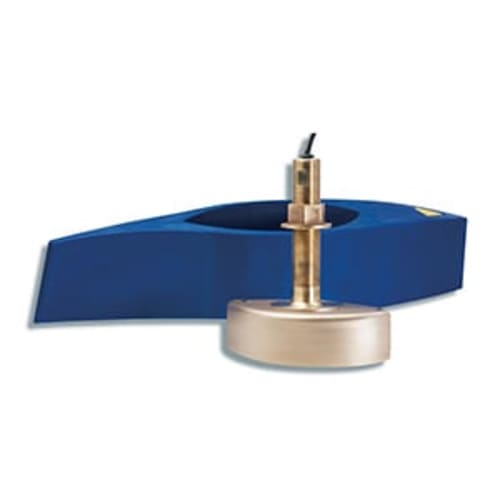

    AIRMAR® B258: Deep-Water Traditional Thru-Hull Transducer (1 kW)

    The AIRMAR® B258 is a high-power, mid-range **thru-hull transducer** designed for serious deep-water sport fishing. This 8-pin unit features robust **1 kW Traditional Sonar** operating at **50/200 kHz** dual frequencies. It delivers reliable depth returns between **1,500 and 2,200 feet (457–670 meters)**, with a narrow beam optimized for excellent bottom definition and target separation in deep water. It supports a wide deadrise range, from **0 to 26 degrees**.


    1 KW POWER & NARROW BEAM FOCUS

    The B258 utilizes its powerful transmission to punch through deep water, providing focused returns for precise target identification.

    KEY SONAR & PERFORMANCE FEATURES

    • Deep Penetration: **1 kW power output** (50/200 kHz) for reliable depth tracking between **1,500 and 2,200 ft**.
    • Narrow Beam Focus: Features specialized beamwidths (14°x23° at 50 kHz, 3°x5° at 200 kHz) for superior bottom definition and target separation in deep columns.
    • Wide Deadrise Support: Thru-hull installation is configurable for deadrise angles up to **26 degrees**.
    • Housing: Durable construction performs well at high speeds.

    CONNECTIVITY AND INTEGRATION

    The B258 is a high-power, bronze thru-hull sensor compatible with a wide range of Garmin systems.

    • **8-Pin Connector:** Uses the 8-pin connector for power and traditional sonar data output.
    • **Cable Length:** Includes a robust **39-foot cable** for flexible routing.
    • **Compatibility Note:** Requires a compatible Garmin Chartplotter that supports 1 kW, 50/200 kHz traditional sonar.

    Inverell Boating Centre Expert Note:

    The AIRMAR B258 is a dedicated 1 kW Traditional Sonar unit (no scanning capability). This is a heavy-duty option focused on deep-water penetration (50 kHz) and accurate shallow-water detail (200 kHz). **It requires a fairing block** for deadrise correction and **professional installation is essential**.

    Specification in detail

    General & Physical


    PART NUMBER: 010-10703-20

    HOUSING MATERIAL: Bronze

    INSTALLATION: Thru-Hull

    CABLE LENGTH: 39 ft (11.9 m)

    SUPPORTED DEADRISE: 0°–26° degree deadrise

    Sonar Capabilities (Traditional Only)


    NUMBER OF PINS: 8-pin

    SONAR TYPE: Traditional Dual Frequency

    TRADITIONAL POWER: 1 kW (1,000 W)

    MAXIMUM DEPTH: 1,500–2,200 ft (457–670 m)

    FREQUENCY: 50/200 kHz

    BEAMWIDTH: 14°x23° (50 kHz) / 3°x5° (200 kHz)

    DEPTH/SPEED/TEMPERATURE: Depth and Temperature


    Inverell Boating Centre Marine Technical Summary: The AIRMAR B258 is a powerful 1 kW dual-frequency transducer designed for deep-water performance (up to 2,200 ft). Its key feature is the extremely narrow 3°x5° 200 kHz beam, providing exceptional detail and fish separation, suitable for a wide deadrise range (0°–26°) when installed with a fairing block.
