AIRMAR® B75M (20° Tilt): 600W Mid-CHIRP Thru-Hull Transducer (900 ft)

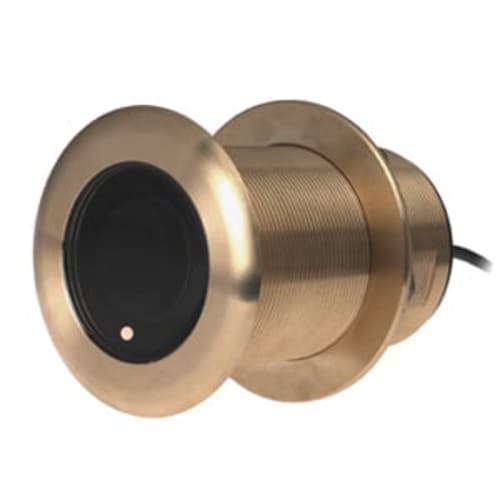

The AIRMAR® B75M (20° tilt) is a premium, **flush-mounted bronze thru-hull transducer** designed for reliable deep-water performance on **deep-V hulls**. This 8-pin unit features robust **600 W Traditional Sonar** operating across the **Mid-CHIRP (80–130 kHz)** frequency band. It delivers maximum depth performance down to **900 feet (274 meters)** and provides exceptional target separation. The **20° tilt version** is engineered for optimal performance on hulls with **16 to 24 degrees of deadrise**, correcting the beam angle without a fairing block.
DEEP-V HULL OPTIMIZATION & MID-CHIRP POWER
This transducer's built-in tilt simplifies installation on highly angled hulls, ensuring the sonar beam fires vertically for stable and clear returns.
KEY SONAR & INSTALLATION FEATURES
- High Transmit Power: **600 W power output** ensures reliable signal return down to **900 feet**.
- Mid-CHIRP Frequency: Operates at 80–130 kHz, balancing deep penetration with high-resolution clarity.
- 20° Tilt Compensation: The integrated 20° tilt corrects the beam on hulls with **16°–24° deadrise**, eliminating the need for a fairing block.
- Flush Mount Design: Thru-hull installation offers flush mounting for **minimum drag**.
CONNECTIVITY AND INTEGRATION
The B75M is a heavy-duty, bronze sensor compatible with a wide range of Garmin systems.
- **8-Pin Connector:** Uses the standard 8-pin connector for power and traditional sonar data output.
- **Housing:** Durable bronze construction is ideal for **fiberglass and wood hulls** (not recommended for metal hulls).
Inverell Boating Centre Expert Note:
The AIRMAR B75M (20° Tilt) is a specialized 600W Traditional CHIRP only transducer. It is the premier choice for anglers prioritizing deep mid-range performance (up to 900 ft) on deep-V hulls with significant deadrise. **Professional installation is essential** to ensure the 20° tilt version is matched correctly to your hull's deadrise.
Specification in detail
Specification in detail
General & Physical
PART NUMBER: 010-11636-22
HOUSING MATERIAL: Bronze
INSTALLATION: Thru-Hull (Tilted Element)
CABLE LENGTH: 39 ft (11.9 m)
SUPPORTED DEADRISE: 16°–24° degree deadrise (20° Tilt)
Sonar Capabilities (Traditional CHIRP Only)
NUMBER OF PINS: 8-pin
SONAR TYPE: Traditional CHIRP (Mid Band)
TRADITIONAL POWER: 600 W
MAXIMUM DEPTH: 900 ft (274 m)
FREQUENCY: CHIRP (80–130 kHz)
BEAMWIDTH: 24°/16°
DEPTH/SPEED/TEMPERATURE: Depth and Temperature
Inverell Boating Centre Technical Summary: The AIRMAR B75M (20° Tilt) is a specialized 600W Mid-CHIRP transducer, providing reliable returns up to 900 ft. The integrated 20° tilt is critical for high-deadrise hulls (16°–24° deadrise), ensuring stable performance and minimal drag.
