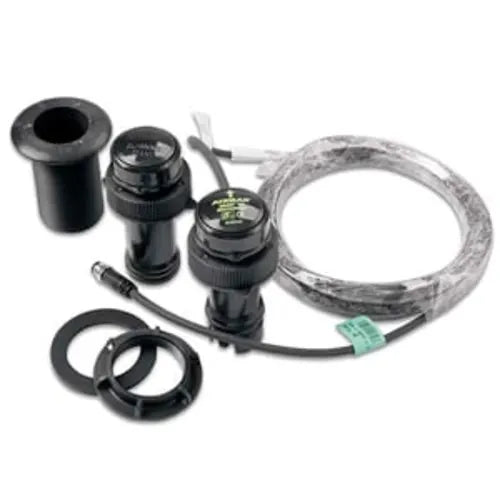

AIRMAR® DT800 (20° Tilt): NMEA 2000® Smart Thru-Hull Sensor
The AIRMAR® DT800 (20° tilt) is a specialized, **plastic smart thru-hull transducer** designed to enhance your vessel’s NMEA 2000 instrumentation network. It provides accurate **depth and water temperature** data directly to compatible Garmin displays and Chartplotters. Operating at 235 kHz, this 100 W sensor offers stable readings down to **600 feet (183 meters)**. The **20° tilt element** is internally corrected to ensure the sonar beam fires vertically on hulls with deadrise between **16 and 24 degrees**.
DEDICATED NMEA 2000 INSTRUMENTATION
The DT800 is a smart sensor, sending digital data directly onto the NMEA 2000 network, eliminating the need for complex wiring or black boxes.
KEY INSTRUMENTATION & INSTALLATION FEATURES
- NMEA 2000® Output: Provides depth and temperature data directly via the NMEA 2000 network, allowing instant viewing on any connected display.
- 20° Tilt Compensation: The integrated tilt corrects for deadrise between **16° and 24°**, crucial for deep-V hulls.
- 100 W Power: Supplies stable power for instrumentation functionality, reaching depths up to **600 feet**.
- Flush Mount: Plastic thru-hull housing ensures minimal drag and is safe for trailered boats.
CONNECTIVITY AND INTEGRATION
The DT800 is designed for simple, direct integration into your NMEA 2000 backbone.
- **Direct NMEA 2000:** Plug-and-play connection eliminates the need for separate sonar or power cables.
- **Frequency:** Operates at 235 kHz, providing reliable depth tracking, though it is not intended for detailed fishfinding.
Inverell Boating Centre Expert Note:
The AIRMAR DT800 (20° Tilt) is a dedicated **NMEA 2000 Smart Sensor** and does not provide traditional or scanning sonar imagery for fishfinding purposes. It is strictly a depth and temperature source. The 20° tilt is crucial for high-deadrise hulls (16°–24°). This unit is the easiest way to add digital depth and temp data to your network.
Specification in detail
Specification in detail
General & Physical
PART NUMBER: 010-11105-00
HOUSING MATERIAL: Plastic
INSTALLATION: Thru-Hull (Tilted Element)
SUPPORTED DEADRISE: 16°–24° degree deadrise (20° Tilt)
Sensor Capabilities (NMEA 2000)
SENSOR TYPE: Depth and Temperature
TRANSDUCER POWER: 100 W
MAXIMUM DEPTH: 600 ft (183 m)
FREQUENCY: 235 kHz
BEAMWIDTH: 12°
Inverell Boating Centre Technical Summary: The AIRMAR DT800 (20° Tilt) is a specialized 100W NMEA 2000 smart sensor for depth and temperature only. It is ideal for high-deadrise hulls (16°–24° deadrise), providing accurate, digital data directly to the NMEA 2000 network without requiring a separate sonar module or Chartplotter transducer port.
