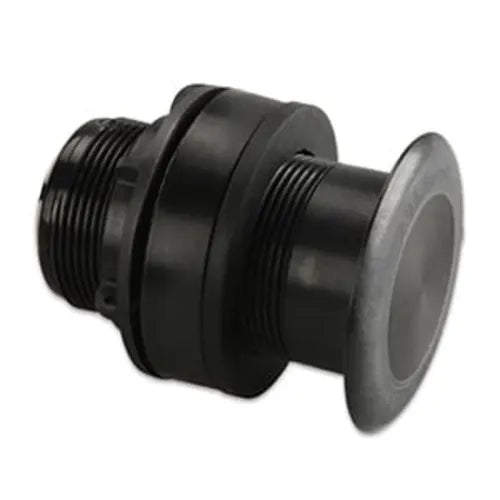

AIRMAR® P319: Dual Frequency Thru-Hull Transducer (600W)
The AIRMAR® P319 is a widely used, **plastic thru-hull transducer** designed for reliable performance at high speeds. This 8-pin unit features robust **600 W Traditional Sonar** operating at **50/200 kHz** dual frequencies. It delivers stable depth returns between **800 and 1,200 feet (244–366 meters)**. The P319 is an excellent choice for **fiberglass and metal hulls** and is designed to accommodate hulls with **0 to 7 degrees of deadrise** without requiring a fairing block.
RELIABLE DUAL FREQUENCY & EASY INSTALLATION
The P319 is prized for its balance of power and simple, flush-mounted installation, making it a favorite for coastal cruisers and mid-range fishing vessels.
KEY SONAR & INSTALLATION FEATURES
- High Transmit Power: **600 W power output** (50/200 kHz) ensures reliable signal return and deep-water tracking up to **1,200 feet**.
- Dual Frequency: The 50/200 kHz frequencies provide wide beam coverage (45°) for deep water and focused returns (12°) for shallow water.
- Housing: Durable **plastic construction** is safe for fiberglass and metal hulls (**Do not use on wood hulls**).
- Deadrise Support: Designed for hulls with **0°–7° deadrise**, ensuring stable performance without a fairing block.
CONNECTIVITY AND INTEGRATION
The P319 connects easily to 8-pin Chartplotters and includes a long cable for flexible routing.
- **8-Pin Connector:** Uses the standard 8-pin connector for power, depth, and temperature data output.
- **Cable Length:** Includes a robust **33-foot cable** for flexible routing.
- **Legacy Compatibility:** When using with older 6-pin Garmin sounders, a transducer adapter cable (010-11612-00) is required.
Inverell Boating Centre Expert Note:
The AIRMAR P319 is a dedicated 600W Traditional Sonar unit (no scanning capability). It is the premier choice for **fiberglass/metal hulls** with minimal deadrise (0°–7°) requiring reliable 50/200 kHz traditional depth sounder functionality. **Professional installation is essential.**
Specification in detail
Specification in detail
General & Physical
PART NUMBER: 010-10194-21
HOUSING MATERIAL: Plastic
INSTALLATION: Thru-Hull
CABLE LENGTH: 33 ft (10.1 m)
SUPPORTED DEADRISE: 0°–7° degree deadrise
Sonar Capabilities (Traditional Only)
NUMBER OF PINS: 8-pin
SONAR TYPE: Traditional Dual Frequency
TRADITIONAL POWER: 600 W
MAXIMUM DEPTH: 800–1,200 ft (244–366 m)
FREQUENCY: 50/200 kHz
BEAMWIDTH: 45°/12°
DEPTH/SPEED/TEMPERATURE: Depth and Temperature
Inverell Boating Centre Technical Summary: The AIRMAR P319 is a reliable 600W 50/200 kHz transducer, providing deep traditional sonar capability (up to 1,200 ft) via the 8-pin standard. Its plastic housing and 0° deadrise compensation make it a cost-effective, high-speed solution for many fiberglass and metal hulls.
