CORTEX® V1: VHF Radio with SOTDMA SmartAIS & Remote Monitoring Hub

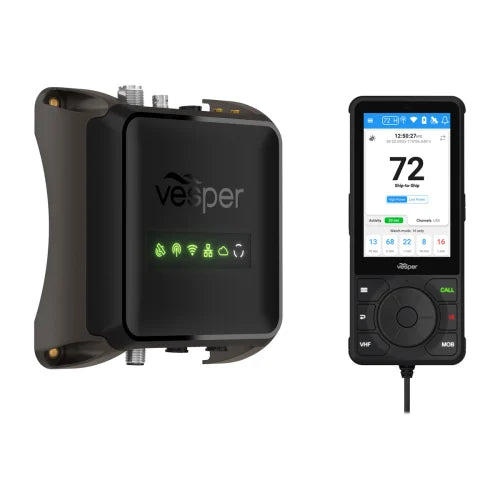

The Cortex® V1 is a revolutionary **communications hub** that integrates a powerful **25 W VHF radio**, **SOTDMA Class B SmartAIS**, and **remote vessel monitoring/control**. The system includes the Cortex M1 hub and an intuitive **Cortex H1 tethered handset**. With up to 85 dBA of crystal-clear audio and voiced collision alerts, the Cortex V1 delivers unprecedented situational awareness and security, both onboard and ashore, enhancing communication and avoiding collision threats with its active monitoring.
INTEGRATED SMARTAIS & COLLISION AVOIDANCE
Cortex SmartAIS continuously monitors AIS information from other boats and proactively calculates crossing situations, providing voiced alerts for collision threats and Anchor Watch alerts.
KEY SAFETY & COMMUNICATION FEATURES
- SOTDMA SmartAIS: Built-in Class B AIS transponder (5W output) provides superior AIS performance for collision avoidance and tracking.
- Remote Monitoring & Control: Cortex apps allow you to monitor built-in sensors (GPS, heading, battery, barometer) and remotely control connected devices from your smartphone (Premium subscription required for full access).

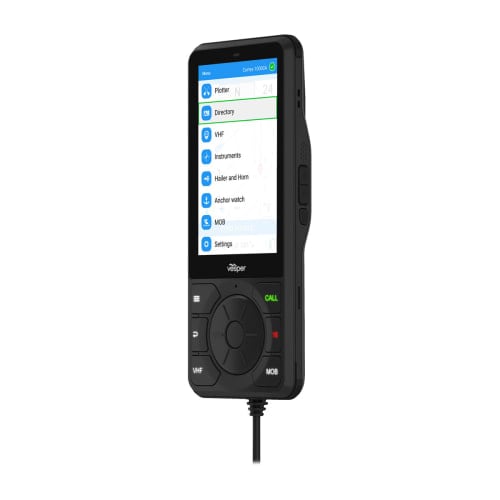

- Intuitive Handset Control: The H1 handset offers easy one-hand operation with a responsive touchscreen, click-wheel, and dedicated MOB button.
- NMEA Gateway: Translates data between NMEA 2000® and NMEA 0183, sharing fast 10Hz GNSS data across all connected MFDs.
TOTAL CONTROL & RUGGED DESIGN
The Cortex system is engineered for reliable operation in all marine environments, simplifying complex networking and providing low power consumption.
- **VHF Power:** 25 W transmit power with cutting-edge SquelchEQ control and omni watch functionality for clear, loud audio (up to 85 dBA).

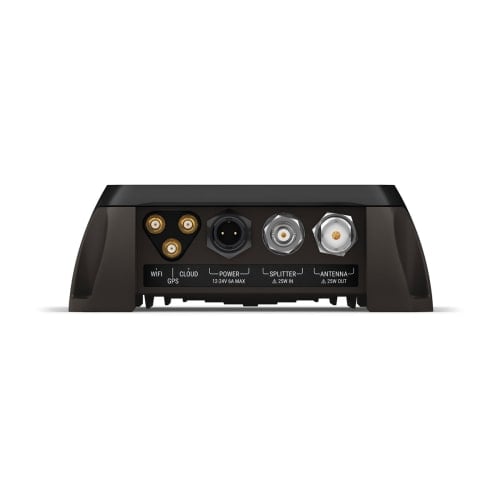

- **Built-in Splitter:** Allows you to use a single existing VHF antenna for both AIS and VHF, simplifying installation.
- **Rugged & Reliable:** M1 Hub is IPX7 rated, and H1/H1P Handsets are IPX8 rated, designed for 12V/24V operation in harsh marine conditions.
Inverell Boating Centre Expert Note:
The Cortex V1 is the highest-tier communication and monitoring solution, essential for vessels requiring premium safety and network integration. The inclusion of SOTDMA (superior AIS standard), remote monitoring capabilities, and the robust NMEA 2000 gateway justifies its positioning as a central communications hub.
Specification in detail
Specification in detail

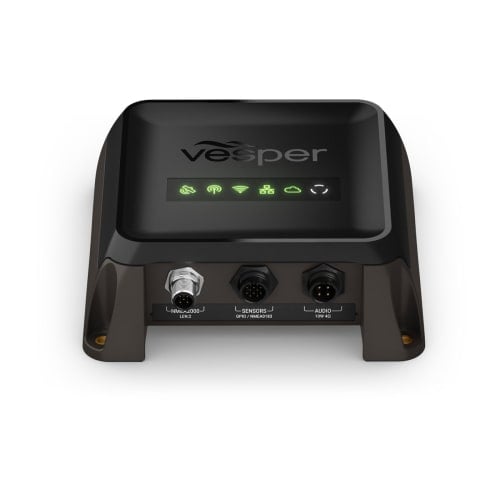

Cortex M1 Hub: General & Physical
PART NUMBER: 010-02814-20
HUB DIMENSIONS: 6 5/8″ x 6 5/8″ x 2 5/16″ (168 x 168 x 58.7 mm)
WEIGHT (HUB): 770 g
WATER RATING: IPX7 (Hub) / IPX8 (Handset)
OPERATING TEMPERATURE: -25°C to +55°C
VHF & AIS Communication
VHF POWER OUTPUT: 25 W (High) / 1 W (Low)
DSC CLASS: Class D
AIS CLASS: SOTDMA Class B (5W Output)
MAX AUDIO OUTPUT: 10 W (Hub) / 3 W (Handset - 85dBA)
VHF FREQUENCY RANGE TX/RX: 156.025–161.600 MHz (Tx) / 156.050–163.275 MHz (Rx)
Navigation, Networking & Power
GNSS: Multi-Constellation (GPS, GLONASS, Galileo, BeiDou)
NAVIGATION RATE: 10 Hz

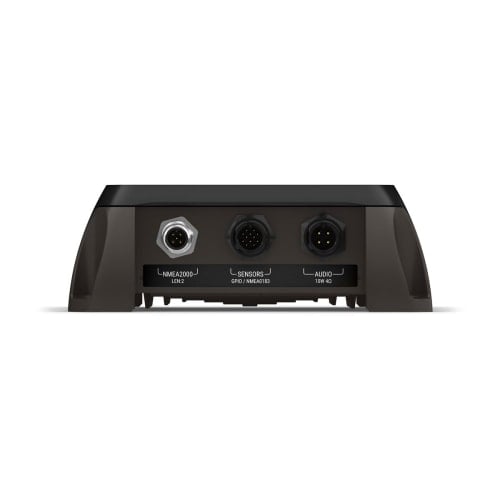

NETWORKING: NMEA 2000® Gateway (LEN 2), NMEA 0183, Built-in Wi-Fi®
POWER INPUT: 9–33 Vdc
TYPICAL CURRENT DRAW: 700mA @ 12V (6A max)
BUILT-IN SENSORS: Heading (9-axial), Barometer, Battery Voltage
Inverell Boating Centre Technical Summary: The Cortex V1 is the professional standard for communication and monitoring, combining SOTDMA Class B AIS (5W output) with 25W VHF. It features a robust NMEA 2000 gateway and multi-band 10 Hz GPS, all engineered for low power consumption and extreme durability.
