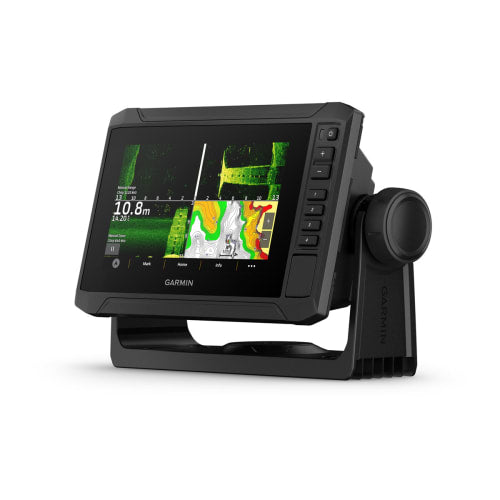

    ECHOMAP™ UHD2 65sv: 6-inch Chartplotter with UHD SideVü™ & Navionics+ Mapping

    The ECHOMAP™ UHD2 65sv delivers advanced fishfinding technology in a versatile, compact 6-inch display. This unit features a premium **touchscreen interface with keyed-assist** and is bundled with the **GT54UHD-TM transducer** [1], providing both **Ultra High-Definition SideVü™** and **ClearVü™** scanning sonars. With built-in Garmin Navionics+™ Australia & New Zealand mapping and Multi-Band GPS, the 65sv ensures superior target separation and highly accurate navigation.


    ULTRA HIGH-DEFINITION SONAR & MULTI-BAND GPS

    The 65sv provides best-in-class sonar and mapping detail for its size, allowing you to quickly distinguish fish from structure with high-contrast vivid color palettes.

    KEY SONAR & NAVIGATION FEATURES

    • UHD SideVü™ & ClearVü™: The bundled GT54 transducer delivers Ultra High-Definition scanning, giving you a nearly photographic view of structure and fish to the sides and below your boat.

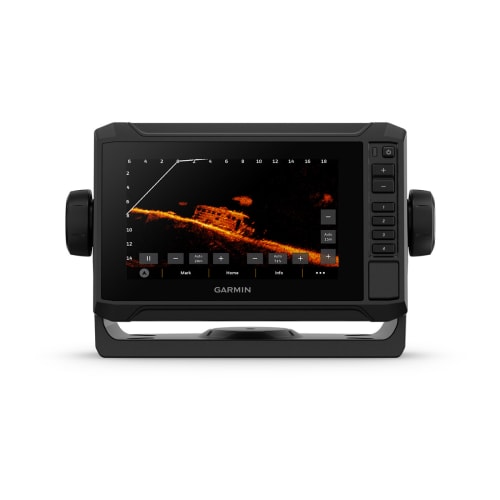

    • LiveScope™ Ready: This Chartplotter supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately). [2]
    • Multi-Band GPS: Get **improved position accuracy** with Multi-Band GPS technology, crucial for precise waypoint marking, especially in areas with poor signal reflection.

    WIRELESS NETWORKING & VESSEL CONTROL

    The ECHOMAP UHD2 is built for seamless integration with other components, simplifying boat control and data management:

    • Wireless Networking: Wirelessly share sonar, waypoints, and routes with another compatible ECHOMAP UHD2 Chartplotter onboard.
    • Force® Trolling Motor Control: Wirelessly connect to your Force trolling motor [1] for advanced boat control features like route creation and Anchor Lock.
    • NMEA 2000® Network: Connect to essential components like autopilots and Fusion-Link™ audio systems [1] via the built-in NMEA 2000 port.

    Inverell Boating Centre Expert Note:

    The 65sv is the most compact unit in the UHD2 series to feature SideVü scanning. It provides **one Garmin Marine Network Port** for hardwired connection to an external black box (like LiveScope [1]) and maintains a very efficient 1.53A typical current draw, balancing power and high performance effectively.

    Specification in detail

    General & Physical


    DIMENSIONS: 8.1″ x 5.2″ x 2.6″ (20.6 x 13.1 x 6.7 cm)

    WEIGHT: 1.8 lbs (0.8 kg)

    WATER RATING: IPX7 (Submersible)

    DISPLAY TYPE: WVGA Color Touchscreen with Keyed Assist

    DISPLAY SIZE: 6.2″ diag (15.7 cm)

    DISPLAY RESOLUTION: 800 x 480 pixels

    INPUT TYPE: Touchscreen with Keyed Assist

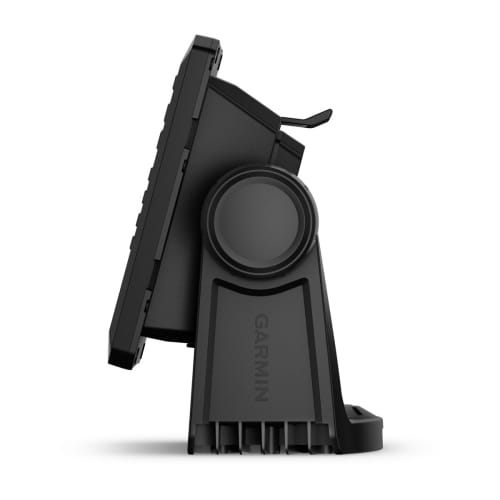

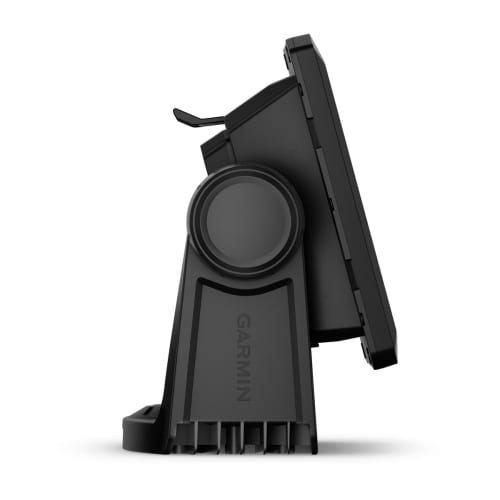

    MOUNTING OPTIONS: Bail or Flush

    Sonar Capabilities (Built-in)


    TRANSDUCER INCLUDED: GT54UHD-TM [1]

    POWER OUTPUT: 500 W (RMS)

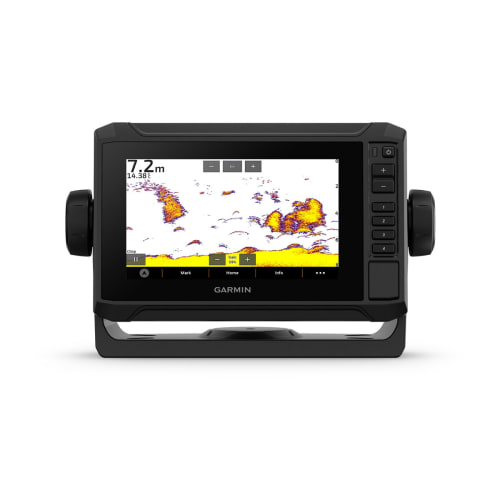

    TRADITIONAL SONAR: Built-in (Single channel CHIRP, 50/77/83/200 kHz)

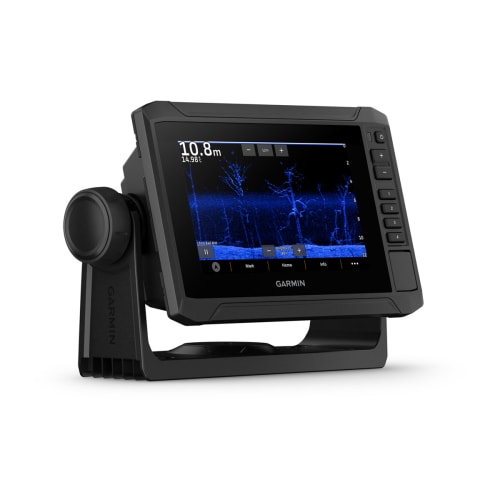

    CLEARVÜ: Built-in 260/455/800/1000/1200 kHz (UHD Sonar)

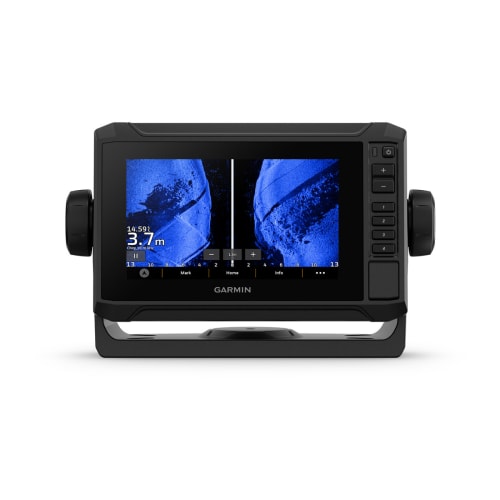

    SIDEVÜ: Built-in 260/455/800/1000/1200 kHz (UHD Sonar)

    LIVESCOPE SUPPORT: Yes

    Navigation & Memory


    GPS RECEIVER: 10 Hz Multi-Band, Multi-Constellation

    PRELOADED MAPS: Garmin Navionics+™ Inland & Coastal Australia/NZ

    DATA CARDS: Accepts 1 microSD™ card (32 GB max)

    WAYPOINTS / TRACKS / ROUTES: 5,000 / 50 Saved Tracks / 100

    AUTO GUIDANCE+™: Yes (Downloadable via ActiveCaptain app)

    WAAS SUPPORT: Yes

    Connectivity & Electrical


    POWER INPUT: 9 to 18 Vdc

    TYPICAL CURRENT DRAW: 1.53 A @ 12 Vdc

    MAXIMUM CURRENT DRAW: 3.2 A @ 12 Vdc

    MAXIMUM POWER USAGE: 18.4 W

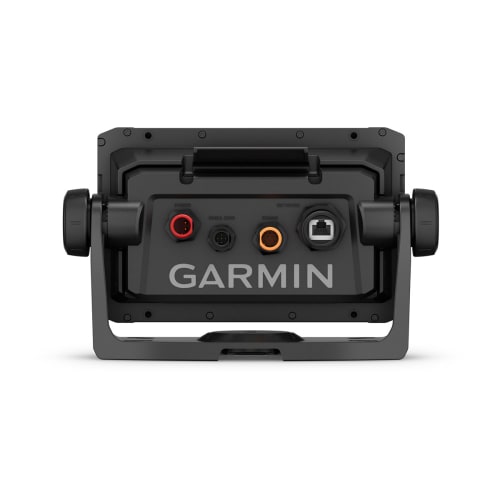

    GARMIN NETWORK PORTS: 1 (Large Connector)

    NMEA 2000® PORTS: 1

    TRANSDUCER PORTS: 1 (12-pin scanning sonar)

    WIRELESS CONNECTIVITY: Built-in Wi-Fi® and ANT®


    Inverell Boating Centre Technical Summary: The ECHOMAP UHD2 65sv is the most compact unit to feature both UHD SideVü/ClearVü and a Garmin Network Port, making it an excellent choice for complex systems in limited dash space. Its Multi-Band GPS and efficient 1.53A draw provide reliable performance without compromise.

    Warranty / Availability of Repair Facilities & Parts

    AU Warranty / Availability of Repair Facilities & Parts

    Garmin Warranty / Availability of Repair Facilities & Parts


    On this page, Garmin customers in Australia will find detailed warranty information; information regarding availability of repair facilities and parts including for out-of-warranty service; other important details regarding repair or replacement of a Garmin product; and how to contact Inverell Boating Centre for further information.

    On this page


    Limited Warranty

    This warranty is provided by Garmin Australasia Pty Ltd.

    Application of Australian Consumer Guarantees


    Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

    The benefits under this Limited Warranty are in addition to other rights and remedies under applicable law. Phone: 0417 159 205.

    One-Year Consumer Products Limited Warranty


    Non-aviation products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Garmin Australasia will, at its sole option, repair or replace any components that fail in normal use at no charge for parts or labour (customer responsible for transportation).

    Warranty Exclusions

    • Cosmetic damage such as scratches, nicks, and dents.
    • Consumable parts (batteries, etc.) unless damage occurs due to defects in materials or workmanship.
    • Damage from accident, abuse, misuse, water, fire, or external causes.
    • Service by non-authorised providers.
    • Modifications or altered units without written permission.
    • Damage caused by non-Garmin cables or accessories.


    Garmin reserves the right to refuse warranty claims for products obtained or used in contravention of local laws. Map accuracy and completeness are not guaranteed.

    Warranty Process

    1. Contact Inverell Boating Centre Support to request an RMA number.

      Email: inverellboatingcentre.cwa@gmail.com

      Phone: 0417 159 205

      Provide your unit serial number, return address, and contact number.
    2. Ship the unit with RMA number to Garmin or Inverell Boating Centre.


      INVERELL BOATING CENTRE

      Attn: Warranty / Returns:
      10a Swanbrook Rd,
      Inverell NSW 2360,
      Australia

      Availability of Repair Facilities & Parts (Out of Warranty)

      Garmin products include complex integrated components. Repairs of parts such as cracked screens or integrated bands may not be possible outside Garmin factory conditions. Therefore, facilities or spare parts may not always be available for repair of such components.

      Where an out-of-warranty service is required, Garmin Australasia or INVERELL BOATING CENTRE may offer to sell a replacement unit or Garmin Refurbished product. This applies only to out-of-warranty service and not to consumer guarantees under the Australian Consumer Law.

      Repair or Replacement of a Garmin Product

    Australian Consumer Law Notice:

    • Repair or replacement of goods capable of retaining user data may result in loss of that data.
    • Goods presented for repair may be replaced with refurbished goods of the same type rather than repaired. Refurbished parts may be used to repair goods.


    Additional Resources


    Contact for Further Information

    For all warranty or out-of-warranty enquiries, please contact:

    INVERELL BOATING CENTRE
    www.inverellboatingcentre.com
    10a Swanbrook Rd, Inverell NSW 2360, Australia

    Phone: 0417 159 205

    Email: inverellboatingcentre.cwa@gmail.com
