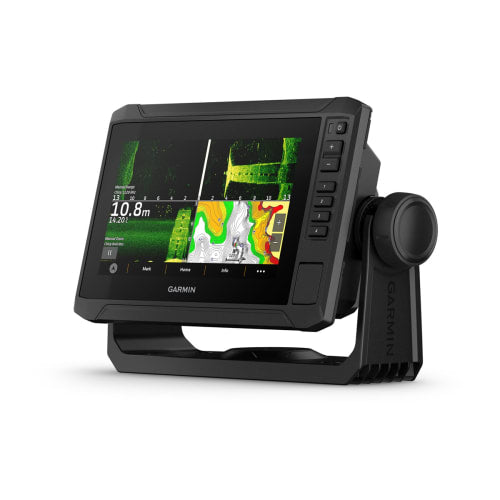

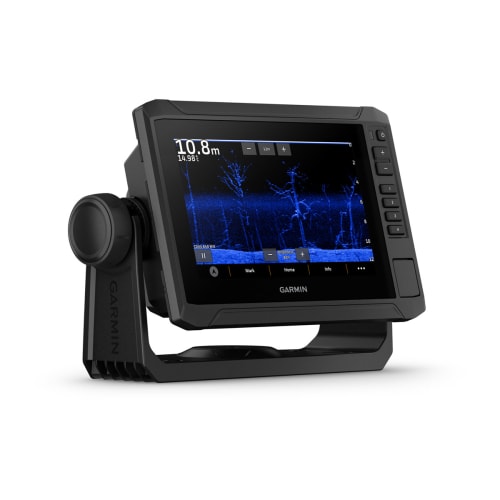

    ECHOMAP™ UHD2 75sv: 7-inch Chartplotter with UHD SideVü™ & Navionics+ Mapping

    The ECHOMAP™ UHD2 75sv offers Garmin’s best-in-class sonar and mapping in a compact, highly versatile 7-inch package. This unit features a premium **touchscreen display with keyed-assist** and is bundled with the **GT54UHD-TM transducer** [1], delivering Ultra High-Definition **SideVü™** and **ClearVü™** scanning sonars. With built-in Garmin Navionics+™ mapping, you gain superior detail and accurate position reporting through Multi-Band GPS.


    ULTRA HIGH-DEFINITION SONAR & MAPPING

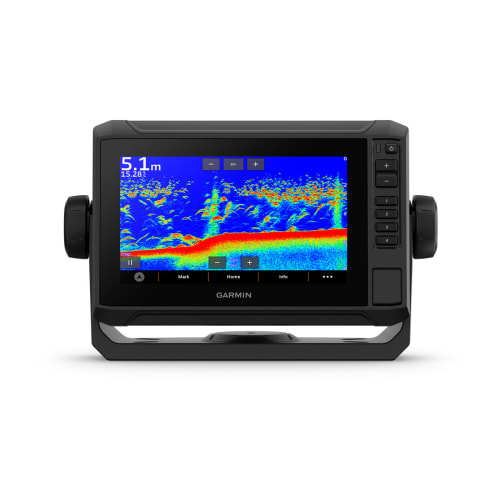

    The 75sv ensures the fish have nowhere to hide, providing crisp, clear traditional sonar paired with brilliant scanning sonar images.

    KEY SONAR & NAVIGATION FEATURES

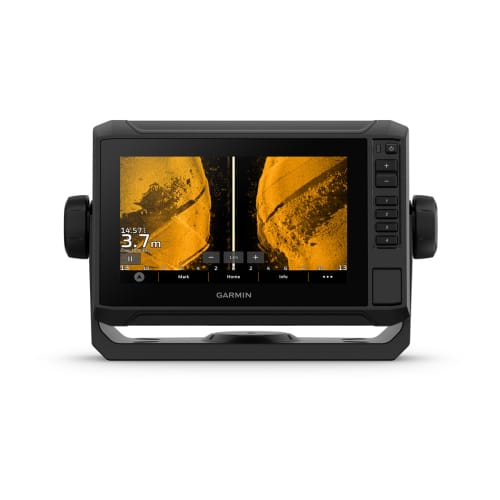

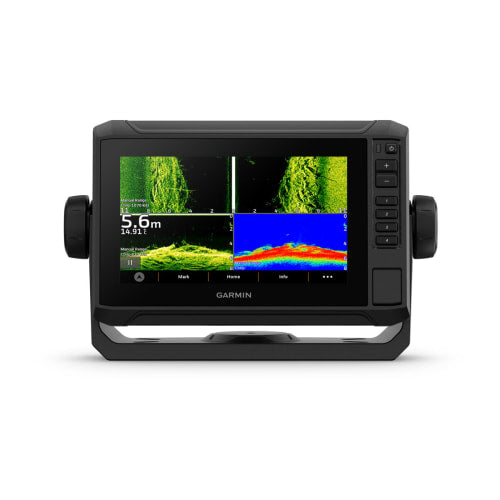

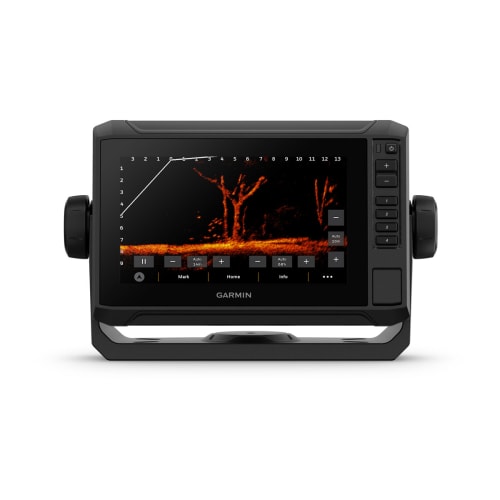

    • UHD SideVü™ & ClearVü™: The bundled GT54 transducer provides Ultra High-Definition scanning, giving you a nearly photographic view of structure and fish to the sides and below your boat.

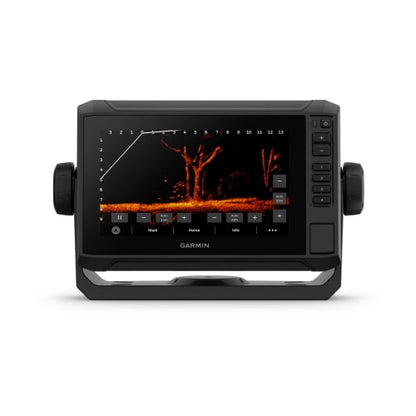

    • LiveScope™ Ready: This Chartplotter fully supports the entire lineup of LiveScope live-scanning sonar products (transducers sold separately). [2]
    • Preloaded Charts: Includes built-in **Garmin Navionics+ mapping** for Australia and New Zealand, giving you superior coverage and daily updates.

    ADVANCED NETWORKING & CONTROL

    The ECHOMAP UHD2 is built for seamless integration with other components, simplifying boat control and data management:

    • Multi-Band GPS: Get **improved position accuracy** with multi-band GPS, especially valuable in areas where signals are weak or reflected.
    • Wireless Networking: Wirelessly share sonar, waypoints, and routes with another compatible ECHOMAP UHD2 Chartplotter onboard.
    • ActiveCaptain® App: Built-in Wi-Fi® connectivity pairs with the free app for software updates, smart notifications, and access to the OneChart™ feature.
    • Force® Trolling Motor Control: Wirelessly connect to your Force trolling motor [1] for advanced boat control, route creation, and waypoint navigation.

    Inverell Boating Centre Expert Note:

    The 75sv is ideal for smaller vessels requiring high-end UHD sonar. It provides **one Garmin Marine Network Port** for hardwired connection to external devices and maintains a highly efficient 1.52A typical current draw, balancing power and performance effectively.

    Specification in detail

    General & Display


    DIMENSIONS: 8.6″ x 5.6″ x 3.2″ (21.8 x 14.2 x 8.1 cm)

    WEIGHT: 2.2 lbs (1 kg)

    WATER RATING: IPX7 (Submersible)

    DISPLAY TYPE: WVGA Color Touchscreen with Keyed Assist

    DISPLAY SIZE: 7″ diagonal (17.8 cm)

    DISPLAY RESOLUTION: 800 x 480 pixels

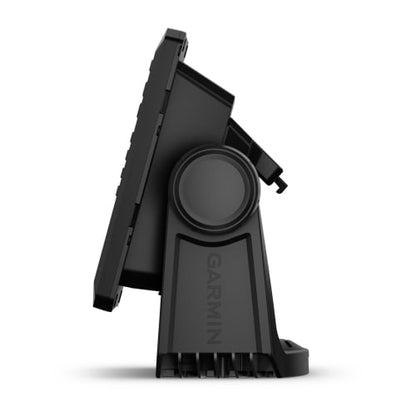

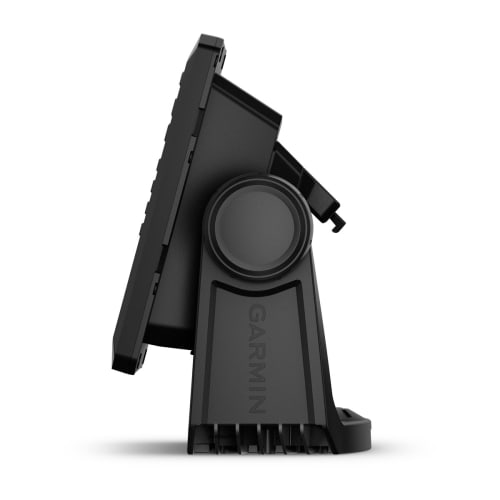

    MOUNTING OPTIONS: Bail or Flush

    Sonar Capabilities (Built-in)


    TRANSDUCER INCLUDED: GT54UHD-TM [1]

    POWER OUTPUT: 500 W (RMS)

    TRADITIONAL SONAR: Built-in (Single channel CHIRP, 50/77/83/200 kHz)

    CLEARVÜ: Built-in 260/455/800/1000/1200 kHz (UHD Sonar)

    SIDEVÜ: Built-in 260/455/800/1000/1200 kHz (UHD Sonar)

    LIVESCOPE SUPPORT: Yes

    Navigation & Memory


    GPS RECEIVER: 10 Hz Multi-Band, Multi-Constellation

    PRELOADED MAPS: Garmin Navionics+™ Inland & Coastal Australia/NZ

    DATA CARDS: Accepts 1 microSD™ card (32 GB max)

    WAYPOINTS / TRACKS / ROUTES: 5,000 / 50 Saved Tracks / 100

    Connectivity & Electrical


    POWER INPUT: 9 to 18 Vdc

    TYPICAL CURRENT DRAW: 1.52 A @ 12 Vdc

    MAXIMUM CURRENT DRAW: 3.2 A @ 12 Vdc

    POWER CONSUMPTION: 18.3 W (Max)

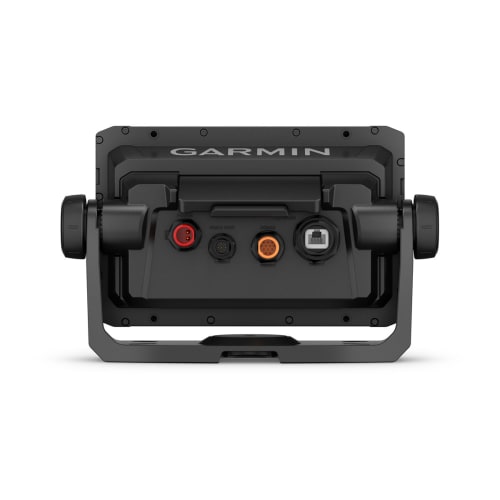

    GARMIN NETWORK PORTS: 1 (Large Connector)

    NMEA 2000® PORTS: 1

    TRANSDUCER PORTS: 1 (12-pin scanning sonar)

    WIRELESS CONNECTIVITY: Built-in Wi-Fi® and ANT®


    Inverell Boating Centre Technical Summary: The ECHOMAP UHD2 75sv provides high-end UHD sonar and Multi-Band GPS in a compact 7-inch unit. Its single Garmin Network Port is ideal for connecting a LiveScope Black Box [1], and its efficient 1.52A typical draw makes it perfect for vessels with limited power resources.
