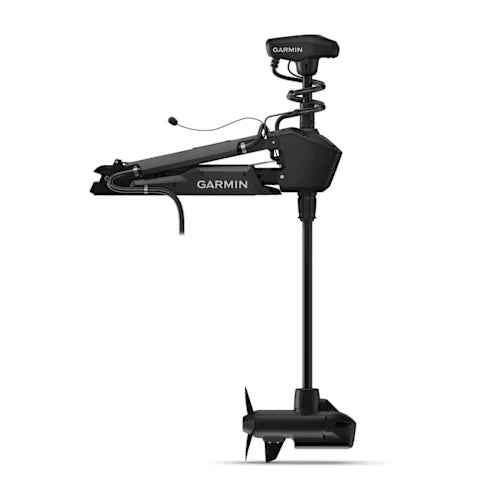

FORCE® PRO TROLLING MOTOR (50" Shaft): 100 lb Thrust with Built-in GT56UHD Sonar
The Force® Pro trolling motor is engineered for serious anglers who demand **legendary power and our most precise positioning technology**. Featuring a powerful brushless motor for **100 lbs of thrust** (at 36V), this motor operates with whisper-quiet efficiency, ensuring you don't spook the fish. This model includes the improved **GT56UHD-TR transducer built into the motor**, providing brilliant Ultra High-Definition (UHD) scanning sonar right out of the box.
SUPERIOR POWER, PRECISION, AND SONAR
The Force Pro delivers high performance in a durable, quiet package, making it perfect for freshwater, brackish, and saltwater environments.
KEY FEATURES & INTEGRATION
- Anchor Lock Precision: Features **multi-band GPS** for superior accuracy, providing our most precise boat positioning technology.
- Built-in GT56UHD Sonar: Includes Ultra High-Definition SideVü, ClearVü, and High-Wide CHIRP traditional sonar for maximum clarity with extremely low sonar noise.
- Total Wireless Control: Includes both an easy-to-use **foot pedal** (wired/battery powered) and a **floating remote** with gesture control.
- Chartplotter Integration: Connect wirelessly to compatible Garmin Chartplotters [1] to create and follow routes, navigate to waypoints, and control motor modes.
DEPLOYMENT AND DURABILITY
The Force Pro is built to endure harsh conditions and features an intelligent design for quick, easy operation.
- **Power Options:** Operates on either 24 V (80 lbs thrust) or 36 V (100 lbs thrust).

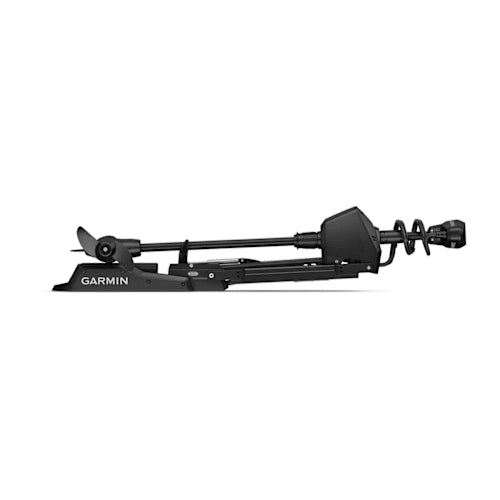

- **Easy Stow/Deploy:** Dual gas springs and a durable pull cable facilitate easy deployment and stowing.
- **Shaft:** 50-inch shaft length, built with advanced corrosion and saltwater protection (IPX7 water rating).
Inverell Boating Centre Expert Note:
The Force Pro is the premier trolling motor choice, delivering true 100 lbs of thrust with the most advanced positioning available via multi-band GPS. The integrated GT56UHD transducer provides 350W Traditional and 500W Scanning power directly through the motor, ensuring the cleanest sonar picture possible by reducing electrical interference.
Specification in detail
Specification in detail
General Motor & Physical
COLOUR: Black
SHAFT LENGTH: 50 inches
MAX THRUST: 100 lbs (at 36 V) / 80 lbs (at 24 V)
VOLTAGE: 24 V or 36 V
WATER RATING: IPX7
WARRANTY: 3-year, limited lifetime on shaft
Sonar & Navigation
BUILT-IN TRANSDUCER: GT56UHD-TR (Included)
SONAR TYPES: High-Wide CHIRP Traditional, ClearVü, SideVü
MAX DEPTH (TRADITIONAL): 800 ft freshwater
MAX DEPTH (CLEARVÜ): 400 ft
TRANSDUCER POWER: Traditional 350 W; Scanning 500 W
GPS: Built-in Multi-Band GPS
AUTOPILOT FEATURES: Anchor Lock, Route Following, Heading Hold, Cruise Control
Connectivity & Accessories
REMOTE: Yes (Floating, Included)
FOOT PEDAL: Yes (Wireless, Included)
SMARTWATCH INTEGRATION: Yes (quatix® compatible)
TRANSDUCER PINS: 12-pin (Orange Connector)
Inverell Boating Centre Technical Summary: The Force Pro (50") is the ultimate integrated trolling motor, providing multi-band GPS precision and the high-resolution GT56UHD transducer built directly into the assembly, ensuring stable, powerful, and clean sonar data transmission.
