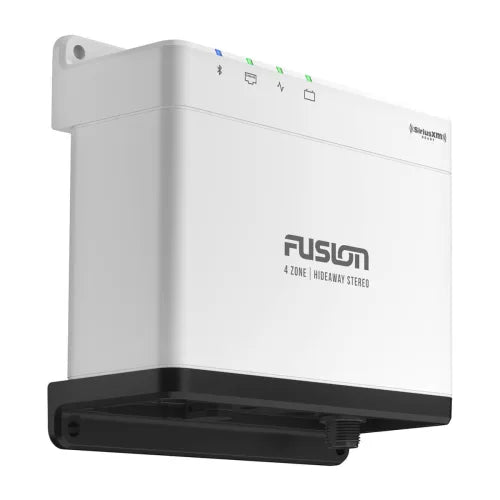

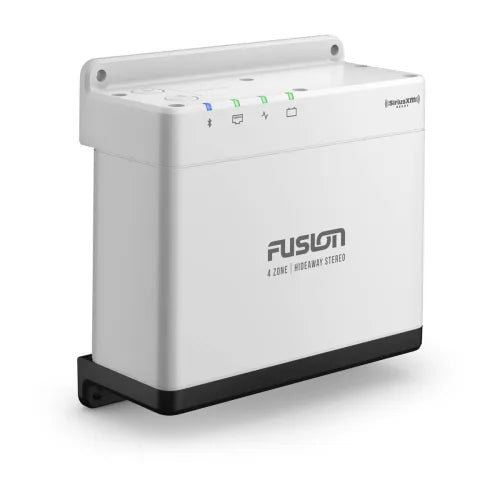

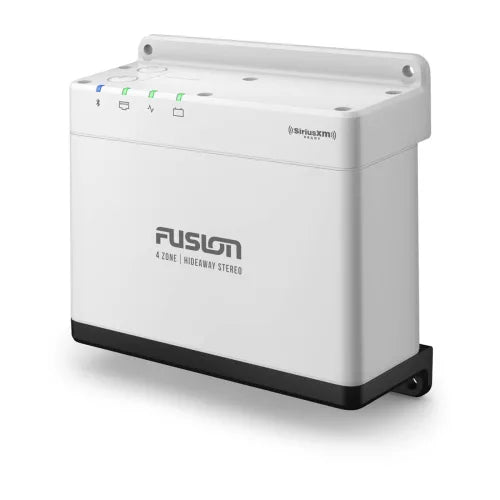

APOLLO™ MS-WB675: Compact Marine Hideaway Stereo with DSP & AirPlay 2
The **Fusion® Apollo™ MS-WB675** is a compact marine hideaway stereo that offers **exceptional audio performance** with **Digital Signal Processing (DSP)** technology and **AirPlay® 2** streaming. Designed for **four independent audio zones**, this stereo allows **full control** of sound throughout your vessel. **Wi-Fi audio streaming** is enabled via Ethernet, providing **high-quality audio** and **PartyBus™-Network** connectivity.
AWARD-WINNING AUDIO & 4-ZONE NETWORKING
The **Apollo MS-WB675** offers powerful audio control, designed to optimize the sound in **four separate zones** and simplify networking across your boat.
KEY AUDIO & NETWORKING FEATURES
- Fusion DSP: Built-in **Digital Signal Processing (DSP)** ensures superior sound quality with custom profiles, automatically optimizing audio for your boat’s environment.
- Multi-Zone™ Control: Control **4 independent audio zones**, with 4 zones of **RCA pre-outs** and **subwoofer outputs**, including 2 amplified speaker connections.
- Wi-Fi Connectivity (via Ethernet): **Ethernet connection** enables **Wi-Fi audio streaming** (including **AirPlay 2**) and **over-the-air software updates**.
- Power Output: Class-D amplifier delivers **43 W RMS x 4** (at 2 ohms) with **280 W peak power**.
DESIGN AND INTEGRATION
The **MS-WB675** is built to **Fusion’s True-Marine™** standards, ensuring it withstands marine environments while providing ease of integration into your vessel’s system.
- **Compact Design:** Hidden installation options allow the stereo to be placed in **storage lockers**, **helm consoles**, or other discreet compartments.
- **MFD Control:** Integrates seamlessly with **NMEA 2000®**, allowing you to control the stereo from **Garmin MFDs**.
- **Source Options:** Supports **AM/FM**, **Bluetooth®**, **AirPlay 2**, **digital optical input**, **AUX x1**, and **USB connections**.
- **Speed vs. Volume:** Automatically adjusts audio volume based on boat speed when connected to the **NMEA 2000® network**.
Inverell Boating Centre Expert Note:
The **Apollo MS-WB675** is the ultimate compact solution for boats, delivering **premium audio** with **four-zone control**. It’s perfect for larger vessels requiring Wi-Fi audio streaming, DSP, and robust **PartyBus™-Network** integration.
Specification in detail
Specification in detail
General & Physical
PART NUMBER: 010-02346-50
WATER RATING: IPX2 (when properly installed)
OPERATING VOLTAGE: 10.8 - 16 Vdc
CURRENT DRAW (MAX): 15 A
DIMENSIONS: 5.1" x 5.1" x 2.2" (130 x 130 x 56 mm)
WEIGHT: 1.05 lbs (475 g)
COMPASS SAFE DISTANCE: 5.9" (150 mm)
WARRANTY: 3 years
Audio Performance & Display
DISPLAY: 2.7″ Optically Bonded Colour LCD
RATED RMS POWER (2 Ω): 43 W x 4
PEAK POWER: 280 W
MULTI-ZONE TECHNOLOGY: 4 Zones
DSP: Built-in Digital Signal Processing (DSP) Yes

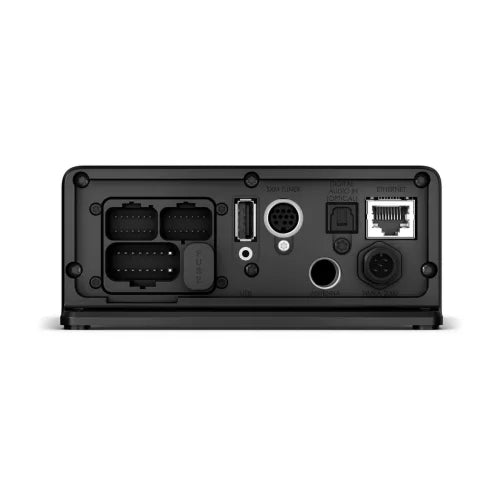

Networking & Connections
NETWORKING: NMEA 2000® (LEN 1), Ethernet (PartyBus™), Bluetooth®, ANT®
ETHERNET PORTS: 1
NMEA 2000® PORTS: 1
OPTICAL AUDIO INPUTS: 1
AUXILIARY INPUTS (RCA): 1
RCA OUTPUTS: 4 Zones (Line Out), 4 Subwoofer Outputs
Inverell Boating Centre Technical Summary: The **Apollo MS-WB675** is a **4-zone stereo** with **43W RMS** amplification. It offers **Fusion DSP**, **AirPlay 2**, **Wi-Fi streaming**, and **PartyBus networking**, making it a powerful audio hub for larger vessels.
