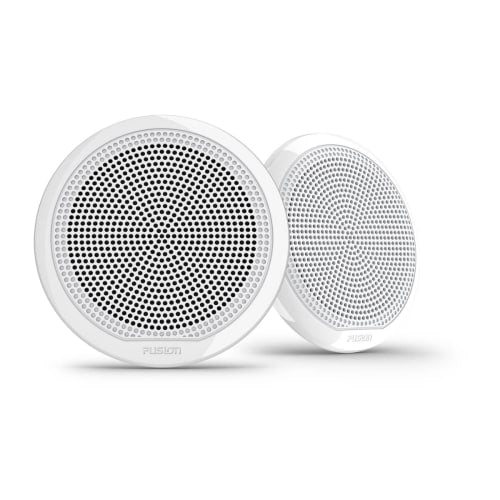

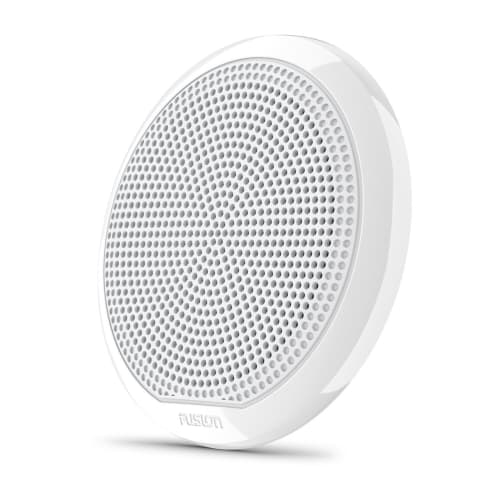

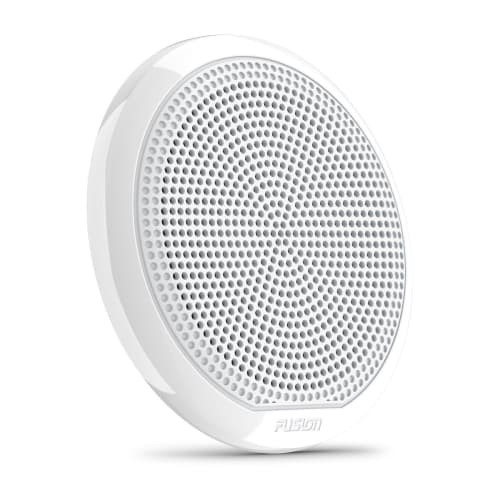

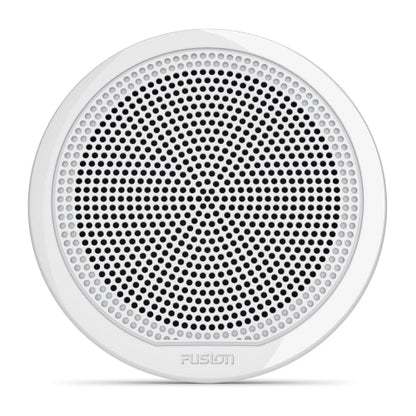

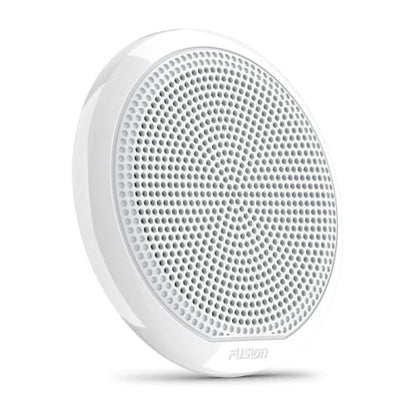

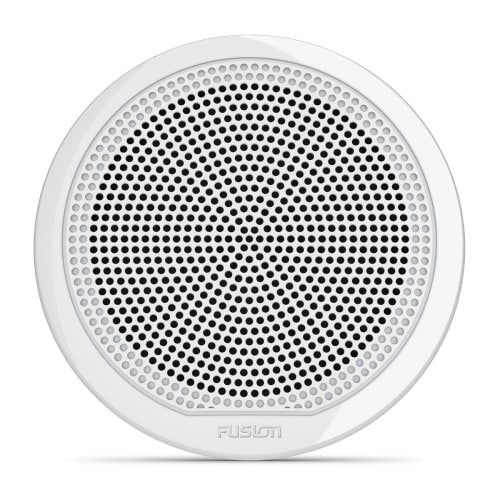

Fusion® EL Series 6.5″ 80-Watt Classic White Marine Speaker
The Fusion® EL Series 6.5″ 80-Watt Marine Speaker is designed to deliver quality sound in a compact, versatile package. With an easy-to-mount, shallow design, these speakers are ideal for small to mid-sized boats where space is at a premium but sound performance still matters.
COMPACT AND POWERFUL
Designed for easy installation, these speakers are built to fit most marine audio systems while still providing clear and balanced sound. Choose from multiple color and design options to match your boat’s aesthetic.
KEY FEATURES

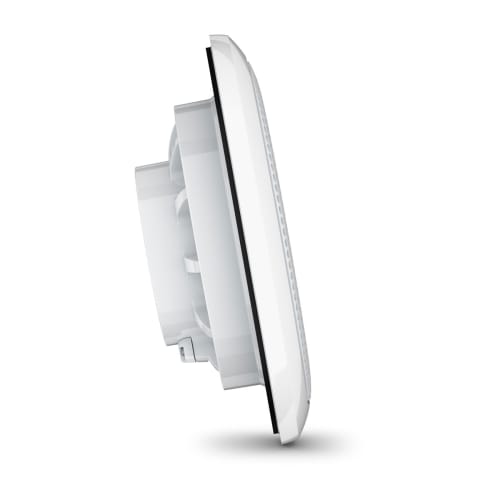

- Shallow Mount Design: Slim profile for easy installation with a mounting depth of only 43 mm (1.69″).
- Durable Construction: IP65-rated for resistance to water and dust, ensuring long-lasting performance.
- Full Range Sound: Provides clear and powerful audio with a frequency response of 45 Hz - 16 kHz.
- Versatile Mounting: Can be easily retrofitted to most existing 6.5″ speaker cutouts.
BUILT FOR MARINE ENVIRONMENTS
True-Marine™ design ensures these speakers are engineered to withstand harsh marine conditions, from saltwater exposure to UV rays.
- IP65-rated for water and dust protection.

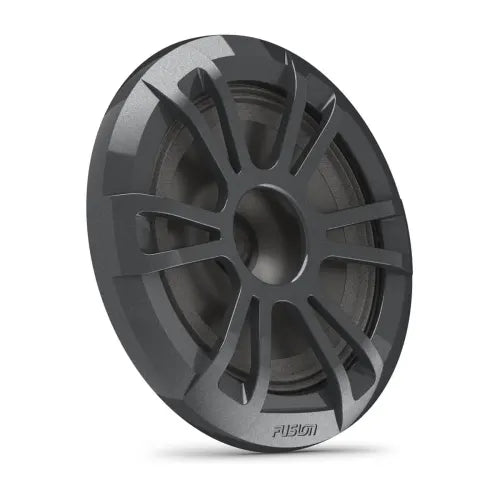

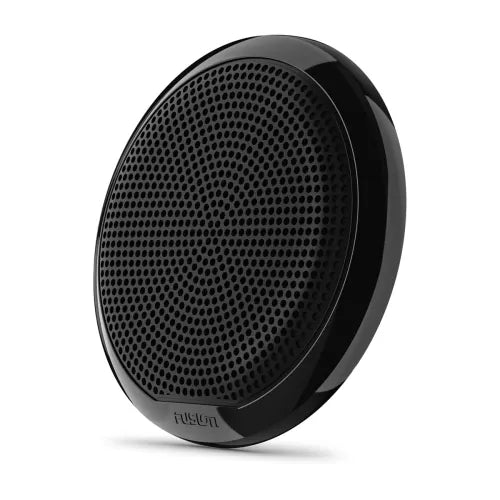

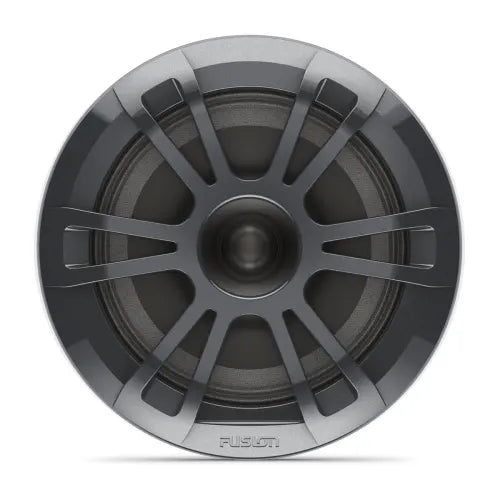

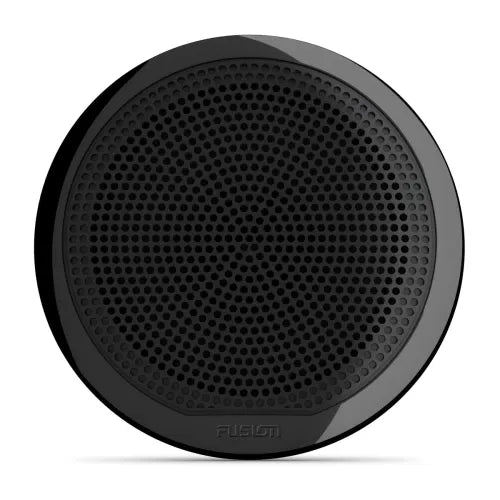

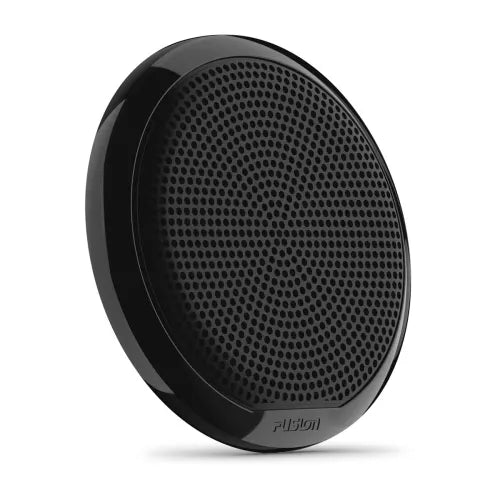

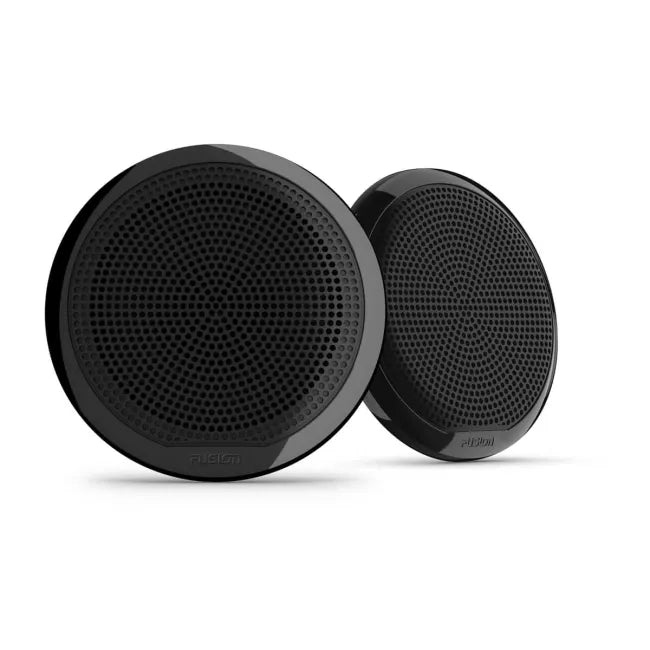

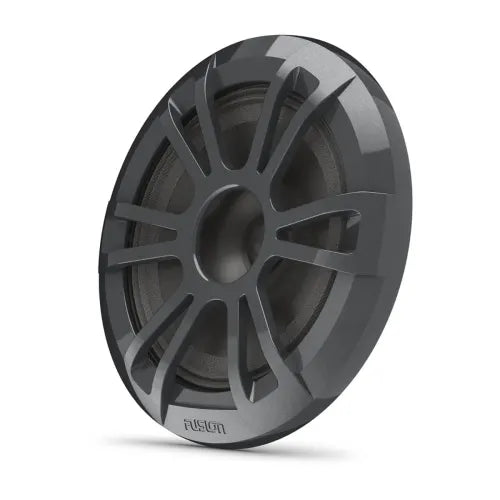

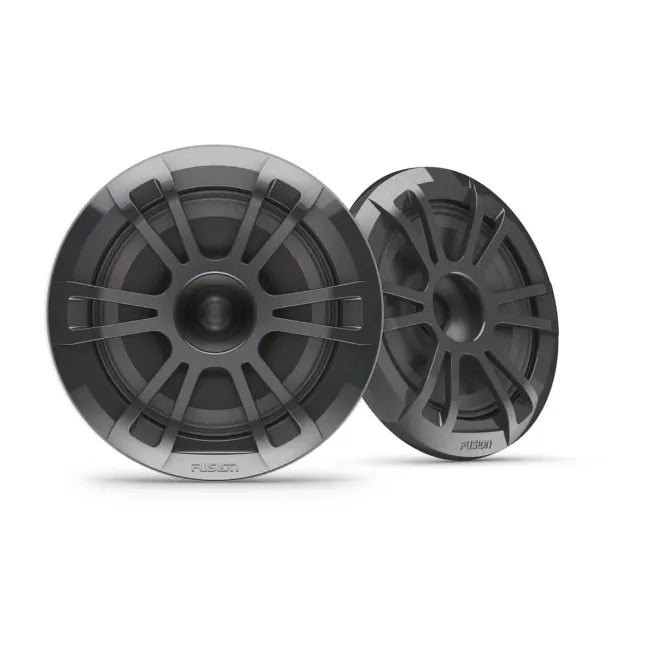

- Available in Classic White, Classic Black, or Sports Grey to match your boat’s aesthetic.
- Perfect for small to medium boats requiring space-efficient audio solutions.
Inverell Boating Centre Expert Note:
The Fusion® EL Series 6.5″ Marine Speakers are perfect for boat owners looking for excellent sound in a compact, easy-to-install package. Their shallow mount design makes them ideal for tight spaces, while the IP65 rating guarantees durability in the toughest conditions on the water.
Specification in detail
Specification in detail
General & Physical
PART NUMBER: 010-02080-02
SIZE: 6.5″
COLOUR OPTIONS: Classic White / Classic Black / Sports Grey
DIMENSIONS (DIAMETER × DEPTH): 176 × 57.5 mm (6.93″ × 2.26″)
WEIGHT: 0.57 kg (1.26 lbs)
WATER & DUST RATING: IP65
OPERATING TEMPERATURE: 0 – 50 °C (32 – 122 °F)
WARRANTY: 1 year
Audio Performance
PEAK POWER: 80 W
SENSITIVITY (1 W/1 M): 88 dB
FREQUENCY RESPONSE: 45 Hz – 16 kHz (±3 dB)
NOMINAL IMPEDANCE: 4 Ω
SPEAKER TYPE: Full Range
Materials & Build
CONE MATERIAL: Polypropylene cone with cloth surround
FRONTAL GRILLE PROTRUSION: 19 mm (0.75″)
COMPASS SAFE DISTANCE: 254 cm (100″)
Connections & Mounting
SPEAKER CONNECTIONS: Spade connectors
MOUNTING DIAMETER CLEARANCE: 130 mm (5.12″)
MOUNTING DEPTH CLEARANCE: 43 mm (1.69″)
Inverell Boating Centre Technical Summary:
The Fusion® EL Series 6.5″ Marine Speakers offer clear, full-range sound in a shallow, easy-to-mount design.
These speakers deliver excellent performance with a minimal profile, making them ideal for tight installations without sacrificing quality.
