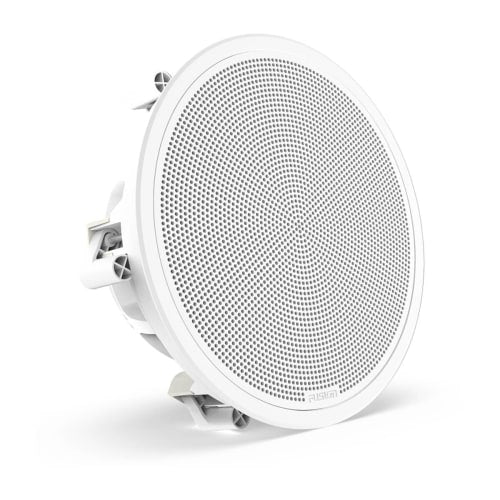

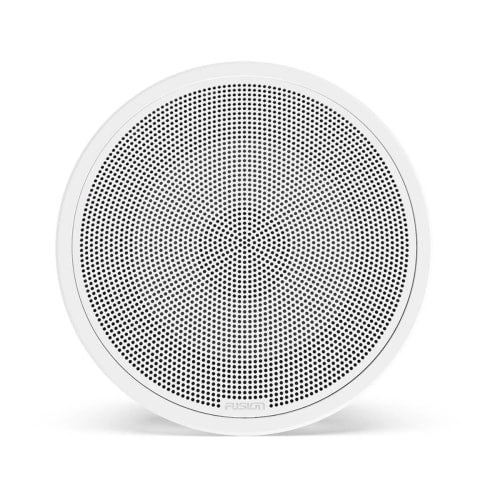

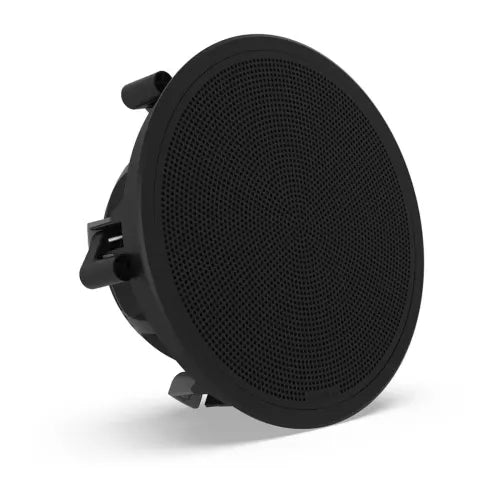

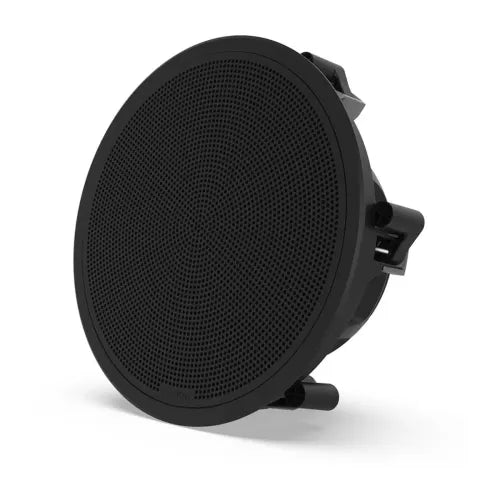

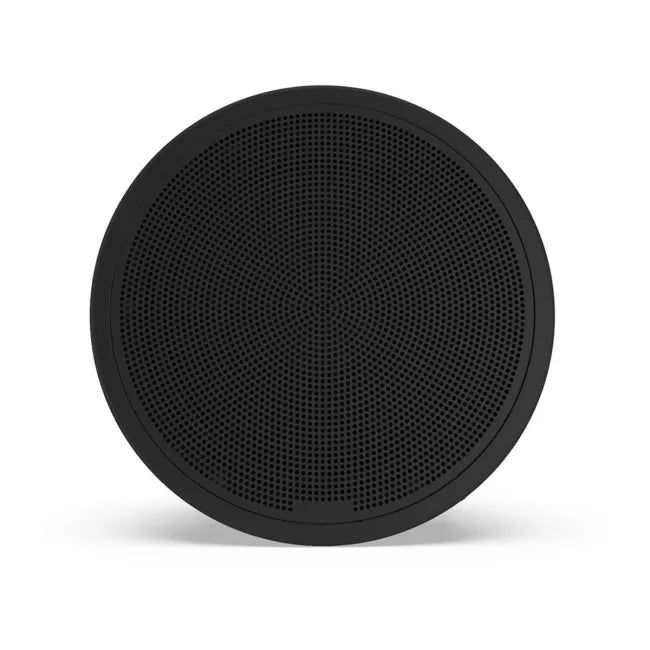

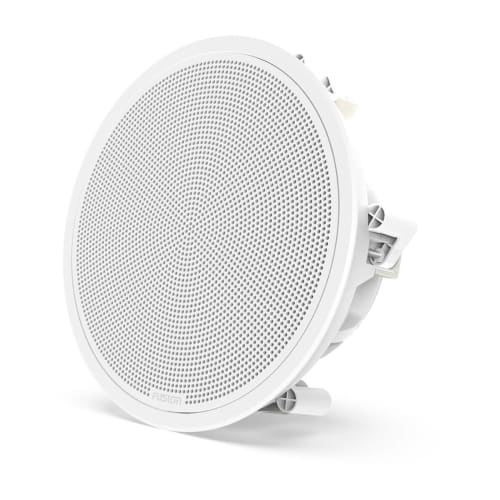

FM Series 10" Flush-Mount Marine Subwoofer – Deep Bass, Sleek Integration
The Fusion® FM Series 10" Marine Subwoofer delivers rich, powerful bass in a sleek, low-profile design. Engineered to Fusion’s *True-Marine™ standards*, this 400-watt subwoofer enhances your on-water audio experience with deep, resonant low frequencies — all within a clean, modern flush-mount frame that blends seamlessly with your vessel’s interior.
PURE BASS, MINIMAL DESIGN
Designed to deliver uncompromising sound and aesthetics, the FM Series subwoofer pairs *high-efficiency bass performance* with a *refined near-flat installation profile* — perfect for modern boat designs.
KEY FEATURES
- Powerful Bass Output: 400 W peak power and 120 W RMS ensure deep, high-quality low frequencies for any marine audio system.
- Innovative Flush-Mount Design: Low-profile 3 mm grille protrusion for a seamless, modern aesthetic.
- True-Marine™ Build: IP65-rated construction with resistance to water, salt, UV, and vibration for long-lasting durability.
- Simplified 2.1 System Compatibility: Easily integrates with Fusion Apollo™ stereos to create a 2.1 zone without external amplifiers.
ENGINEERED FOR MARINE EXCELLENCE
Built to Fusion’s *True-Marine™ standards*, this subwoofer exceeds industry benchmarks for UV, salt fog, and temperature testing — ensuring performance that lasts season after season.
- IP65-rated against dust and water ingress.
- Complies with ISO12216 standards for pressure and water resistance.
- Polypropylene cone with rubber surround for precise bass reproduction.
- Available in round or square, white or black grille options to match your vessel.
Inverell Boating Centre Expert Note:
The Fusion® FM Series 10" Round Flush-Mount Subwoofer delivers exceptional bass depth and clarity with a clean, integrated look. Its intelligent mounting system, durable materials, and easy 2.1-zone compatibility make it a top choice for stylish marine audio upgrades.
Specification in detail
Specification in detail
General & Physical
PART NUMBER: 010-02301-00
SIZE: 10″
COLOUR OPTIONS: Round White / Round Black / Square White / Square Black
DIMENSIONS (DIAMETER × DEPTH): 284 × 139.5 mm (11.18″ × 5.49″)
WEIGHT: 3 kg (6.61 lbs)
WATER & DUST RATING: IP65
OPERATING TEMPERATURE: 0° – 50 °C (32° – 122 °F)
WARRANTY: 3 years
Audio Performance
PEAK POWER: 400 W
RMS POWER: 120 W
SENSITIVITY (1 W/1 M): 87 dB
FREQUENCY RESPONSE: 30 Hz – 2 kHz (±3 dB)
NOMINAL IMPEDANCE: 4 Ω
SPEAKER TYPE: Subwoofer
Materials & Build
CONE MATERIAL: Polypropylene cone with rubber surround
FRONTAL GRILLE PROTRUSION: 3 mm (0.12″)
COMPASS SAFE DISTANCE: 381 cm (150″)
Connections & Mounting
SPEAKER CONNECTIONS: Spade connectors
MOUNTING DIAMETER CLEARANCE: 269 mm (10.59″)
MOUNTING DEPTH CLEARANCE: 140 mm (5.51″)
Inverell Boating Centre Technical Summary:
The Fusion® FM Series 10″ Flush-Mount Marine Subwoofer delivers robust low-end performance and seamless design integration.
Its 400 W peak power, high-efficiency cone, and intelligent mounting system make it ideal for boat owners seeking a premium, modern marine audio upgrade.
