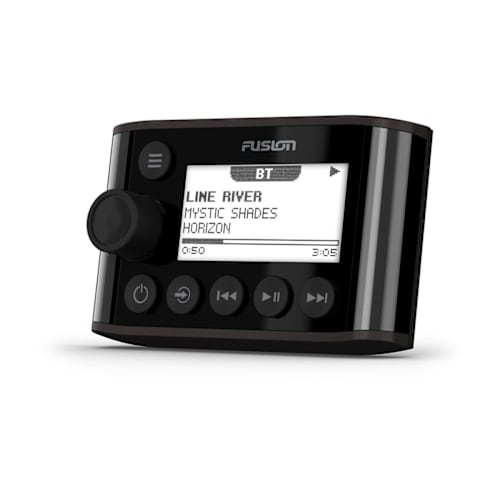

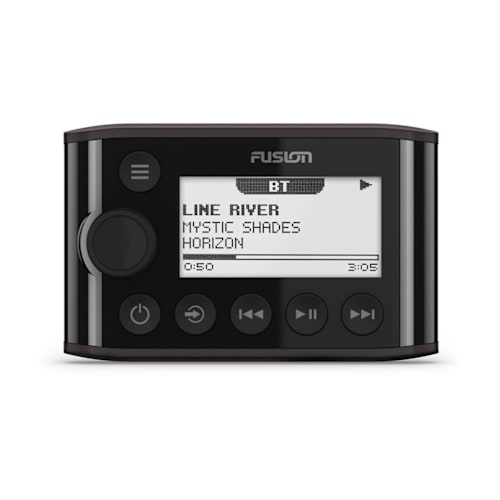

FUSION® MS-NRX300: NMEA 2000® Wired Audio Remote (Black)
The Fusion® MS-NRX300 is the perfect solution for localized audio control, allowing you to manage your marine entertainment system from any audio zone on board. Engineered to **TRUE-MARINE™ standards**, this wired remote is IPX7 rated and built to withstand salt fog, temperature, and UV. It features a bright **2.6-inch optically bonded monochrome LCD** and connects directly to the NMEA 2000® network via plug-and-play setup.
MULTI-ZONE CONTROL & NMEA 2000 REPEATER
The MS-NRX300 combines robust audio control with essential marine data display, functioning as an NMEA 2000 repeater.
KEY AUDIO & NETWORKING FEATURES
- Multi-Zone™ Control: Controls up to **4 audio zones** on board (dependent on host system), offering localized volume control and global source selection.
- NMEA 2000 Repeater: Displays compatible marine electronics data—including wind data, depth, speed, heading, and water temperature—directly on its screen.
- Wired Connection: Ensures reliable, non-interruptible control via the NMEA 2000 network.
- Installation:
Specification in detail
Specification in detail
General & Physical
PART NUMBER: 010-01628-04
DIMENSIONS (HxWxD): 2.76″ x 4.33″ x 1.97″ (70 x 110 x 50 mm)
WATER RATING: IPX7
OPERATING TEMP. RANGE: 0° to 50° C
Control & Display
DISPLAY: 2.6″ Optically Bonded Monochrome LCD
CONTROL ZONES: Up to 4 (Multi-Zone™ Technology)
CONTROL FUNCTIONS: Audio, LED Lighting
Networking & Electrical
CONNECTIVITY: NMEA 2000® (Wired), ANT®
POWER INPUT: 10.8 - 16 Vdc
CURRENT DRAW (MAX): 110 mA at 12 Vdc
WARRANTY: 3 years
Inverell Boating Centre Technical Summary: The MS-NRX300 is a dedicated, IPX7-rated NMEA 2000 audio remote. Its key technical advantage is its ability to function as an NMEA 2000 data repeater, displaying critical marine data (wind, depth, position) on its 2.6" monochrome LCD alongside robust multi-zone audio control.
