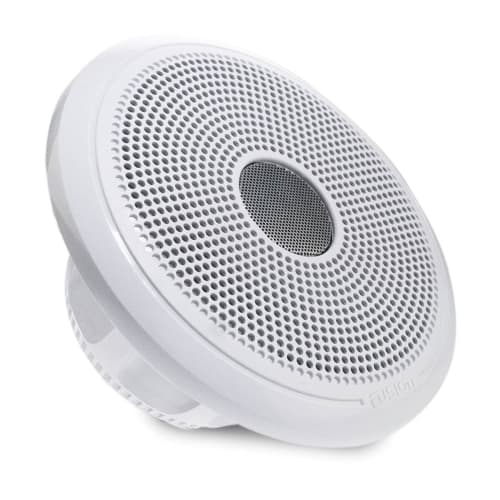

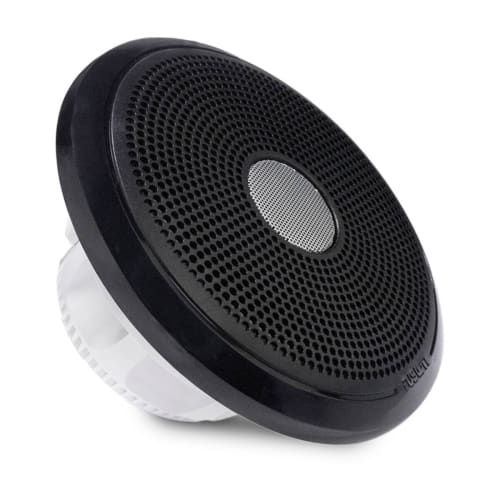

Fusion® XS Series Marine Speakers – 6.5" 200-Watt Classic Marine Speakers (Pair)
Bring *powerful sound and lasting durability* to your boat with the *Fusion® XS Series 6.5″ Classic Marine Speakers*. Engineered for clear, balanced audio in open-water environments, these 200-watt coaxial speakers combine *premium acoustic design* with *marine-ready construction* to deliver consistent performance season after season.
WHAT YOU'LL LOVE
Designed for boaters who expect more from their audio system, the XS Series provides *impressive sound quality*, *rugged durability,* and *modern styling* that fits any vessel’s design.
KEY FEATURES
- Powerful Audio: *200-watt peak power* and *50-watt RMS output* deliver dynamic, high-quality sound on the water.
- Marine-Grade Protection: *IP65 water and dust rating* ensures reliability against spray, UV, and salt exposure.
- Quality Construction: Built with *polypropylene cones* and *cloth surrounds* for long-lasting durability and crisp sound.

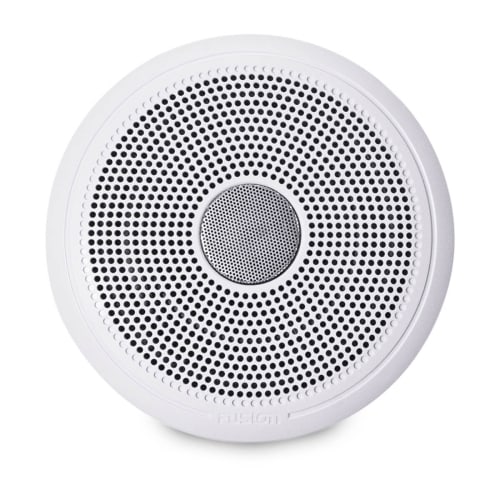

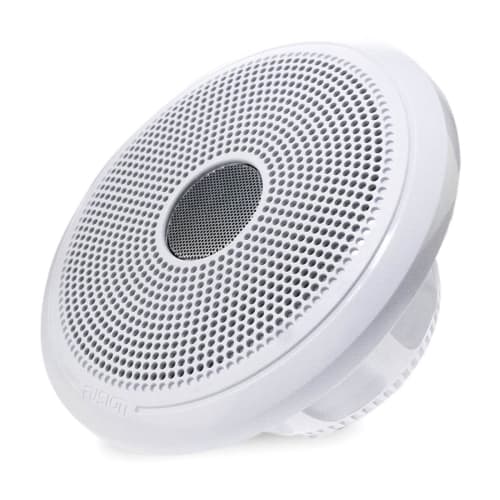

- Elegant Design: Classic white grille complements any boat interior for a *clean, timeless aesthetic*.
BUILT FOR LIFE ON THE WATER
The Fusion® XS Series has been *designed and tested to True-Marine™ standards* — guaranteeing dependable performance in harsh marine environments. Every component is salt fog, UV, and temperature tested for uncompromised durability.
- *IP65-certified* against water and dust ingress.
- *Aluminium dome tweeters* ensure smooth, detailed highs and balanced midrange tones.
- *Simple installation* with spade connectors for secure speaker wiring.
Expert Note:
The *Fusion® XS Series 6.5″ Classic Speakers* offer a perfect mix of *clarity, efficiency, and reliability*. Ideal for smaller to mid-sized vessels, they deliver *signature Fusion sound quality* without compromise.
Specification in detail
Specification in detail
General & Physical
PART NUMBER: 010-02196-00
SIZE: 6.5" Classic White
DIMENSIONS (DIAMETER × DEPTH): 177 × 81 mm (6.97" × 3.19")
WEIGHT: 1.2 kg (2.65 lbs)
CONFIGURATION: Coaxial
RATING: IP65 water and dust resistant

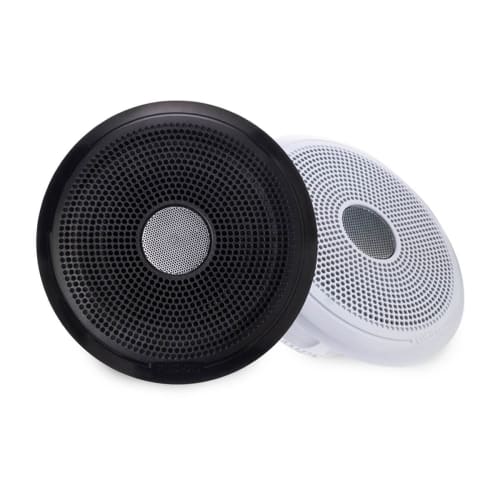

COLOUR: Classic White (also available in Sports variants)
Audio Performance
PEAK POWER: 200 W
RMS POWER: 50 W
SENSITIVITY: 91 dB
FREQUENCY RESPONSE: 80 Hz – 18 kHz
NOMINAL IMPEDANCE: 4 Ω
RECOMMENDED AMPLIFIER POWER: 20–150 W RMS / Channel
Materials & Build
CONE MATERIAL: Polypropylene cone with cloth surround
TWEETER TYPE: Aluminium dome
CROSSOVER: Sealed components for marine protection
COMPASS SAFE DISTANCE: 310 cm (122")
OPERATING TEMPERATURE: 0°–50°C (32°–122°F)
Mounting Dimensions
MOUNTING DIAMETER CLEARANCE: 135 mm (5.31")
MOUNTING DEPTH CLEARANCE: 67 mm (2.64")
FRONT GRILLE PROTRUSION: 19 mm (0.75")
Expert Summary: The *Fusion® XS Series 6.5" Classic Marine Speakers* deliver *clean mids, crisp highs, and deep low-end response* in a tough, weatherproof design. Perfect for both cruisers and sport boats that demand quality sound without compromise.
