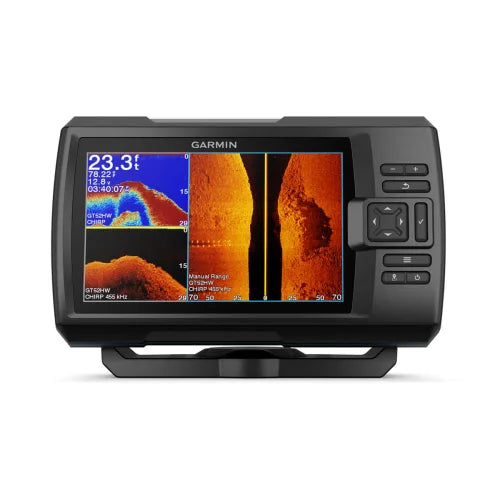

STRIKER™ VIVID 7sv: 7-inch Fishfinder with SideVü, ClearVü & GPS
The Garmin STRIKER Vivid 7sv delivers a perfect balance of screen size and professional sonar capability. Featuring a high-resolution 7-inch display, this unit includes all three scanning technologies—Traditional, ClearVü, and SideVü—powered by the included **GT52HW-TM Transducer**.[1] It’s the ultimate combination unit for serious inshore and coastal anglers who demand maximum coverage and clarity.
MAXIMUM CLARITY, MAXIMUM COVERAGE
The STRIKER Vivid 7sv uses **7 new vivid color options** to provide superior contrast, making it exceptionally easy to distinguish fish arches from structure, even in bright Australian sunlight.
THREE-WAY SONAR ADVANTAGE (GT52HW-TM INCLUDED) [1]
- SideVü™ Scanning Sonar: Scan horizontally up to 76 meters (250 feet) on either side of your boat to cover wide areas quickly.
- ClearVü™ Scanning Sonar: Provides near-photographic detail of objects and fish directly beneath the hull.
- CHIRP Traditional Sonar: Superior target separation for locating fish arches in the water column.
HIGH-SENSITIVITY GPS & CUSTOM MAPPING
The built-in, high-sensitivity GPS allows you to reliably **mark hot spots and anchor points**. Crucially, this unit is ready for personalized mapping of your secret fishing grounds:
- Quickdraw™ Contours: Easily create and store up to 2 million acres of custom **1-foot (0.3m) contour maps** of any lake or coastal area you fish.
- Wi-Fi® Connectivity: Use the ActiveCaptain® app for software update notifications, smart device pairing, and accessing shared community map data.
WHAT’S INCLUDED & EXPERT NOTE
The STRIKER Vivid 7sv includes all mounting hardware for a quick setup.
In the Box:
- STRIKER™ Vivid 7sv Fishfinder
- GT52HW-TM Transducer (Traditional CHIRP, ClearVü, SideVü) [1]
- Transom and Trolling Motor Mounting Hardware
- Power/Data Cable and Tilt/Swivel Mount
Inverell Boating Centre Expert Note:
This 7-inch model offers the ideal screen size for vessels with limited dash space, without compromising the capability of SideVü scanning technology. As an **Authorized Dealer**, we verify that your included GT52HW-TM transducer is correctly matched and supported by the Australian warranty.
Specification in detail
Specification in detail
General & Physical
DIMENSIONS: 9.3” x 5.5” x 2.3” (23.5 x 14.0 x 5.8 cm)
WEIGHT: 1.7 lbs (0.8 kg)
WATER RATING: IPX7 (Submersible)
DISPLAY SIZE: 7.0" diag (17.8 cm)
DISPLAY RESOLUTION: 800 x 480 pixels
INPUT TYPE: Keyed
MOUNTING OPTIONS: Flush, Tilt/Swivel
Sonar Capabilities
SONAR TYPES: Traditional CHIRP, ClearVü™, SideVü™
TRANSDUCER INCLUDED: GT52HW-TM [1]
TRANSMIT POWER: 500 W (RMS)
TRADITIONAL FREQUENCY: 50/77/200 kHz CHIRP (mid and high)
SCANNING FREQUENCY: ClearVü/SideVü: 260/455/800 kHz
BOTTOM LOCK: Shows return from the bottom up
Navigation & Memory
WAYPOINTS / FAVORITES: 5,000
TRACK POINTS: 50,000
NAVIGATION ROUTES: 100
GPS / MAPPING: Integrated GPS Receiver, Garmin Quickdraw™ Contours
WAAS SUPPORT: Yes
Power & Connections
POWER INPUT: 12 to 20 Vdc
TYPICAL CURRENT DRAW: 0.67 A @ 12V (Listed at 0.55A in additional specs)
MAX CURRENT DRAW: 1.5 A
POWER CONSUMPTION: 8.0 W
TRANSDUCER PORTS: 2 (4-pin Traditional/ClearVü and 4-pin SideVü)
WIRELESS CONNECTIVITY: Built-in Wi-Fi® (ActiveCaptain® App)
Inverell Boating Centre Technical Summary: The STRIKER Vivid 7sv is lightweight (0.8 kg) and highly efficient, ensuring minimal power draw (typically 0.67A) while providing a robust 7-inch display for maximizing sonar clarity and coverage.
