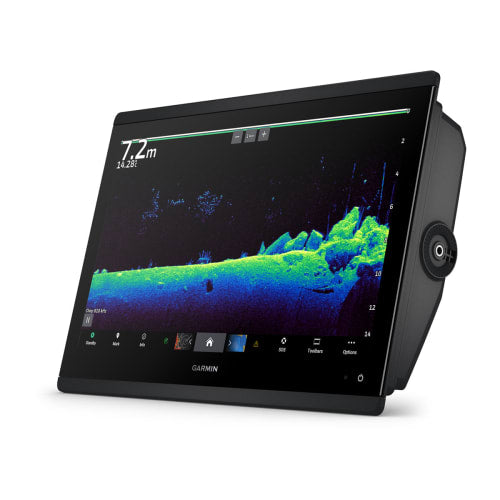

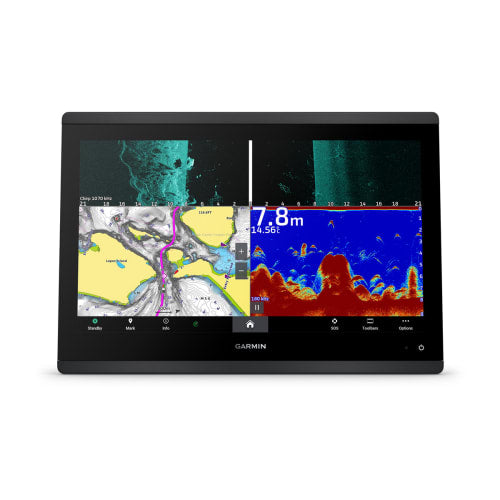

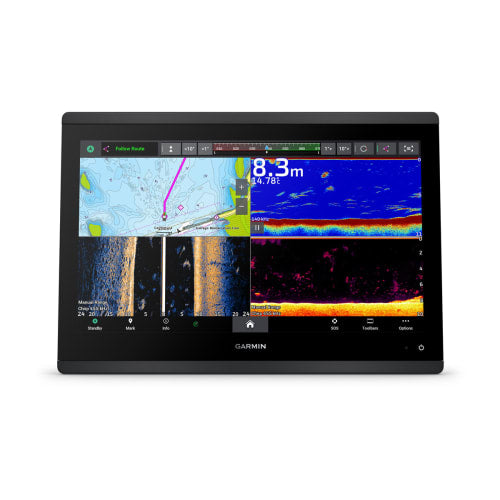

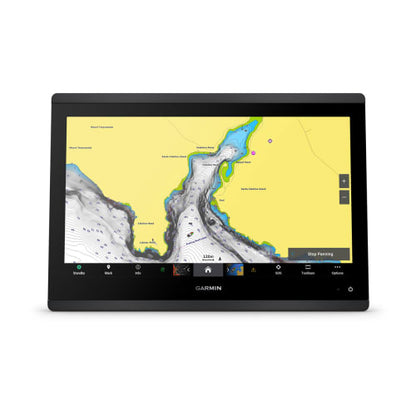

    GPSMAP® 1653xsv: Advanced Chartplotter with Built-in CHIRP Sonar and Mapping



            The **GPSMAP 1653xsv** offers a connected helm experience with its sleek design, powerful processing, and upgraded **IPS display**. This advanced 16-inch chartplotter integrates seamlessly into your Garmin marine system, providing both superior navigation and comprehensive built-in sonar capabilities, including **Ultra High-Definition SideVü™ and ClearVü™** scanning sonars, plus support for **1 kW traditional CHIRP sonar**.




    SHARPER VIEW AND COMPLETE NETWORK INTEGRATION



            The large, high-resolution display and advanced networking features allow you to build a powerful and integrated command center for fishing and navigation.




    CORE FEATURES & HIGH PERFORMANCE


    •
    •                 Display Quality: Features a **16-inch Full HD (1920x1080) optically bonded IPS display** for excellent clarity and readability from any angle, even in direct sunlight.
    •

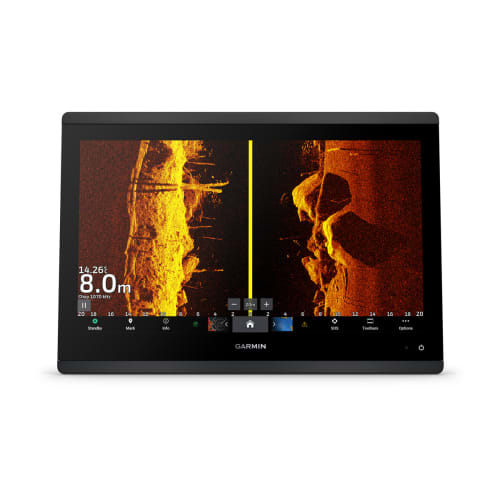

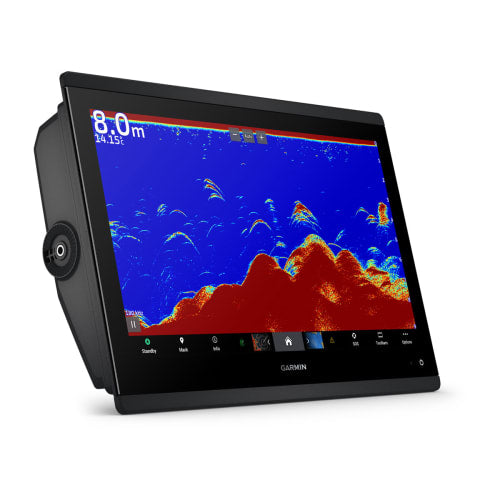

    •                 Advanced Sonar: Built-in support for **Ultra High-Definition ClearVü/SideVü (260/455/800/1000/1200 kHz)**, **1 kW Traditional CHIRP**, and compatibility with **Panoptix™/LiveScope™** live sonar (transducers sold separately).
    •
    •                 Networking: Robust connectivity with **2 Garmin Marine Network ports**, **NMEA 2000®**, **NMEA 0183**, **J1939**, and **ANT®/Wi-Fi®** for total integration of radar, engines, digital switching (OneHelm™), and more.
    •

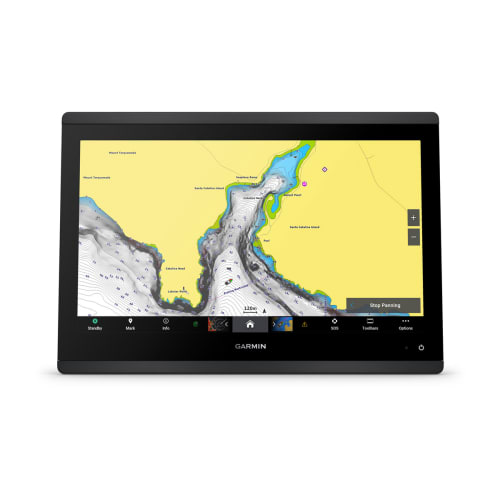

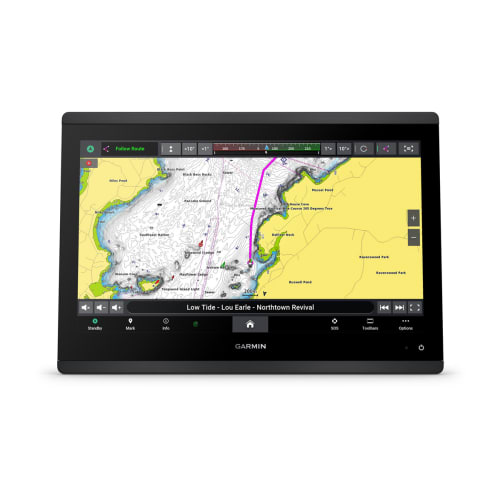

    •                 Mapping and Guidance: Includes preloaded **Garmin Navionics+™** (Inland & Coastal) with **Auto Guidance+™** technology. Supports optional Vision+ charts and relief shading.
    •



    FISHING AND SAILING INTELLIGENCE


    •
    •             **Trolling Motor & Anchor Control:** Deep integration with Force® Trolling Motors and Power-Pole® shallow water anchors for advanced boat positioning.
    •
    •             **Sailing Features:** Full suite of **Garmin SailAssist™** tools, including sailing polars, laylines, and race start guidance.
    •



    Inverell Boating Centre Expert Note:



                The 1653xsv is a flagship multi-function display, capable of powering your entire helm. Its combination of a large FHD IPS display, 1 kW built-in sonar power, and multiple network ports makes it an excellent choice for serious offshore and tournament anglers.



    Specification in detail

    General & Display


            PART NUMBER: 010-02919-04

            DIMENSIONS (W x H x D): 38.4 x 26.2 x 7.6 cm (15.1″ x 10.3″ x 3.0″)

            WEIGHT: 4.4 kg

            WATER RATING: IPX7

            DISPLAY SIZE: 39.7 cm diagonal (15.6″ diagonal)

            DISPLAY TYPE/RESOLUTION: FHD, IPS (1920 x 1080 pixels)

            INPUT: Touchscreen


    Sonar & Mapping


            POWER OUTPUT: 1 kW

            TRADITIONAL SONAR: Built-in (Single CHIRP, 50/70/83/200 kHz, L, M, H CHIRP)

            SCANNING SONAR: Built-in Ultra HD ClearVü/SideVü (260/455/800/1000/1200 kHz)

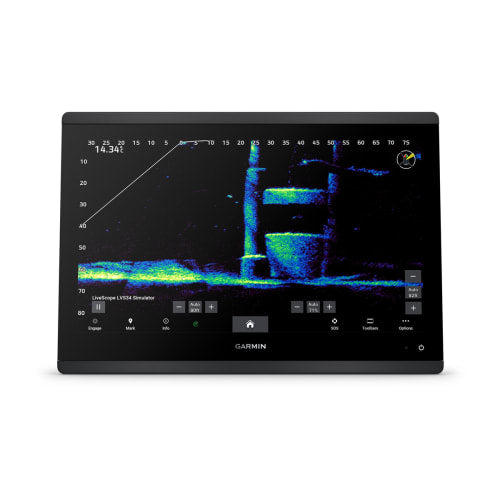

            LIVESCOPE/PANOPTIX™: Supported

            BUILT-IN MAPPING: Garmin Navionics+™ (Inland & Coastal)

            GPS/RECEIVER: 10 Hz (GPS, GLONASS, GALILEO, WAAS supported)

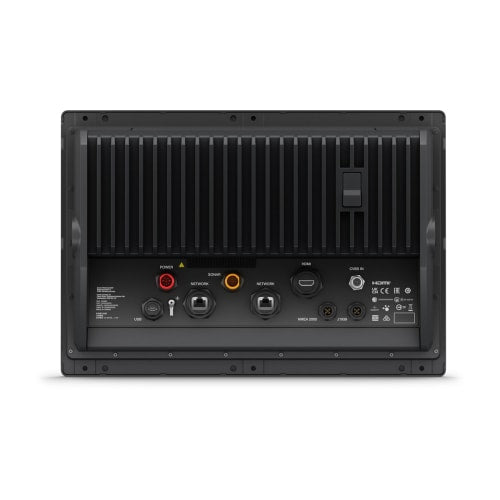

    Electrical & Connections


            POWER INPUT: 10 to 32 Vdc

            MAX POWER USAGE: 46.0W (at 10 VDC)

            GARMIN MARINE NETWORK PORTS: 2

            TRANSDUCER PORTS: 1 (12-pin)

            NMEA 2000® PORTS: 1

            VIDEO I/O: 1 BNC Composite Input, 1 HDMI Output



            Inverell Boating Centre Technical Summary: The GPSMAP 1653xsv is defined by its 16" FHD IPS touchscreen, 1kW built-in sonar, and dual Garmin Marine Network ports. It features a high-speed 10 Hz receiver and supports extensive networking for total helm integration via NMEA 2000 and J1939.
