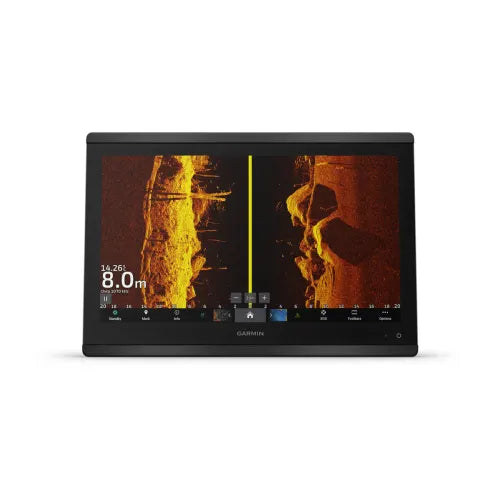

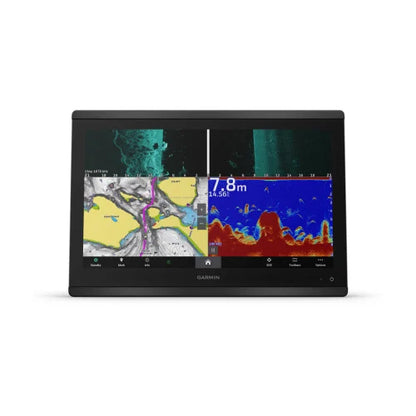

    GPSMAP® 8416xsv: 16-inch FHD IPS Chartplotter/Sonar Combo (1kW Built-in)

    The GPSMAP® 8416xsv delivers serious MFD performance in a streamlined combo-size package. Designed for the most demanding anglers and cruisers, this easy-to-install unit features a stunning **16-inch Full HD (FHD) IPS touchscreen display** for superior clarity and wider viewing angles, even with polarized sunglasses. The 'xsv' designation means it includes powerful built-in sonar capabilities, making it the non-negotiable command center for any complex marine system.


    BUILT-IN SONAR & HIGH-DEFINITION DISPLAY

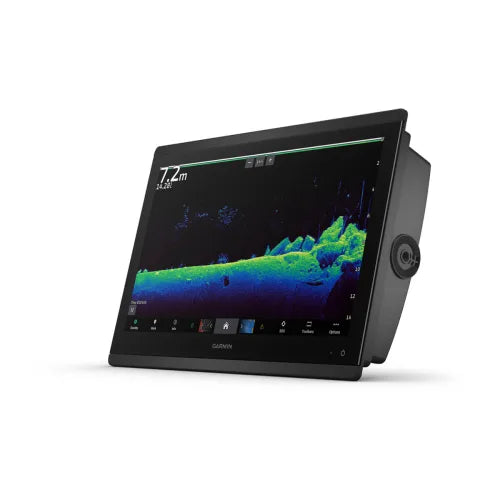

    The 8416xsv provides powerful sonar support right out of the box, requiring only the addition of compatible transducers (sold separately) to achieve professional-grade fishfinding.

    KEY SONAR & DISPLAY FEATURES

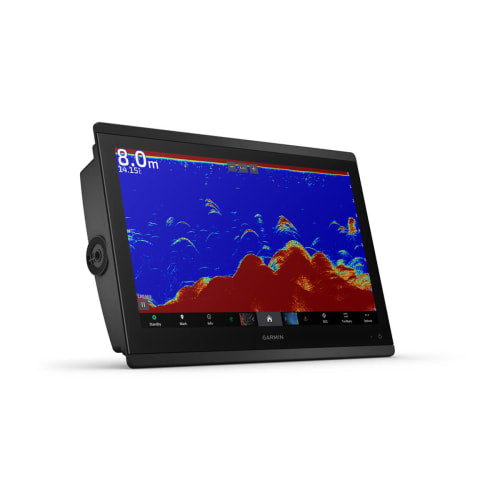

    • 1 kW Dual-Channel CHIRP: Built-in support for 1-kW Dual-Channel CHIRP traditional sonar for superior target separation and deepwater performance (L, M, H CHIRP).
    • Scanning Sonar Support: Built-in support for ClearVü and SideVü scanning sonars (up to 1,000 feet) to see photo-like images below and around your boat.
    • LiveScope™ Ready: Fully compatible with the entire lineup of Panoptix™ and Panoptix LiveScope™ easy-to-interpret live sonar (transducers sold separately). [1]

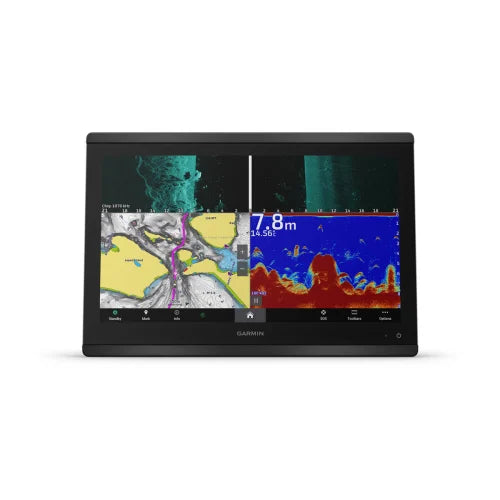

    • Full HD IPS Touchscreen: The 1920 x 1080 resolution display provides superior clarity and vibrant colors, making complex chart data and sonar returns easy to read.

    COMPLETE VESSEL NETWORKING

    The GPSMAP 8416xsv is designed to connect to virtually everything onboard, allowing you to easily build an extensive marine system:

    • Garmin Marine Network: Features **two network ports** to share data (maps, sonar, radar, IP camera video) with multiple compatible devices.
    • NMEA & J1939: Connects to autopilots, digital switching systems (OneHelm™), FUSION-Link™ audio [2], engine monitoring via J1939, and more from a single screen.
    • SmartMode™ Controls: Provides quick, one-touch access to critical information needed during high-stress situations such as docking.

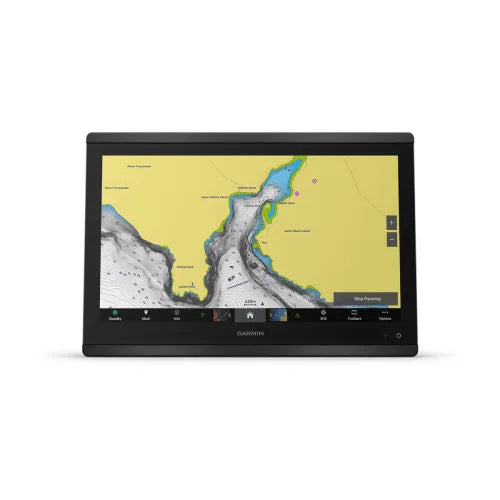

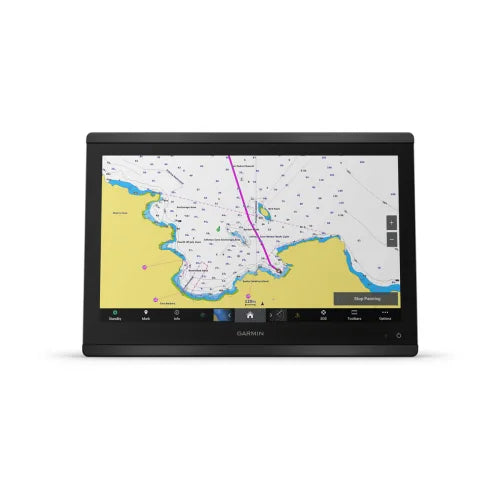

    • Advanced Charting: Supports optional Garmin Navionics+™ and premium Garmin Navionics Vision+™ cartography for integrated coastal/inland content and Auto Guidance+™ technology.

    Hard Rig Marine Expert Note:

    The 8416xsv is a powerful MFD, distinguished by its built-in 1kW sonar processor, eliminating the need for an external GSD black box for traditional CHIRP. It features two Garmin Network Ports and dedicated 8-pin and 12-pin transducer ports, confirming its role as a robust standalone command station for complex transducer setups.

    Specification in detail

    General & Display


    DIMENSIONS: 15.1" x 10.3" x 3" (38.5 cm x 26.3 cm x 7.6 cm)

    WEIGHT: 9.6 lbs (4.4 kg)

    WATER RATING: IPX7 (Submersible)

    DISPLAY TYPE: FHD, IPS Touchscreen

    DISPLAY SIZE: 15.6" diagonal (39.7 cm)

    DISPLAY RESOLUTION: 1920 x 1080 pixels (Full HD)

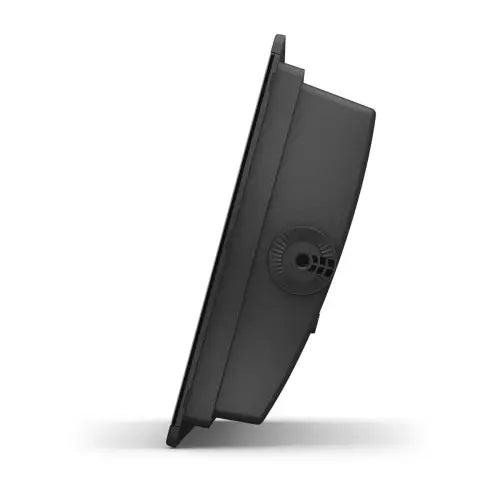

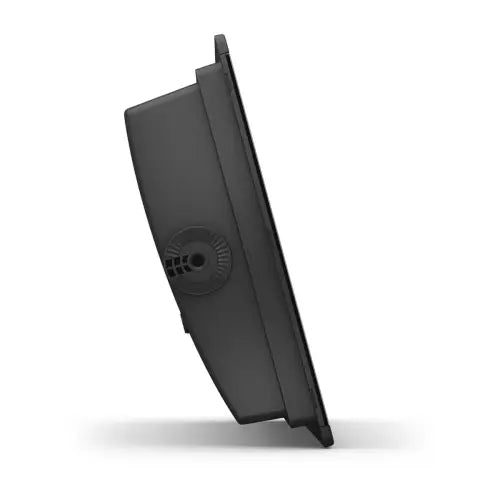

    MOUNTING OPTIONS: Flat/Flush or Bail

    Sonar Capabilities (Built-in)


    TRADITIONAL SONAR: Built-in 1kW Dual-Channel CHIRP (70/83/200 kHz, L, M, H CHIRP)

    CLEARVÜ / SIDEVÜ: Built-in 260/455/800/1000/1200 kHz

    LIVESCOPE SUPPORT: Yes (Requires external transducer/black box)

    Navigation & Memory


    GPS RECEIVER: 10 Hz (GPS, GLONASS, GALILEO)

    WAYPOINTS / TRACK POINTS: 5,000 / 50,000

    DATA CARDS: Accepts 2 microSD cards

    MAPPING SUPPORT: Garmin Navionics+™ / Vision+™, BlueChart G3, Quickdraw Contours

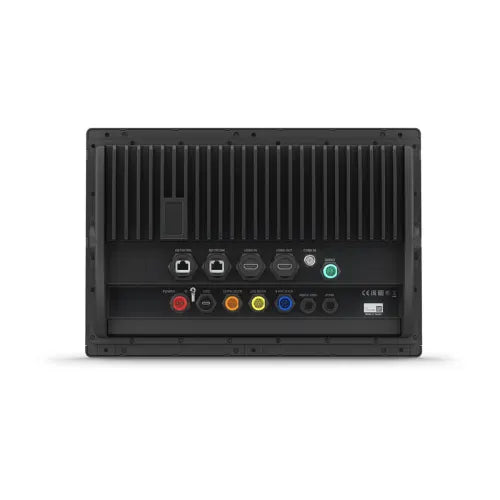

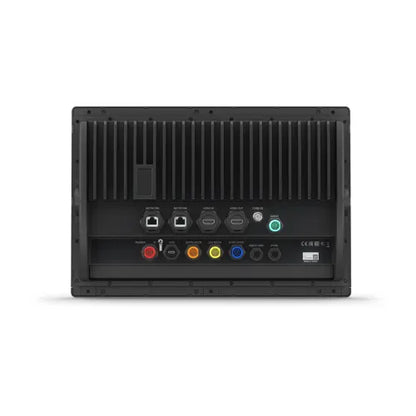

    Connectivity & Electrical


    GARMIN MARINE NETWORK PORTS: 2

    NMEA 2000® PORTS: 1

    TRANSDUCER PORTS: 1 (8-pin), 1 (12-pin scanning sonar)

    VIDEO PORTS: 1 Composite In (BNC), 1 HDMI In, 1 HDMI Out

    J1939 PORTS: 1

    TYPICAL CURRENT DRAW: 1.3 A @ 12 Vdc

    MAXIMUM POWER USAGE: 52.1 W


    Hard Rig Marine Technical Summary: The 8416xsv is a highly capable MFD combo, featuring a brilliant 16-inch FHD IPS display and built-in 1kW sonar, offering a cleaner installation by eliminating the need for a separate GSD module. The dual Garmin Network Ports and robust video connectivity (HDMI In/Out) make it ideal for high-end, multi-display helm setups.
