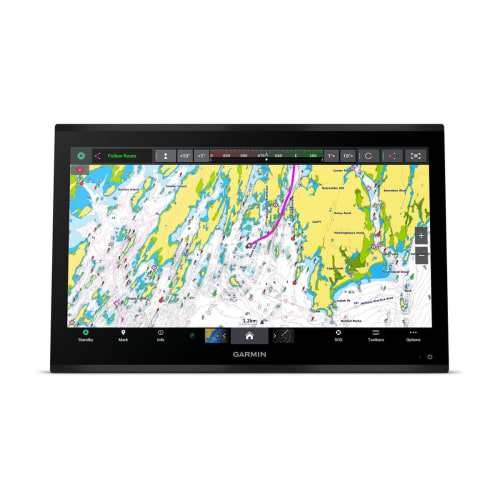

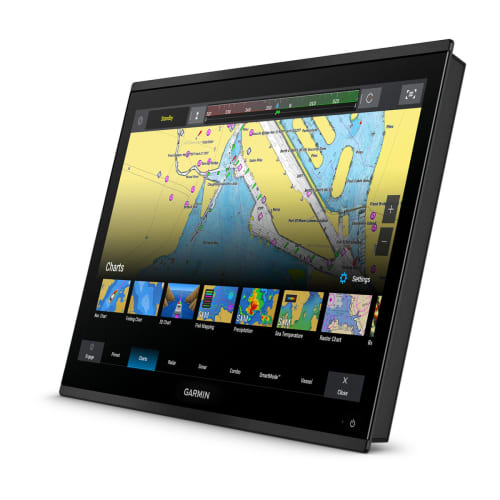

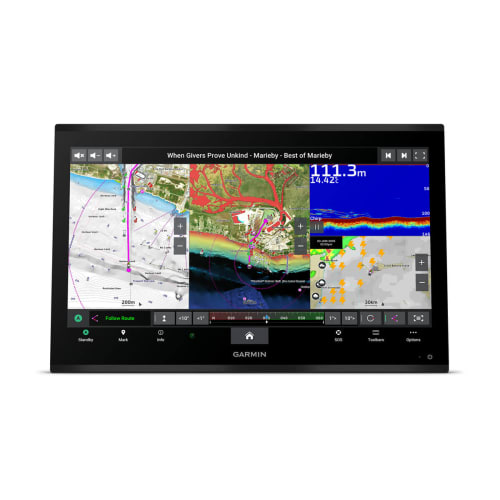

GPSMAP® 9024: 24-inch Premium 4K Chartplotter with Garmin BlueNet™ Network

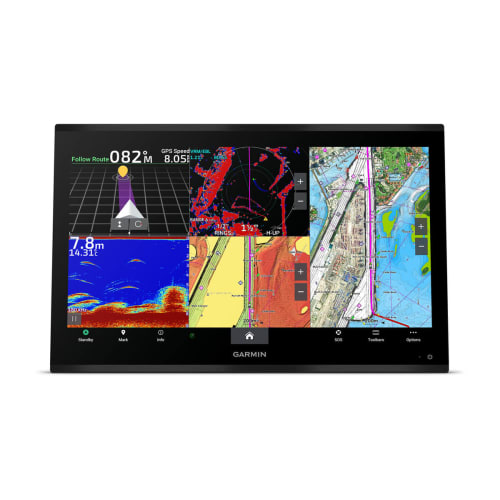

The GPSMAP® 9024 is engineered for the ultimate command experience, featuring a massive **24-inch integrated 4K resolution touchscreen** display. This chartplotter brings unmatched clarity and luxury to large helms, supporting processing speeds up to **seven times faster** than previous generations. It leverages **Gigabit speeds on the Garmin BlueNet™ Network** to create the most extensive, high-speed ecosystem for radar, sonar, and video integration.
4K CLARITY, GIGABIT NETWORKING, AND LUXURY CONTROL
This premium MFD is built for absolute performance, delivering stunning visual detail and immediate responsiveness across all critical functions.
KEY PREMIUM FEATURES
- 4K IPS Display: The sunlight-readable, 4K resolution (3840 x 2160) IPS touchscreen provides superior clarity for mapping and high-definition sonar viewing.

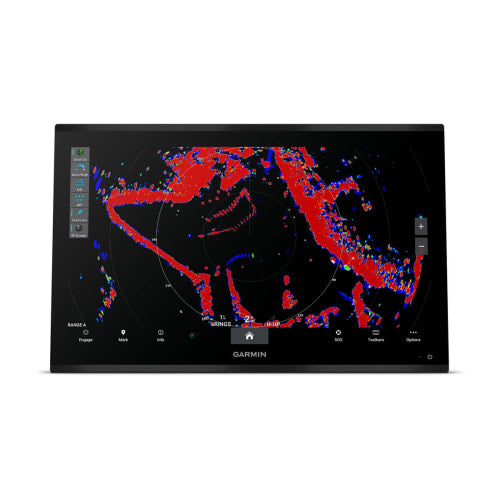

- Garmin BlueNet™ Network: Built with **four BlueNet ports** to support gigabit networking speeds, eliminating lag when managing multiple high-data-rate accessories (e.g., Radar, LiveScope [1]).

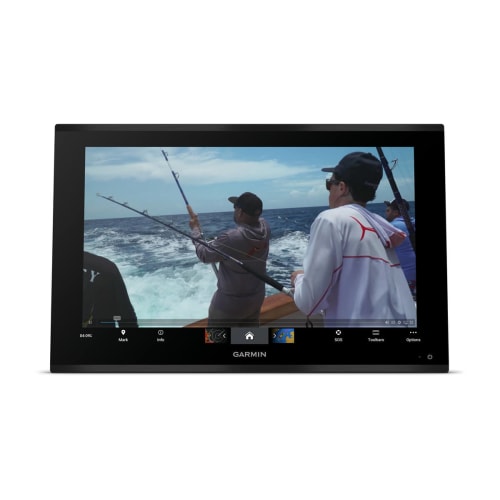

- Video and Audio Integration: Features multiple HDMI inputs and one HDMI output (HDCP compliant) for seamless integration with onboard entertainment and security systems.
ADVANCED SYSTEM INTEGRATION
The 9024 takes command through comprehensive digital system integrations via wired and wireless connections:

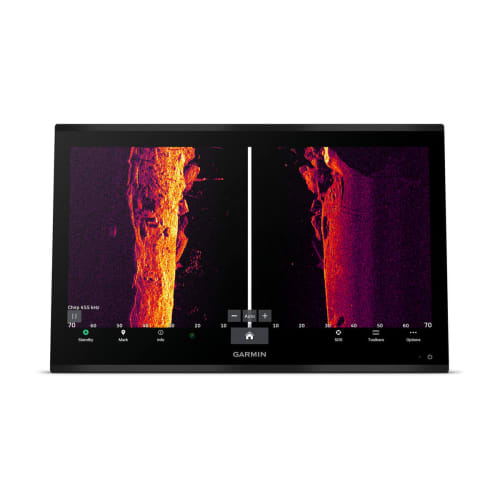

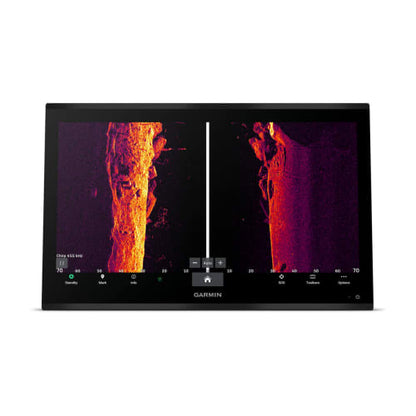

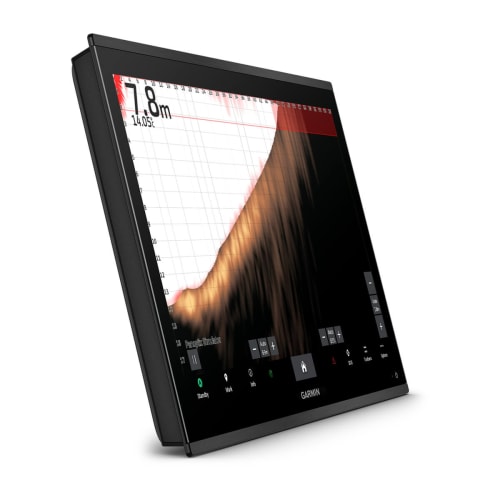

- Sonar Support: Supports high-definition traditional, ClearVü, SideVü, Panoptix™, and LiveScope™ sonar via compatible external black box modules (GSD™ [1], GCV™).

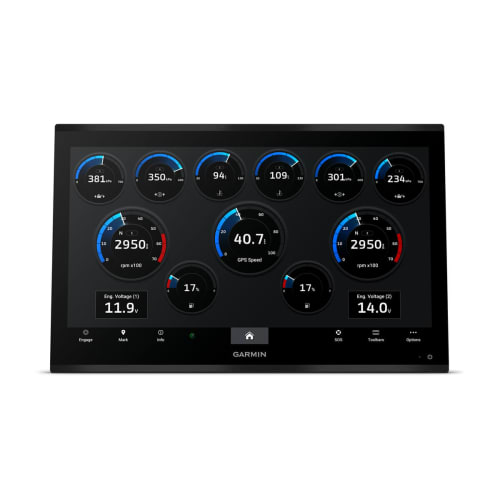

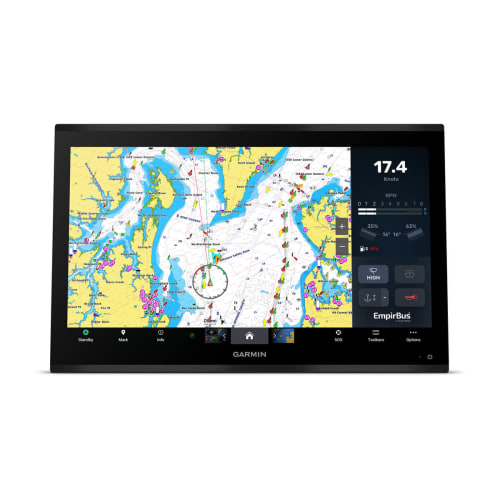

- Digital Switching: Utilizes NMEA 2000® and NMEA 0183 networks, alongside J1939 connectivity, to monitor engines, integrate autopilots, and control digital switching systems.
- Connectivity: Features Wi-Fi®, ANT®, and dual USB-C ports for charging and data transfer, ensuring connectivity with smartwatches and mobile devices.
Inverell Boating Centre Expert Note:
The GPSMAP 9024 is suitable for flagship vessels requiring exceptional processing power. Its substantial typical current draw (6.5A @ 12V) is necessary to power the large 4K display and manage the constant flow of gigabit network data. The four Garmin BlueNet ports confirm its role as the central, non-negotiable hub for the largest and most demanding marine networks.
Specification in detail
Specification in detail
General & Display
DIMENSIONS: 22.7″ x 14.8″ x 2.7″ (57.6 cm x 37.6 cm x 6.9 cm)
WEIGHT: 9.34 kg
WATER RATING: IPX7 (Submersible)
DISPLAY TYPE: 4K, IPS Touchscreen
DISPLAY SIZE: 23.8″ diagonal (60.5 cm)
DISPLAY RESOLUTION: 3840 x 2160 pixels (4K)
INPUT TYPE: Touchscreen
MOUNTING OPTIONS: Flush or Flat
Sonar & Mapping
SONAR SUPPORT: Traditional, ClearVü, SideVü, Panoptix™, LiveScope™ (requires compatible black box)
POWER OUTPUT: 82 W (Max System Power)
CHART SUPPORT: Garmin Navionics+™ / Garmin Navionics Vision+™
WAYPOINTS / TRACKS / ROUTES: 5,000 / 50 Saved Tracks / 100
GPS RECEIVER: 10 Hz Multi-Band

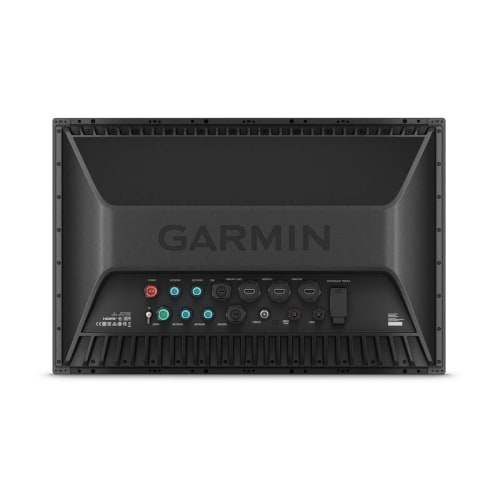

Networking & Electrical
GARMIN BLUENET™ PORTS: 4 (Gigabit Speed)
NMEA 2000® PORTS: 1
NMEA 0183 PORTS: 1 Rx, 1 Tx
J1939 PORTS: 1 (Engine Data)
VIDEO PORTS: 1 BNC Composite In, 2 HDMI In, 1 HDMI Out
POWER INPUT: 10 to 35 Vdc
TYPICAL CURRENT DRAW: 6.5 A @ 12 Vdc
USB PORTS: 2 (USB-C)
Inverell Boating Centre Technical Summary: The GPSMAP 9024 provides the largest 4K viewing area (23.8" diag) and the most expansive connectivity options in the series, featuring four BlueNet ports for maximum system expansion and speed. The 6.5A typical current draw is indicative of the massive computational power driving the high-resolution graphics and complex network management.
Warranty / Availability of Repair Facilities & Parts
Warranty / Availability of Repair Facilities & Parts
AU Warranty / Availability of Repair Facilities & Parts
Garmin Warranty / Availability of Repair Facilities & Parts
On this page, Garmin customers in Australia will find detailed warranty information; information regarding availability of repair facilities and parts including for out-of-warranty service; other important details regarding repair or replacement of a Garmin product; and how to contact Inverell Boating Centre for further information.
On this page
- Limited Warranty
- Availability of Repair Facilities & Parts (Out of Warranty)
- Repair or Replacement of a Garmin Product
- Additional Resources
- Contact for Further Information
Limited Warranty
This warranty is provided by Garmin Australasia Pty Ltd.
Application of Australian Consumer Guarantees
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.
The benefits under this Limited Warranty are in addition to other rights and remedies under applicable law. Phone: 0417 159 205.
One-Year Consumer Products Limited Warranty
Non-aviation products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Garmin Australasia will, at its sole option, repair or replace any components that fail in normal use at no charge for parts or labour (customer responsible for transportation).
Warranty Exclusions
- Cosmetic damage such as scratches, nicks, and dents.
- Consumable parts (batteries, etc.) unless damage occurs due to defects in materials or workmanship.
- Damage from accident, abuse, misuse, water, fire, or external causes.
- Service by non-authorised providers.
- Modifications or altered units without written permission.
- Damage caused by non-Garmin cables or accessories.
Garmin reserves the right to refuse warranty claims for products obtained or used in contravention of local laws. Map accuracy and completeness are not guaranteed.
Warranty Process
- Contact Inverell Boating Centre Support to request an RMA number.
Email: inverellboatingcentre.cwa@gmail.com
Phone: 0417 159 205
Provide your unit serial number, return address, and contact number.
- Ship the unit with RMA number to Garmin or Inverell Boating Centre.
INVERELL BOATING CENTRE
Attn: Warranty / Returns:
10a Swanbrook Rd,
Inverell NSW 2360,
Australia
Availability of Repair Facilities & Parts (Out of Warranty)
Garmin products include complex integrated components. Repairs of parts such as cracked screens or integrated bands may not be possible outside Garmin factory conditions. Therefore, facilities or spare parts may not always be available for repair of such components.
Where an out-of-warranty service is required, Garmin Australasia or INVERELL BOATING CENTRE may offer to sell a replacement unit or Garmin Refurbished product. This applies only to out-of-warranty service and not to consumer guarantees under the Australian Consumer Law.
Repair or Replacement of a Garmin Product
Australian Consumer Law Notice:
- Repair or replacement of goods capable of retaining user data may result in loss of that data.
- Goods presented for repair may be replaced with refurbished goods of the same type rather than repaired. Refurbished parts may be used to repair goods.
Additional Resources
- Parallel imports: accc.gov.au/buying-parallel-imports
- Proof of purchase: accc.gov.au/receipts-proof-of-purchase
- Identifying genuine business: accc.gov.au/identifying-a-genuine-business
Contact for Further Information
For all warranty or out-of-warranty enquiries, please contact:
INVERELL BOATING CENTRE
www.inverellboatingcentre.com
10a Swanbrook Rd, Inverell NSW 2360, Australia
Phone: 0417 159 205
