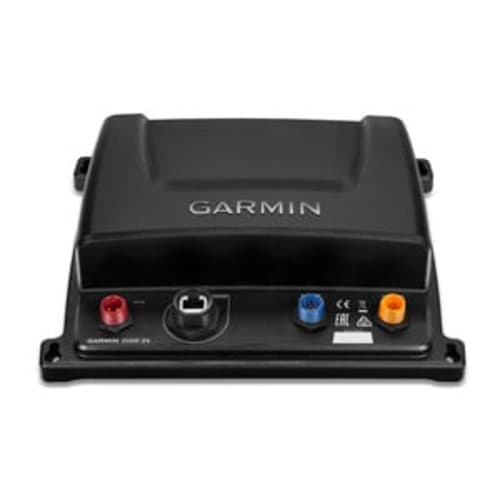

GSD™ 25 PREMIUM SONAR MODULE: 1kW CHIRP & Scanning Sonar Black Box
The GSD™ 25 Premium Sonar Module is a remote network solution that provides serious sport fishers with outstanding fishfinding and bottom tracking capabilities. This premium black box features **true dual-channel 1kW CHIRP** traditional sonar, plus **CHIRP ClearVü™ and SideVü™ scanning sonar**, delivering the clearest images on the water. It extends depth capability down to **5,000 feet (1,524 meters)**, allowing you to distinguish between small and closely spaced fish at key fishing depths.
TRUE DUAL-CHANNEL 1 KW CHIRP

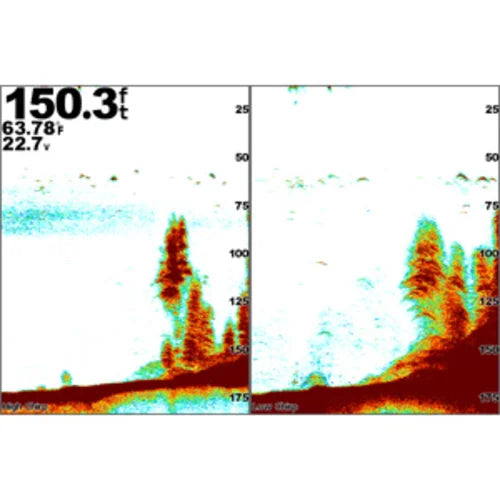

CHIRP is the most sophisticated sonar technology available, and the GSD 25 provides true dual 1kW CHIRP, allowing you to optimize performance by adjusting CHIRP frequencies (low/medium, low/high, medium/high).
KEY SONAR & CLARITY FEATURES
- Dual-Channel CHIRP: Supports true dual 1kW CHIRP traditional sonar for maximum target resolution, clarity, and crispness.

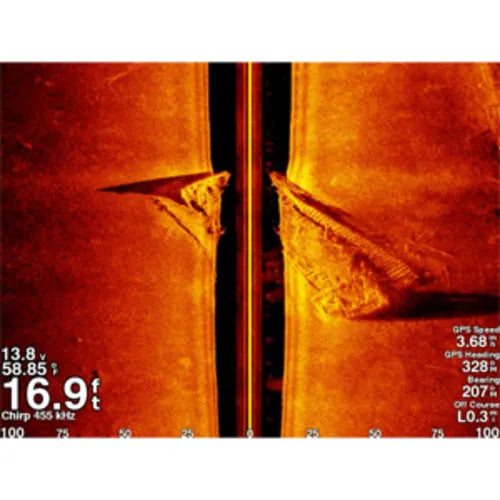

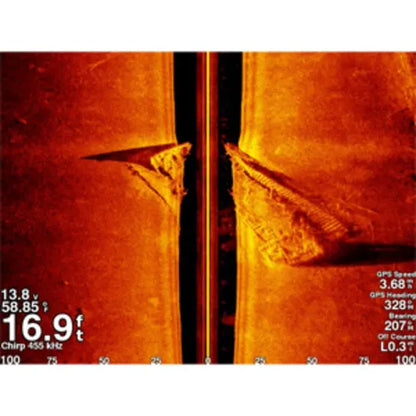

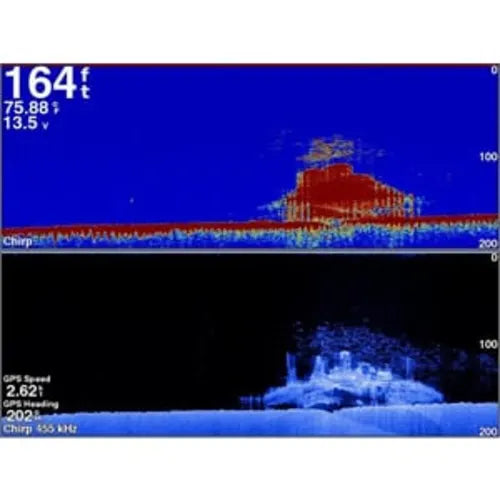

- Scanning Sonar: Integrates CHIRP technology into ClearVü™ and SideVü™ scanning sonar for enhanced resolution, target separation, and clear images of fish and structure below and to the sides of your boat.
- Deepwater Capability: Provides reliable tracking and imaging down to **5,000 feet (1,524 meters)** (transducer dependent).
NETWORKING & TRANSDUCER FLEXIBILITY
The GSD 25 is designed to seamlessly integrate with your compatible Garmin Chartplotter via the Garmin Marine Network.
- **Garmin Marine Network:** Features one dedicated network port for high-speed data sharing with compatible Chartplotters (e.g., GPSMAP xsv combos and MFDs).
- **Transducer Ready:** Compatible with a wide range of dedicated Garmin and third-party transducers (sold separately) designed for simultaneous Traditional CHIRP, ClearVü, and SideVü operation.
- **Construction:** Built with a durable polycarbonate case and rated IPX7 water-resistant for harsh marine environments.
Inverell Boating Centre Expert Note:
The GSD 25 is ideal for vessels that need maximum depth capability (5,000 ft) combined with high-resolution scanning sonar, but whose Chartplotter does not have built-in "xsv" sonar capabilities. It requires a dedicated transducer optimized for both 1kW CHIRP and scanning technologies (e.g., GT51M series) and connects via a single Garmin Marine Network Port.
Specification in detail
Specification in detail
General & Physical
DIMENSIONS: 9.9" × 7.6" × 2.6" (251 mm × 192 mm × 66 mm)
WEIGHT: 1.7 lbs (0.77 kg)
WATER RATING: IPX7 (Submersible)
CASE MATERIAL: Polycarbonate
TEMPERATURE RANGE: From -15°C to 70°C
COMPASS SAFE DISTANCE: 30 cm (11.8 in.)
Sonar Capabilities
SONAR TYPE: Dual Channel 1kW CHIRP, ClearVü, SideVü
TRANSMIT POWER: 1 kW
MAXIMUM DEPTH: 5,000 ft (1,524 m)
TRADITIONAL FREQUENCIES: 50/200, 77/200, 83/200 kHz (Single/Dual CHIRP 40-250 kHz)
SCANNING FREQUENCIES: CHIRP 455/800 kHz & CHIRP 260/455 kHz (SideVü/ClearVü)
Power & Connections
POWER INPUT: 10-35 Vdc
MAXIMUM POWER USAGE: 27 W
FUSE REQUIREMENT: 4.0 A
GARMIN MARINE NETWORK PORTS: 1
Inverell Boating Centre Technical Summary: The GSD 25 is a lightweight (0.77 kg) and power-efficient black box, drawing a maximum of 27W. It is capable of high-power 1kW operation and features all three core sonar technologies (Traditional, ClearVü, SideVü) through a single network port, providing comprehensive sonar functionality for compatible Garmin Chartplotters.
