LiveScope™ Plus Tournament Bundle: GPSMAP 8416xsv & LiveScope Plus with Pole
LiveScope™ Plus Tournament Bundle: GPSMAP 8416xsv & LiveScope Plus with Pole
GPSMAP® 8416xsv
LiveScope™ Plus System
Transducer poles Australia CV Live Scope Pole with Ram Mounting
$11,377.00 $9,828.00
LiveScope™ Plus Tournament Bundle: GPSMAP 8416xsv & LiveScope Plus with Pole
-
“Hands down the best upgrade I’ve made to my boat. The GPSMAP 8416xsv with the LiveScope setup is next level — I can literally see fish move under structure in real-time. The team at Inverell Boating Centr helped me choose the right transducer pole and even tested the setup before shipping. Top-notch service.”
Jason H. – Gold Coast, QLD -
“I’ve used Garmin gear for years, but this bundle takes things to another level. Everything came pre-configured — plug it in and go. The LiveScope detail is unbelievable. You can actually watch the lure drop and see fish react.”
Ben R. – Perth, WA -
“I fish the reefs a lot, and this setup gives me clarity I’ve never seen before. I can separate coral from fish schools easily. Inverell Boating Centre knew exactly what configuration I needed for northern waters — legends.”
Mick T. – Cairns, QLD

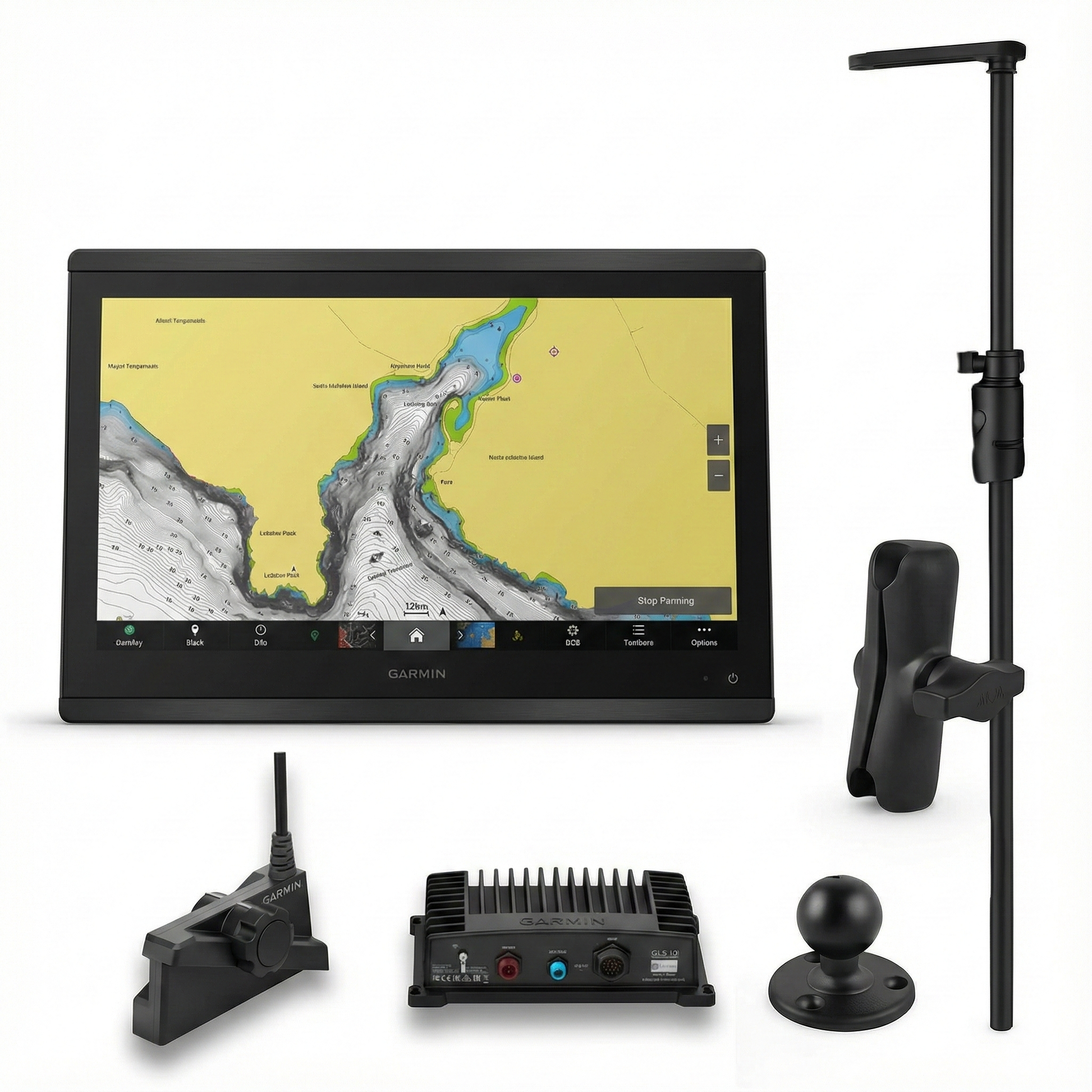

LIVE SCOPE PLUS TOURNAMENT BUNDLE: GPSMAP 8416xsv & C.V. Pole
This professional-grade bundle delivers a complete, high-definition live sonar fishing system centered around the powerful **GPSMAP 8416xsv 16-inch MFD**. It pairs the stunning clarity and superior target separation of the **LiveScope™ Plus System (GLS 10 & LVS34)** with the precise, affordable positioning offered by the **C.V. Transducer Pole**. This package is mission-critical for serious anglers demanding flawless real-time vision and total system control in a single installation.
ULTIMATE VISUALS AND FISHING ADVANTAGE
The 8416xsv acts as the command center, utilizing its dual Garmin Network Ports to seamlessly integrate and display the high-resolution LiveScope Plus data.
BUNDLE COMPONENTS & BENEFITS
- GPSMAP 8416xsv (16"): Features a **Full HD (1920x1080) IPS Touchscreen** and built-in **1 kW Dual-Channel CHIRP** sonar, eliminating the need for an external traditional sonar black box.

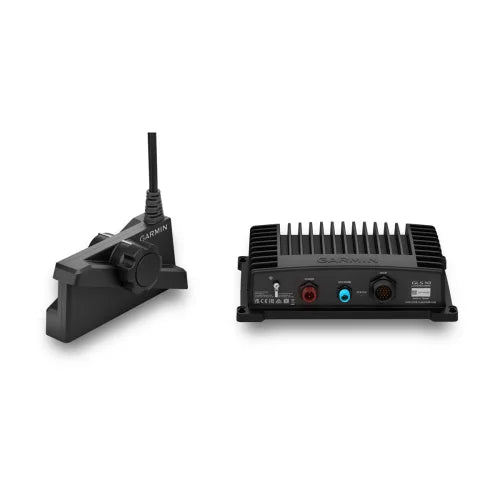

- LiveScope™ Plus System: Includes the **GLS 10 Black Box and LVS34 Transducer**, providing **improved resolution, reduced noise, and better target separation** in real-time up to 61m (200 ft).

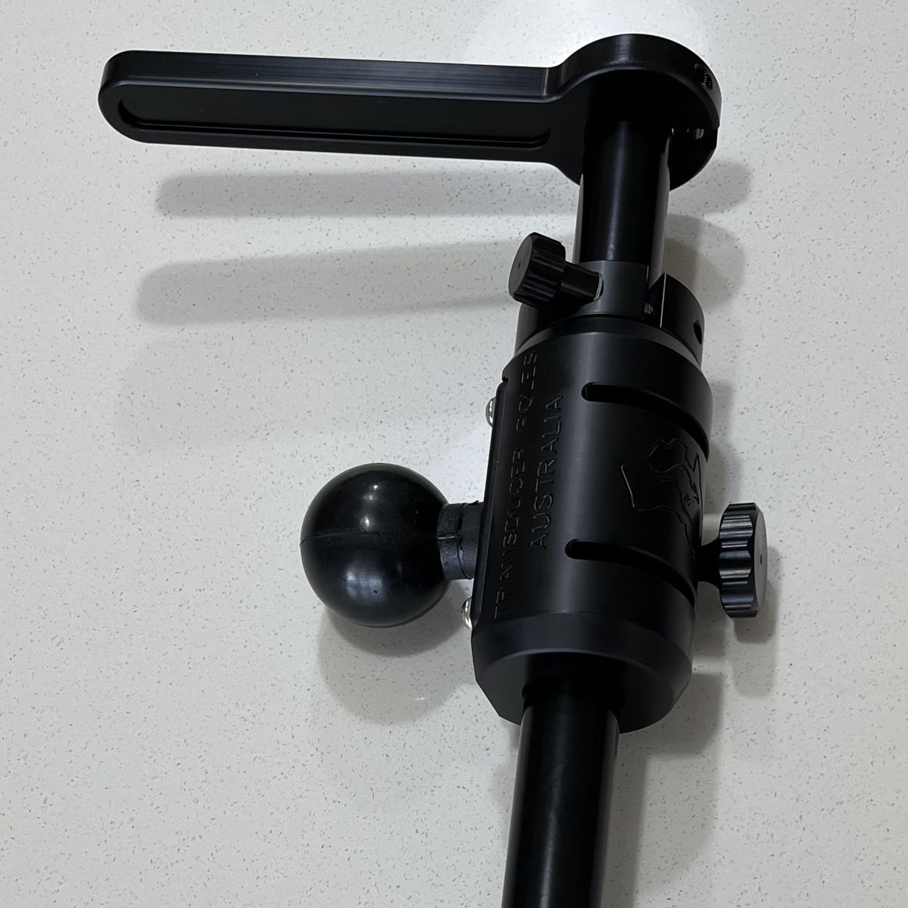

- C.V. Transducer Pole: A 1600mm **powder-coated pole** with a black acetal handle, designed for **precise, hands-on control** of the LiveScope LVS34 transducer, compatible with **RAM D Size** components.
- Network Ready: The 8416xsv’s **Dual Garmin Marine Network Ports** ensure high-speed, seamless integration between the MFD, the LiveScope GLS 10 module, and other devices like radar or autopilot.
INSTALLATION & TECHNICAL NOTES
- **Built-in Power:** The 8416xsv’s built-in 1kW sonar saves space by consolidating traditional sonar components into the MFD chassis.
- **Pole Mounting:** The C.V. Pole comes with essential mounting hardware (block, collar, handle) and is ready for use with your existing RAM D Size mount.
Inverell Boating Centre Expert Bundle Note:
This bundle provides the highest level of visual detail (16" FHD IPS) paired with the clearest live sonar available (LiveScope Plus). This combination is perfectly balanced for tournament use where speed, clarity, and system integration are paramount.
Specification in detail
Specification in detail

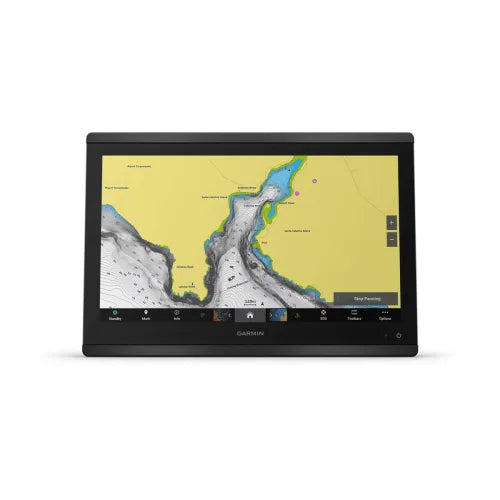

1. GPSMAP 8416xsv (Chartplotter)
DISPLAY: 15.6" Diagonal FHD IPS Touchscreen (1920 x 1080)
BUILT-IN SONAR: 1 kW Dual-Channel CHIRP, UHD ClearVü/SideVü
NETWORK PORTS: 2 Garmin Marine Network Ports
TRANSDUCER PORTS: 1 (8-pin), 1 (12-pin scanning sonar)
POWER INPUT: 10 to 32 Vdc
2. LiveScope™ Plus System (GLS 10 & LVS34)
SONAR TYPE: Real-Time Live Scanning (LVS34 Transducer)
MAXIMUM DEPTH: 61.0 m (200 ft) Down and Forward
FREQUENCY: 530 – 1,100 kHz (Optimized)
GLS 10 MODULE DIMENSIONS: 24.5 x 14.9 x 6.5 cm
GLS 10 POWER: 10-32 Vdc (500 W Transmit Power)
3. C.V. Transducer Pole
POLE LENGTH: 1600 mm
POLE FINISH: Powder Coated
HANDLE: Bolt-on Black Acetal
RAM COMPATIBILITY: Designed for RAM D Size Components (Mounting block & collar included)
Inverell Boating Centre Technical Summary: This bundle provides the highest level of MFD processing (8416xsv) and live sonar clarity (LiveScope Plus) currently available. The system is designed for a clean, high-performance installation, using the 8416xsv's dual network ports to link the MFD and GLS 10 module, while the C.V. Pole offers manual, precise transducer control.
Warranty / Availability of Repair Facilities & Parts
Warranty / Availability of Repair Facilities & Parts
AU Warranty / Availability of Repair Facilities & Parts
Garmin Warranty / Availability of Repair Facilities & Parts
On this page, Garmin customers in Australia will find detailed warranty information; information regarding availability of repair facilities and parts including for out-of-warranty service; other important details regarding repair or replacement of a Garmin product; and how to contact INVERELL BOATING CENTRE for further information.
On this page
- Limited Warranty
- Availability of Repair Facilities & Parts (Out of Warranty)
- Repair or Replacement of a Garmin Product
- Additional Resources
- Contact for Further Information
Limited Warranty
This warranty is provided by Garmin Australasia Pty Ltd.
Application of Australian Consumer Guarantees
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.
The benefits under this Limited Warranty are in addition to other rights and remedies under applicable law. Phone: 0417 159 205.
One-Year Consumer Products Limited Warranty
Non-aviation products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Garmin Australasia will, at its sole option, repair or replace any components that fail in normal use at no charge for parts or labour (customer responsible for transportation).
Warranty Exclusions
- Cosmetic damage such as scratches, nicks, and dents.
- Consumable parts (batteries, etc.) unless damage occurs due to defects in materials or workmanship.
- Damage from accident, abuse, misuse, water, fire, or external causes.
- Service by non-authorised providers.
- Modifications or altered units without written permission.
- Damage caused by non-Garmin cables or accessories.
Garmin reserves the right to refuse warranty claims for products obtained or used in contravention of local laws. Map accuracy and completeness are not guaranteed.
Warranty Process
Contact INVERELL BOATING CENTRE Support to request an RMA number.
Email: inverellboatingcentre.cwa@gmail.com
Phone: 0417 159 205
Provide your unit serial number, return address, and contact number.
Ship the unit with RMA number to Garmin or INVERELL BOATING CENTRE.
INVERELL BOATING CENTRE
Attn: Warranty / Returns
10a Swanbrook Rd
Inverell NSW 2360
Australia
Availability of Repair Facilities & Parts (Out of Warranty)
Garmin products include complex integrated components. Repairs of parts such as cracked screens or integrated bands may not be possible outside Garmin factory conditions. Therefore, facilities or spare parts may not always be available for repair of such components.
Where an out-of-warranty service is required, Garmin Australasia or INVERELL BOATING CENTRE may offer to sell a replacement unit or Garmin Refurbished product. This applies only to out-of-warranty service and not to consumer guarantees under the Australian Consumer Law.
Repair or Replacement of a Garmin Product
Australian Consumer Law Notice:
- Repair or replacement of goods capable of retaining user data may result in loss of that data.
- Goods presented for repair may be replaced with refurbished goods of the same type rather than repaired. Refurbished parts may be used to repair goods.
Additional Resources
- Parallel imports: accc.gov.au/buying-parallel-imports
- Proof of purchase: accc.gov.au/receipts-proof-of-purchase
- Identifying genuine business: accc.gov.au/identifying-a-genuine-business
Contact for Further Information
For all warranty or out-of-warranty enquiries, please contact:
INVERELL BOATING CENTRE www.inverellboatingcentre.com
10a Swanbrook Rd, Inverell NSW 2360, Australia Phone:0417 159 205Email:inverellboatingcentre.cwa@gmail.com

Verified Customer Feedback
Excellent
4.8
/ 5
-
“Great bundle overall. Took me a bit to mount the transducer pole, but the instructions and online support from Hard Rig were excellent. Once set up, the performance is insane — crystal-clear sonar even in murky water.”
Luke P. – Newcastle, NSW
-
“The LiveScope GLS10 & LVS34 combo is unreal. It’s like cheating. You can literally see the fish move. Installation was straightforward, and the Inverell Boating Centre crew double-checked compatibility with my setup before shipping — that’s rare service these days.”
Adam F. – Adelaide, SA
-
“Worth every cent. I use the GPSMAP 8412xsv bundle and it’s bulletproof in cold waters. Even in rough conditions, the readings stay locked in. Inverell Boating Centre’s tech advice saved me hours. Top service from real marine experts.”
Trevor K. – Hobart, TAS
