    PANOPTIX™ PS70: Deep-Water Live Sonar Transducer (300m/1000ft Range)

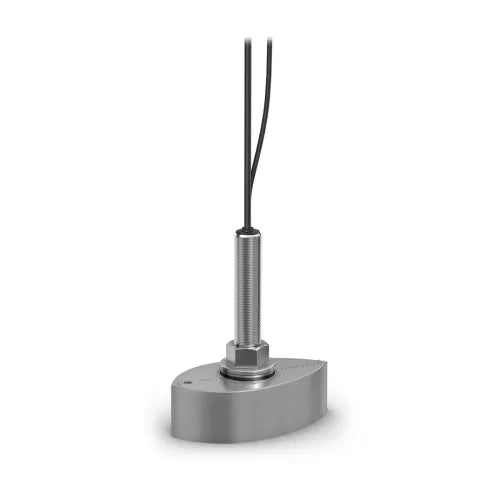

    The Panoptix™ PS70 is Garmin’s high-power, stainless steel thru-hull transducer, designed for **deep-sea anglers** who need live sonar views at extreme depths. Powered by **Garmin RapidReturn™ sonar**, the PS70 delivers real-time, live imaging up to **300 meters (1,000 feet)** below the surface. Its robust design, wide beam angle, and 800-watt power output ensure unparalleled performance in coastal and open-water environments.


    LIVE SONAR: CATCH FISH DEEP

    The PS70 uses an 800-watt multi-beam phased array to provide live, detailed sonar feedback at ranges previously impossible with this technology.

    KEY DEEP-WATER SONAR FEATURES

    • Extreme Depth Capability: See real-time live sonar images down to **300 meters (1,000 feet)**, allowing you to track small baitfish and target game fish in the deepest columns.
    • Multiple Sonar Modes: Includes **LiveVü™ Down** (real-time live sonar), **Traditional Sonar** (crisp fish arches), **Triple-Beam Sonar** (3-way split view), and **RealVü™ 3D Sonar** (historical scanning and ocean floor mapping).
    • High-Power Output: 800-watt transmit power gives you stronger sonar penetration through the water for superior target definition at range.
    • High-Speed Display: Displays live sonar at a minimum of **10 frames per second**, ensuring fluid, real-time returns that are 6 to 8 times faster than standard competition.

    INSTALLATION AND RUGGEDNESS

    The stainless steel PS70 is engineered for high-speed operation and permanent thru-hull installation on deep-sea vessels:

    • **Thru-Hull Mounting:** Can be flush mounted or pocket mounted. Includes a fairing block to accommodate deadrise angles of 0 to 20 degrees.

    Specification in detail

    General & Physical


    DIMENSIONS: 8.5″ x 4.49″ x 9.61″ (21.6 x 11.4 x 24.4 cm)

    WEIGHT: 10.12 lbs (4.6 kg)

    WATER RATING: IPX7 (Submersible)

    INSTALLATION: Thru-Hull (Fairing Block Included: Yes/No - *Please check current bundle*)

    TRANSDUCER CABLE LENGTH: 8 ft (2.4 m) + 40 ft (12.1 m) extension

    Sonar Capabilities


    SONAR TYPE: Multi-Beam Phased Array / LiveVü™ Down / RealVü™ 3D

    FREQUENCY: 190 – 210 kHz

    TRANSMIT POWER: 800 W

    MAXIMUM DEPTH (SALTWATER): 300 m (1,000')

    BEAMWIDTH: 120° x 8°

    LIVE SONAR DISPLAY RATE: Minimum 10 Frames Per Second

    Power & Connections


    POWER INPUT: 10-35 Vdc

    TYPICAL POWER USAGE: 35 W

    FUSE REQUIREMENT: 7.5 A

    GARMIN MARINE NETWORK PORTS: 1 (Small Connector)


    Inverell Boating Centre Technical Summary: The PS70 is a heavy-duty, deep-water transducer defined by its 800W output and 300m range. It must be professionally installed as a thru-hull unit and connects directly to a compatible Chartplotter via the Garmin Marine Network. It requires a 7.5A fuse and draws 35W typically under load.
