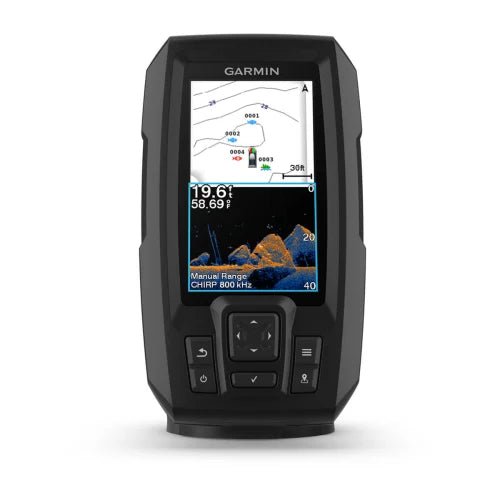

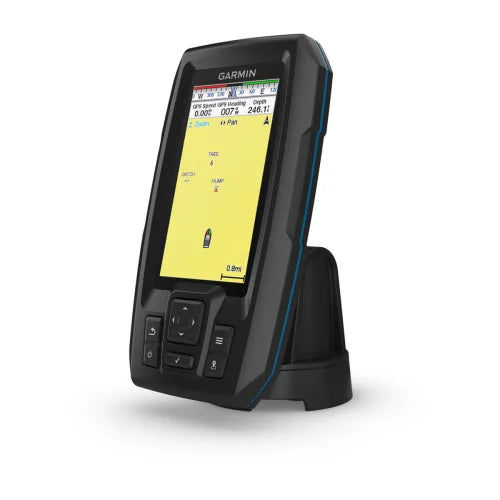

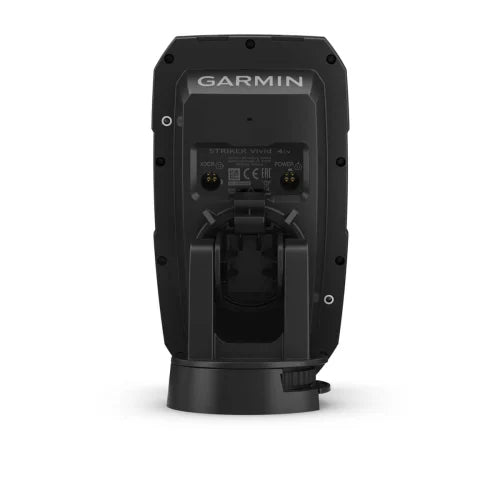

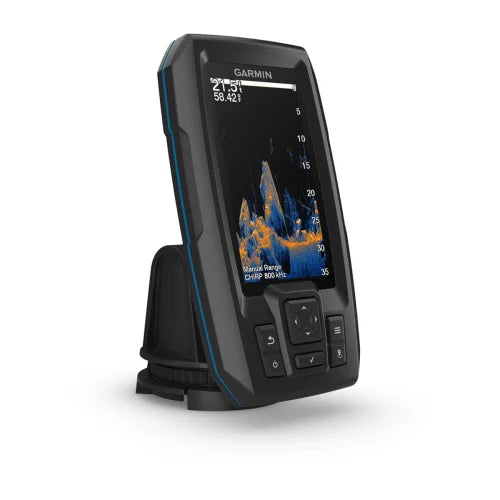

STRIKER™ VIVID 4cv: Compact 4-inch ClearVü™ Fishfinder with GPS
The Garmin STRIKER Vivid 4cv provides essential fishfinding technology in a highly compact, portable package. Ideal for kayaks, canoes, and small tenders, this unit combines traditional **CHIRP Sonar** with high-resolution **ClearVü™ scanning** on a bright 4-inch display. It is packaged with the versatile **GT20-TM Transducer** , offering an excellent cost-effective solution without sacrificing clarity.
CLEAR SONAR AND PORTABLE POWER
Despite its size, the STRIKER Vivid 4cv delivers exceptional performance. Use the **7 new vivid color palettes** to quickly interpret returns and differentiate fish from structure on the 4-inch display.
KEY SONAR FEATURES (GT20-TM INCLUDED)
- Garmin CHIRP Traditional Sonar: Consistent depth tracking and clear fish arch visualization.
- ClearVü™ Scanning Sonar: Near-photographic clarity of structure and bait directly below the boat.
- High-Sensitivity GPS: Mark productive fishing waypoints and plan routes. The unit displays speed over ground (SOG), a critical feature for compliance and trolling speed management.
CUSTOM MAPPING & EFFICIENCY
The STRIKER 4cv is lightweight, extremely power-efficient, and comes ready for custom mapping:
- Quickdraw™ Contours: Easily create and store up to 2 million acres of highly detailed **1-foot (0.3m) contour maps** of any area you fish.
- Ultra-Efficient Power: Drawing only 0.40A typically, this unit minimizes strain on small portable batteries.
Inverell Boating Centre Expert Note:
This 4cv model is the perfect choice for maximizing sonar capability in minimal space. The display is optimized for the included **GT20-TM (ClearVü/Traditional)** transducer. As an **Authorized Garmin Dealer**, your purchase includes full warranty coverage and technical support from our specialists.
Specification in detail
Specification in detail
General & Physical
DIMENSIONS: 3.9’’ x 6.9’’ x 1.8’’ (9.8 x 17.4 x 4.5 cm)
WEIGHT: 0.7 lbs (0.3 kg)
WATER RATING: IPX7 (Submersible)
DISPLAY SIZE: 4.3" diag (10.9 cm)
DISPLAY RESOLUTION: 272 x 480 pixels
INPUT TYPE: Keyed
MOUNTING OPTIONS: Flush, Tilt/Swivel
Sonar Capabilities
SONAR TYPES: Traditional CHIRP, ClearVü™
TRANSDUCER INCLUDED: GT20-TM
TRANSMIT POWER: 300 W (RMS)
TRADITIONAL FREQUENCY: 77/200 kHz CHIRP (mid and high)
SCANNING FREQUENCY: ClearVü: 455/800 kHz
BOTTOM LOCK: Shows return from the bottom up
WATER TEMPERATURE LOG: Yes
Navigation & Memory
WAYPOINTS / FAVORITES: 5,000
TRACK POINTS: 50,000
NAVIGATION ROUTES: 100
GPS / MAPPING: Integrated GPS Receiver, Garmin Quickdraw™ Contours
WAAS SUPPORT: Yes
Power & Connections
POWER INPUT: 12 to 20 Vdc
TYPICAL CURRENT DRAW: 0.40 A @ 12V
MAX CURRENT DRAW: 1.5 A
POWER CONSUMPTION: 4.8 W
TRANSDUCER PORTS: 1 (4-pin ClearVü/Traditional)
WIRELESS CONNECTIVITY: No (This model does not include built-in Wi-Fi)
Inverell Boating Centre Technical Summary: The STRIKER Vivid 4cv is the lightest unit in the series (0.3 kg) and is highly energy efficient, perfect for portable or small vessel applications where battery conservation is essential. Note the maximum transmit power is 300W RMS.
