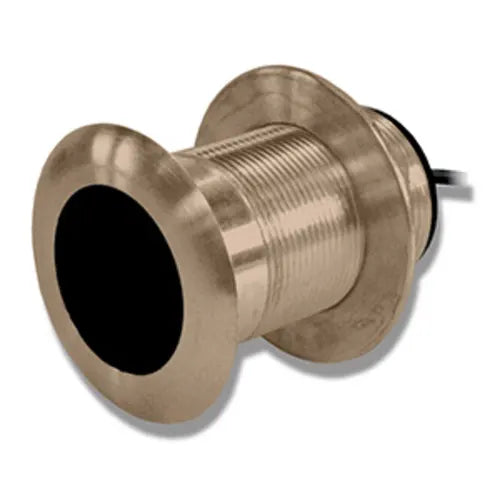

AIRMAR® B117 (0° Tilt): Bronze Thru-Hull Traditional Sonar (600 W)
The AIRMAR® B117 is a renowned bronze **thru-hull transducer** designed for optimal traditional sonar performance at high speeds. This 8-pin, 600 W unit operates at **50/200 kHz** dual frequencies, making it an excellent choice for fiberglass and wood hulls requiring deep-water capability. It provides reliable depth readings between **800 and 1,200 feet**, and the **0° tilt version** is engineered for vessels with **0 to 7 degrees of deadrise**.
DEEPWATER POWER & HIGH-SPEED RELIABILITY
The B117 is built with a bronze housing for durability and is optimized for stable performance even when the boat is moving at cruising speeds.
KEY SONAR & INSTALLATION FEATURES
- Dual Frequency: Uses 50/200 kHz, with 50 kHz providing deep penetration and 200 kHz delivering high-resolution returns.
- Beamwidth: Features 45°/12° beamwidths for broad coverage and focused target returns.
- 0° Tilt: Designed for permanent thru-hull installation on hulls with **0°–7° deadrise**, ensuring the sonar beam is pointed straight down without a fairing block.
- Construction Note: **Do not use on metal (aluminum/steel) hulls.** Ideal for fiberglass and wood.
CONNECTIVITY AND INTEGRATION
The AIRMAR B117 is a universal traditional sonar transducer, compatible with many 8-pin Garmin Chartplotters.
- **8-Pin Connector:** Uses the 8-pin connector for power and traditional sonar data output.
- **Cable Length:** Includes a robust **33-foot cable** for flexible routing.
Inverell Boating Centre Expert Note:
The AIRMAR B117 is a dedicated 600 W Traditional Sonar unit (no scanning capability). The 0° tilt is essential for shallow deadrise hulls (0°-7°). We strongly advise **professional installation** due to the thru-hull nature of this sensor. If your MFD has a 6-pin port, a separate adapter cable (010-11612-00) is required.
Specification in detail
Specification in detail
General & Physical
PART NUMBER: 010-10182-21
HOUSING MATERIAL: Bronze
INSTALLATION: Thru-Hull (Narrow Stem)
CABLE LENGTH: 33 ft (10.1 m)
SUPPORTED DEADRISE: 0°–7° degree deadrise (0° Tilt)
Sonar Capabilities (Traditional Only)
NUMBER OF PINS: 8-pin
SONAR TYPE: Traditional Dual Frequency
TRADITIONAL POWER: 600 W
MAXIMUM DEPTH: 800–1,200 ft (244–366 m)
FREQUENCY: 50/200 kHz
BEAMWIDTH: 45°/12°
DEPTH/SPEED/TEMPERATURE: Depth and Temperature
Inverell Boating Centre Technical Summary: The AIRMAR B117 (0°) is a high-quality, bronze 600W transducer optimized for reliable performance in deeper water (50/200 kHz) and high-speed operation. It uses the 8-pin standard and is strictly a Traditional Sonar sensor.
