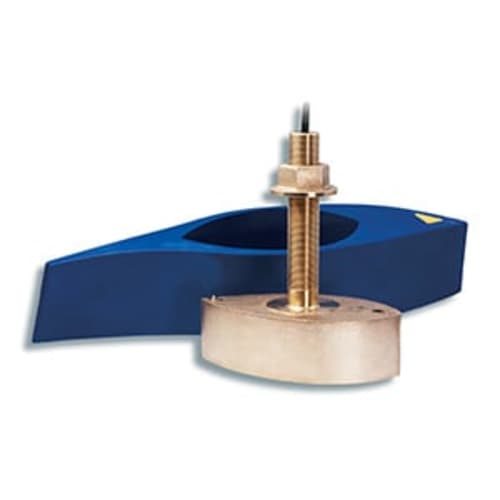

AIRMAR® B265LM: 1 kW Low/Mid-CHIRP Thru-Hull Transducer (3,000 ft)
The AIRMAR® B265LM is a professional-grade, **flush-mounted bronze thru-hull transducer** designed for deep-water and mid-range performance. This unit offers simultaneous **Low-CHIRP (42–65 kHz)** and **Mid-CHIRP (85–135 kHz)** operation, providing excellent depth penetration and wide coverage. With robust **1 kW power**, it reaches depths up to **3,000 feet (914 meters)**. The Low-CHIRP maximizes depth, while the Mid-CHIRP ensures superior target separation and detail in the mid-water column.
DUAL-CHIRP POWER FOR DEPTH AND DETAIL
The B265LM uses two dedicated ceramic elements—one optimized for deep penetration (Low) and one for wide coverage and detail (Mid)—to deliver a professional-grade traditional sonar picture.
KEY SONAR & PERFORMANCE FEATURES
- Low-CHIRP Penetration: The 42–65 kHz band provides maximum depth capability, reliably tracking the bottom up to **3,000 ft**.
- Mid-CHIRP Resolution: The 85–135 kHz band offers superior detail and target separation across wide beamwidths (11°–16°).
- Deadrise Support: Supports deadrise angles from **0 to 20 degrees** (requires fairing block for correction).
- Housing: Durable bronze construction is ideal for **fiberglass and wood hulls**.
CONNECTIVITY AND INTEGRATION
The B265LM is a heavy-duty sensor that requires a compatible CHIRP-enabled sounder or black box to unlock its full dual-frequency potential.
- **Bare Wire Connection:** This transducer is supplied with **bare wires** (no connector) and must be wired to a 12-pin connector adapter (sold separately) or directly into a CHIRP sounder module (e.g., GSD 26/28 [1]).
- **Cable Length:** Includes a robust **39-foot cable** for flexible routing on large vessels.
Inverell Boating Centre Expert Note:
The AIRMAR B265LM is a premium 1 kW transducer (Traditional CHIRP only) optimized for deep and mid-range targets (up to 3,000 ft). It is essential for vessels requiring reliable bottom tracking and structure identification across the low and medium frequency bands. **Professional installation and wiring are absolutely required.**
Specification in detail
Specification in detail
General & Physical
PART NUMBER: 010-11647-20
HOUSING MATERIAL: Bronze
INSTALLATION: Thru-Hull
CABLE LENGTH: 39 ft (11.9 m)
SUPPORTED DEADRISE: 0°–20° degree deadrise
Sonar Capabilities (Traditional CHIRP Only)
NUMBER OF PINS: Bare Wire (Requires Adapter/Black Box)
SONAR TYPE: Dual-Frequency CHIRP (Low & Mid)
TRADITIONAL POWER: 1 kW (1,000 W)
MAXIMUM DEPTH: 3,000 ft (914 m)
FREQUENCY: Low (42–65 kHz) & Mid (85–135 kHz)
BEAMWIDTH: Low: 16°–25° / Mid: 11°–16°
DEPTH/SPEED/TEMPERATURE: Depth and Temperature
Inverell Boating Centre Technical Summary: The AIRMAR B265LM is a professional 1 kW transducer optimized for depth (Low CHIRP) and versatility (Mid CHIRP), reaching 3,000 ft. It is bare wire, meaning it requires expert wiring to a compatible CHIRP sonar module (GSD 26/28 [1]).
