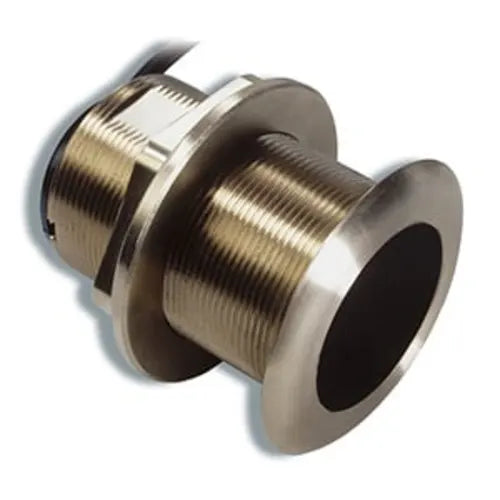

    AIRMAR® B60 (12° Tilt): Dual Frequency Thru-Hull Transducer (600W)

    The AIRMAR® B60 (12° tilt) is a popular, entry-level **tilted bronze thru-hull transducer** designed for excellent depth capability and target separation. This 8-pin unit features robust **600 W Traditional Sonar** operating at **50/200 kHz** dual frequencies. The internal element is tilted by **12 degrees** to correct for deadrise angles between **8 and 15 degrees**, ensuring the sonar beam fires straight down for optimal returns down to **1,200 feet (50 kHz)** or **700 feet (200 kHz)** without the need for a fairing block.


    TILTED ELEMENT DESIGN & DUAL FREQUENCY

    The B60's built-in tilt simplifies installation on moderate dead-V hulls, making it an excellent choice for fiberglass and wood boats.

    KEY SONAR & INSTALLATION FEATURES

    • 600 W Traditional Sonar: Uses 50/200 kHz frequencies, providing deep penetration (50 kHz) and excellent bottom detail (200 kHz).
    • 12° Tilt Compensation: The built-in 12° tilt compensates for deadrise between **8° and 15°**, eliminating the need for a fairing block.
    • Flush Mount: Protrudes minimally outside the hull, reducing drag and turbulence for clearer readings at high speeds.
    • Bronze Housing: Durable bronze construction is ideal for **fiberglass and wood hulls** (Do not use on metal hulls).

    CONNECTIVITY AND INTEGRATION

    The B60 is a reliable, permanently mounted traditional sonar solution.

    • **8-Pin Connector:** Uses the standard 8-pin connector for power, depth, and temperature data output.
    • **Cable Length:** Includes a robust **33-foot cable** for flexible routing.
    • **Compatibility Note:** When using with older 6-pin Garmin sounders, an adapter cable is required.

    Inverell Boating Centre Expert Note:

    The AIRMAR B60 (12° Tilt) is a dedicated 600W Traditional Sonar unit (no scanning capability). This is a highly popular transducer because the integrated tilt makes installation easier and cleaner on moderate V-hulls (8°–15° deadrise), ensuring optimal performance for deep-water tracking. **Professional installation is essential.**

    Specification in detail

    General & Physical


    PART NUMBER: 010-10982-21

    HOUSING MATERIAL: Bronze

    INSTALLATION: Thru-Hull (Tilted Element)

    CABLE LENGTH: 33 ft (10.1 m)

    SUPPORTED DEADRISE: 8°–15° degree deadrise (12° Tilt)

    Sonar Capabilities (Traditional Only)


    NUMBER OF PINS: 8-pin

    SONAR TYPE: Traditional Dual Frequency

    TRADITIONAL POWER: 600 W

    MAXIMUM DEPTH: 1,200 ft (50 kHz) / 700 ft (200 kHz)

    FREQUENCY: 50/200 kHz

    BEAMWIDTH: 45° (50 kHz) / 12° (200 kHz)

    DEPTH/SPEED/TEMPERATURE: Depth and Temperature


    Inverell Boating Centre Technical Summary: The AIRMAR B60 (12° Tilt) is a specialized 600W transducer, ideal for deep-V hulls with 8°–15° deadrise. Its 50/200 kHz frequencies allow for excellent deep-water performance (up to 1,200 ft) and highly stable returns due to the integrated tilt element.
