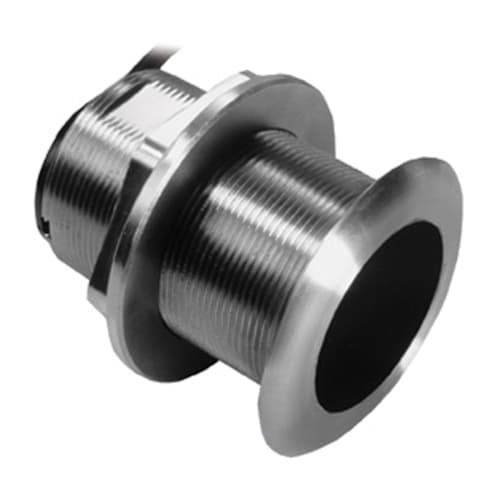

    AIRMAR® SS60 (20° Tilt): Stainless Steel Thru-Hull Transducer (600W)

    The AIRMAR® SS60 (20° tilt) is a highly reliable, **stainless steel thru-hull transducer** designed for stable performance on **deep-V hulls**. This 8-pin unit features robust **600 W Traditional Sonar** operating at **50/200 kHz** dual frequencies. The internal element is tilted by **20 degrees** to correct for deadrise angles between **16 and 24 degrees**, ensuring the sonar beam fires straight down for optimal returns down to **1,200 feet (50 kHz)** or **700 feet (200 kHz)** without a fairing block.


    DEEP-V HULL OPTIMIZATION & STAINLESS STEEL BUILD

    The SS60's stainless steel housing is built for maximum durability, making it an excellent choice for fiberglass and wood hulls requiring a clean, flush-mount installation.

    KEY SONAR & INSTALLATION FEATURES

    • 600 W Traditional Sonar: Uses 50/200 kHz frequencies, providing deep penetration (50 kHz) up to **1,200 ft** and high-resolution detail (200 kHz) up to **700 ft**.
    • 20° Tilt Compensation: The integrated 20° tilt corrects for deadrise between **16° and 24°**, eliminating the need for a fairing block.
    • Stainless Steel Housing: Durable construction provides superior protection in marine environments.
    • Flush Mount: Protrudes minimally outside the hull, reducing drag and turbulence.

    CONNECTIVITY AND INTEGRATION

    The SS60 is a reliable, permanently mounted traditional sonar solution.

    • **8-Pin Connector:** Uses the standard 8-pin connector for power, depth, and temperature data output.
    • **Cable Length:** Includes a robust **33-foot cable** for flexible routing.
    • **Compatibility Note:** When using with older 6-pin Garmin sounders, a transducer adapter cable is required.

    Inverell Boating Centre Expert Note:

    The AIRMAR SS60 (20° Tilt) is a dedicated 600W Traditional Sonar unit (no scanning capability). The integrated 20° tilt element is crucial for **deep-V hulls (16°–24° deadrise)**, ensuring optimal beam performance. **Professional installation is essential.**

    Specification in detail

    General & Physical


    PART NUMBER: 010-11868-22

    HOUSING MATERIAL: Stainless Steel

    INSTALLATION: Thru-Hull (Tilted Element)

    CABLE LENGTH: 33 ft (10 m)

    SUPPORTED DEADRISE: 16°–24° degree deadrise (20° Tilt)

    Sonar Capabilities (Traditional Only)


    NUMBER OF PINS: 8-pin

    SONAR TYPE: Traditional Dual Frequency

    TRADITIONAL POWER: 600 W

    MAXIMUM DEPTH: 700–1,200 ft (213–366 m)

    FREQUENCY: 50/200 kHz

    BEAMWIDTH: 45°/12°

    DEPTH/SPEED/TEMPERATURE: Depth and Temperature


    Inverell Boating Centre Technical Summary: The AIRMAR SS60 (20° Tilt) is a specialized 600W transducer, perfect for deep-V hulls with deadrise between 16°–24°. It provides deep-water capability (up to 1,200 ft) via 50/200 kHz frequencies, with the internal 20° tilt ensuring stable, accurate returns without requiring a fairing block.
