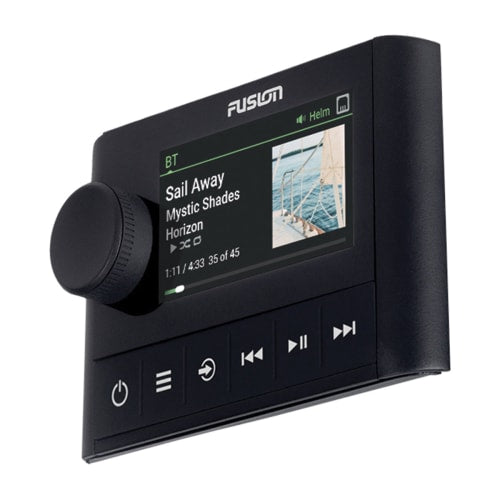

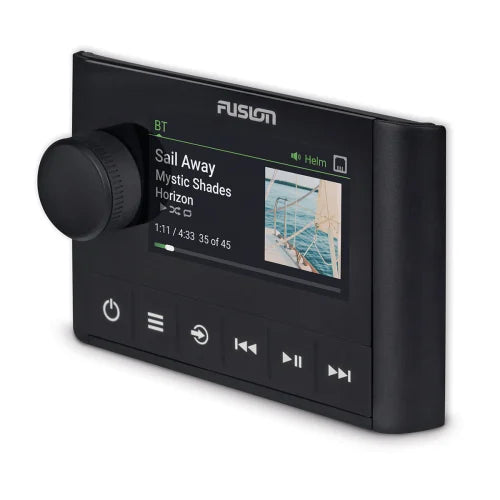

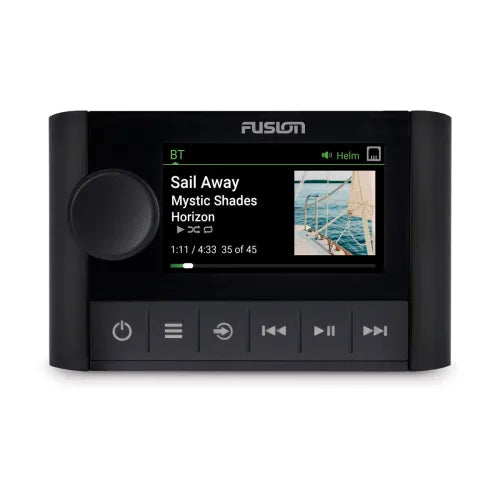

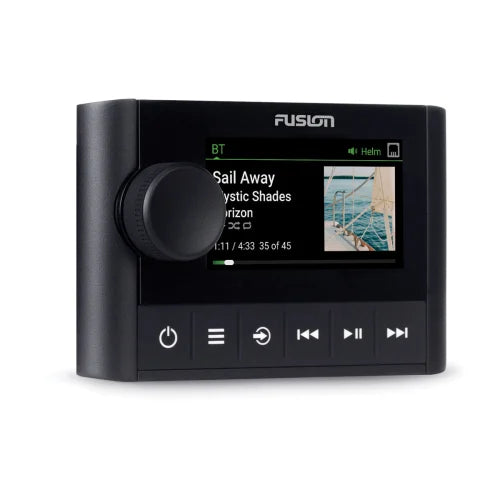

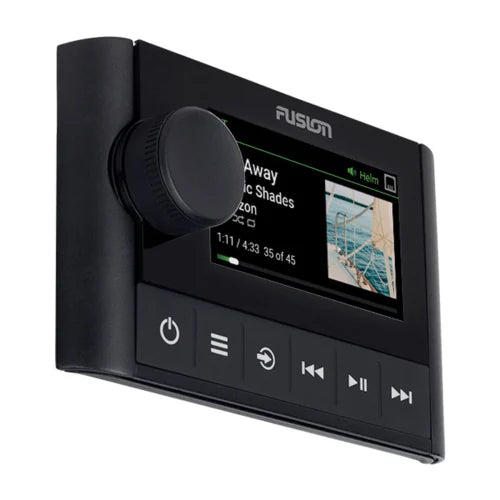

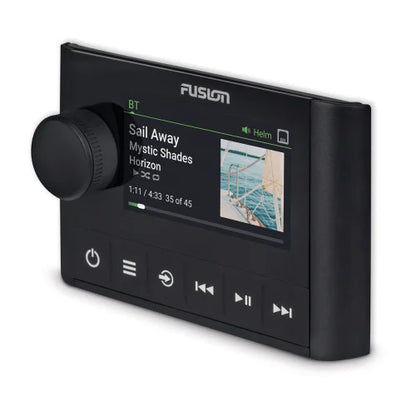

FUSION® APOLLO™ ERX400: Full-Colour Wired Remote with Ethernet Connectivity
The Fusion® Apollo™ ERX400 is a sleek, compact wired remote control that allows you to add intuitive, integrated audio control to any zone onboard your boat. Designed to **TRUE-MARINE™ standards**, this remote features a bright **2.7-inch optically bonded, full-color LCD** that displays album art and metadata. It connects via an **Ethernet connection** to your Apollo Series stereo network (PartyBus™), offering seamless control, stereo grouping, and wireless software updates via the Fusion-Link™ App.
APOLLO INTEGRATION & PARTYBUS™ NETWORKING
The ERX400 is essential for commanding complex, multi-zone audio networks, ensuring crystal-clear visualization and reliable wired control.
KEY AUDIO & NETWORKING FEATURES
- Full-Color Display: The 2.7-inch optically bonded color LCD enhances the user experience by clearly displaying color album art and metadata.
- Ethernet Connectivity: Connects via a single Power over Ethernet port, ensuring reliable audio control and synchronization across the Apollo network (PartyBus™).
- Multi-Zone Control: Allows independent volume control for local zones and global source selection across the entire network.
- Remote Power Options: Allows you to remotely turn on any connected Apollo Series stereo in standby mode on the PartyBus™-Network.
DESIGNED TO TRUE-MARINE™ STANDARDS
The ERX400 features a sleek black glass aesthetic and is built for maximum resilience in exposed marine environments.
- **Water Rating:** IPX6 and IPX7 rated, providing superior protection against powerful water jets and temporary submersion.
- **Installation:** Compact design with an ultra-shallow mounting depth (49 mm) increases installation options for a premium flush or flat finish.
Inverell Boating Centre Expert Note:
The Fusion Apollo ERX400 is the premier wired remote for multi-zone control, distinguished by its full-color display and reliance on the **Ethernet PartyBus™ network** rather than NMEA 2000. This ensures faster data and audio synchronization, making it essential for high-fidelity Apollo system users. It requires a stable 10.8-32 Vdc power input.
Specification in detail
Specification in detail
General & Physical
PART NUMBER: 010-02244-00
DIMENSIONS (HxWxD): 2.76″ x 4.33″ x 2.81″ (70 x 110 x 71.4 mm)
WEIGHT: 100 g (excluding cable)
WATER RATING: IPX6 and IPX7
WARRANTY: 3 years
Display & Audio Control
DISPLAY SIZE: 2.7-inch Optically Bonded Colour LCD
CONTROL ZONES: Multi-Zone™ Technology (Dependent on Host Stereo)
SOFTWARE UPDATES: Over-the-air via Fusion-Link App
Networking & Electrical
CONNECTION TYPE: Power over Ethernet (PartyBus™ Network)
POWER INPUT: 10.8 - 32 Vdc
CURRENT DRAW (MAX): 150 mA at 12 Vdc
COMPASS-SAFE DISTANCE: 150 mm
Inverell Boating Centre Technical Summary: The Fusion Apollo ERX400 is a premium, IPX6/IPX7-rated wired remote utilizing Ethernet connectivity for the PartyBus™ network. It features a full-color LCD display and operates on a wide 10.8–32 Vdc input, making it ideal for large, complex audio systems requiring reliable multi-zone control.
