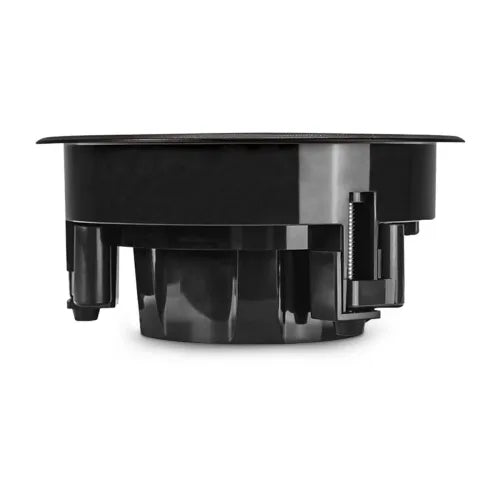

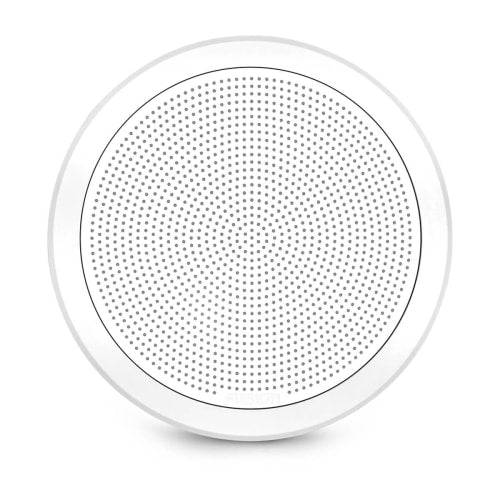

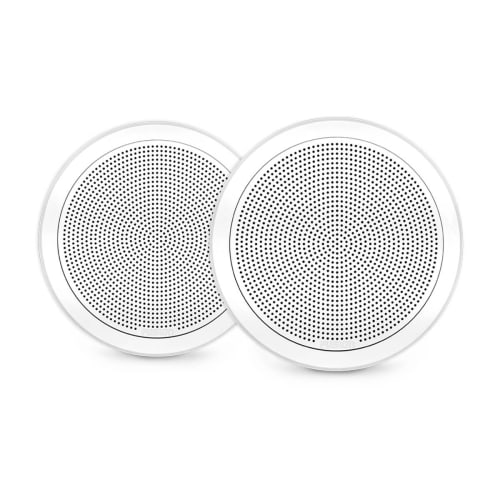

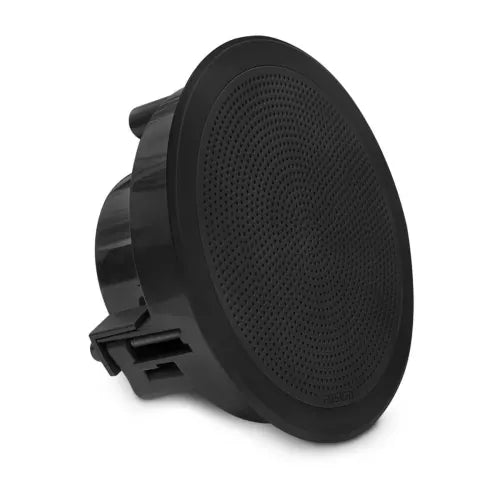

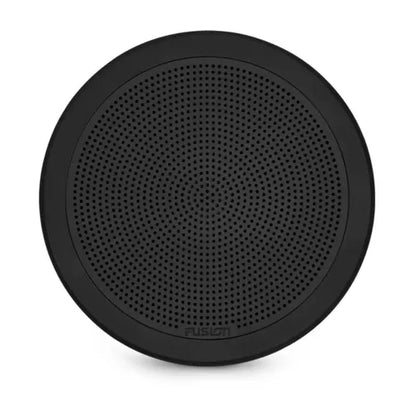

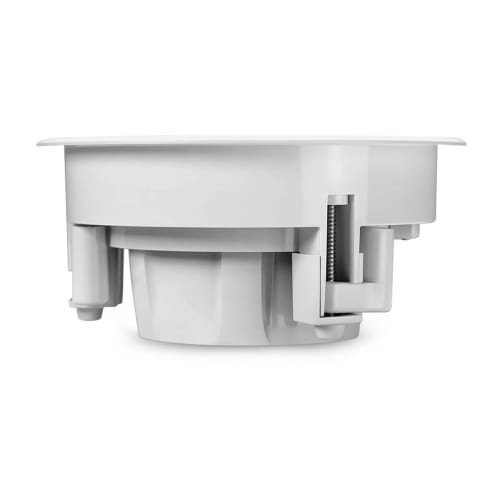

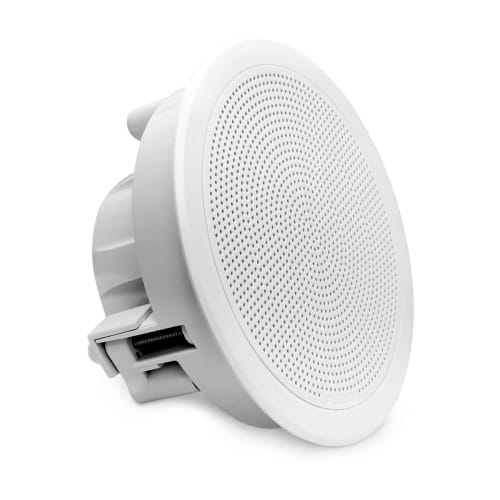

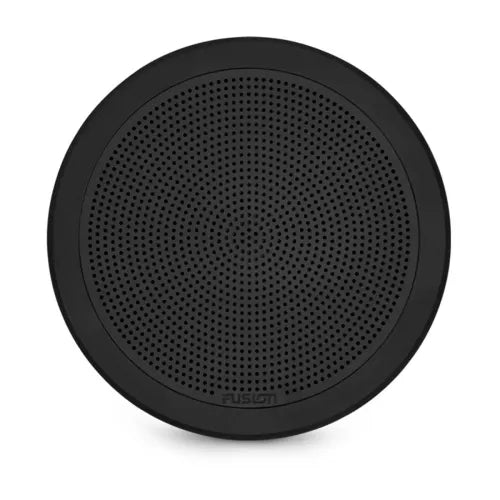

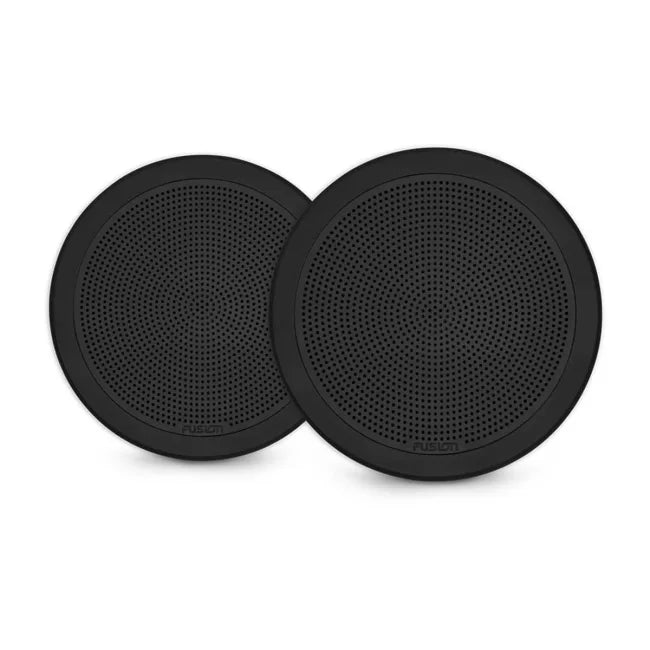

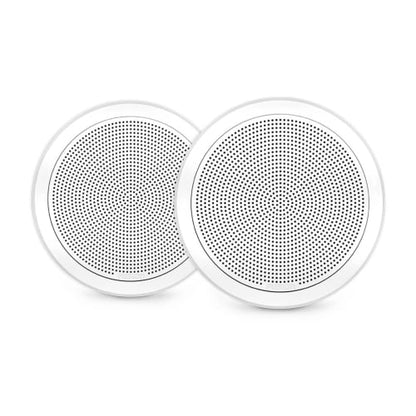

FM Series 6.5" Flush-Mount Marine Speakers – Sleek Design, Superior Sound
The Fusion® FM Series 6.5" Marine Speakers bring a minimalist flush-mount design and clear, high-performance sound to your boat. Engineered to Fusion’s *True-Marine™ standards*, these speakers deliver *120 watts of peak power* and *clean, accurate audio*—all while blending seamlessly into your vessel’s interior. Perfect for style-conscious skippers who demand both elegance and performance.
ELEGANT, FLUSH-MOUNT PERFORMANCE
Designed for a low-profile, seamless finish, the FM Series integrates beautifully into any modern helm or cabin design while maintaining Fusion’s benchmark sound quality.
KEY FEATURES
- Low-Profile Flush Mount: Refined form factor allows for an ultra-clean installation with only 3 mm grille protrusion.
- True-Marine™ Certified: IP65-rated for protection against salt, spray, dust, and UV—built to perform season after season.
- Balanced Audio Output: 30 W RMS power with a responsive polypropylene cone for accurate mid-range tones.
- Sleek Styling Options: Available in round or square, white or black finish to match any marine interior.
ENGINEERED FOR THE MARINE ENVIRONMENT
The FM Series undergoes rigorous environmental testing to ensure reliable performance in harsh marine conditions, offering *consistent, high-fidelity sound* and *timeless aesthetics*.
- IP65 water and dust resistance for marine reliability.
- Polypropylene cone with aluminum dome tweeter ensures crisp highs and durable construction.
- Tested to ISO12216 standards for pressure and water ingress protection.
Inverell Boating Centre Expert Note:
The Fusion® FM Series 6.5″ Round Flush-Mount Speaker is a modern solution for discreet installations without compromising sound. Its ultra-low-profile design and True-Marine durability make it ideal for both interior and cockpit zones, combining refined style with dependable acoustic performance.
Specification in detail
Specification in detail
General & Physical
PART NUMBER: 010-02299-00
SIZE OPTIONS: 6.5″ / 7.7″
FORM FACTOR: Round Flush-Mount
COLOUR OPTIONS: White / Black
DIMENSIONS (DIAMETER × DEPTH): 153 × 69.6 mm (6.02″ × 2.74″)
WEIGHT: 0.8 kg (1.76 lbs)
WATER & DUST RATING: IP65
OPERATING TEMPERATURE: 0° – 50 °C (32° – 122 °F)
WARRANTY: 3 years
Audio Performance
PEAK POWER: 120 W
RMS POWER: 30 W
SENSITIVITY (1 W/1 M): 87 dB
FREQUENCY RESPONSE: 100 Hz – 18 kHz (±3 dB)
NOMINAL IMPEDANCE: 4 Ω
SPEAKER TYPE: Coaxial
Materials & Build
CONE MATERIAL: Polypropylene cone with rubber surround
TWEETER TYPE: Aluminum dome
FRONTAL GRILLE PROTRUSION: 3 mm (0.12″)
COMPASS SAFE DISTANCE: 245 cm (96.5″)
Connections & Mounting
SPEAKER CONNECTIONS: Spade connectors
MOUNTING DIAMETER CLEARANCE: 138 mm (5.43″)
MOUNTING DEPTH CLEARANCE: 70 mm (2.76″)
Inverell Boating Centre Technical Summary:
The Fusion® FM Series 6.5″ Round Flush-Mount Marine Speaker offers reliable sound performance in a sleek, minimal design.
Its IP65 rating and ultra-low profile make it a perfect fit for both interior and exterior installations requiring modern aesthetics and marine-grade durability.
