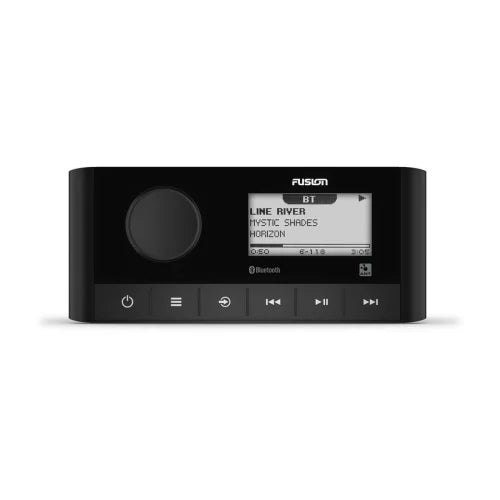

MS-RA60: Compact Marine Stereo with Bluetooth® and Multi-Zone™ Control
The **Fusion® MS-RA60** is a compact and **economical marine stereo**, designed to deliver **premium sound quality** and easy integration for your boat. It offers **Bluetooth® streaming**, **multi-zone control**, and a **2.3-inch monochrome LCD** for improved visibility. The **IPX6/IPX7 water-resistant** front panel ensures durability, while the built-in **Class-D amplifier** provides high efficiency and clear sound across all audio zones.
PREMIUM AUDIO & 2-ZONE CONTROL
The **MS-RA60** provides flexible **multi-zone control**, allowing you to manage two separate audio zones with ease, perfect for smaller boats that need reliable, high-quality sound.
KEY AUDIO & NETWORKING FEATURES
- Class-D Amplifier: **Built-in Class-D amplifier** delivers **22 W RMS x 4** (at 4 ohms) with **180 W peak power** for clear and powerful audio output.
- Multi-Zone™ Control: Manage **2 separate audio zones**, each with RCA pre-outs/subwoofer outputs for enhanced flexibility.
- Bluetooth® Wireless Technology: Stream music wirelessly via **Bluetooth®**, providing easy access to your favorite tunes directly from your smartphone or tablet.
- Display: A clear **2.3-inch monochrome LCD** for easy viewing in all lighting conditions, with improved **bonding technology** to prevent fogging.
DESIGN AND INTEGRATION
The **MS-RA60** is designed to fit easily into **DIN-sized cutouts**, making it simple to upgrade from existing systems without needing to alter the dash space.
- **Compact & Space-Saving Design:** Ideal for retrofitting your existing stereo system without reconfiguring your dashboard.
- **NMEA 2000® Connectivity:** Allows integration with **Garmin MFDs** for seamless control and management of your music system.
- **Source Options:** Supports **AM/FM radio**, **Bluetooth®**, **USB**, **AUX**, and **DAB+ radio** (Europe and Australia).
- **Speed vs. Volume:** Automatically adjusts the volume based on your boat's speed when connected to the **NMEA 2000® network**.
Inverell Boating Centre Expert Note:
The **Fusion MS-RA60** is an excellent choice for those seeking an affordable yet high-performing **marine stereo**. With **Bluetooth® streaming**, **multi-zone control**, and **IPX7-rated water resistance**, it is a perfect fit for upgrading or retrofitting smaller boats.
Specification in detail
Specification in detail
General & Physical
PART NUMBER: 010-02405-00
WATER RATING: IPX6 and IPX7 (Front Panel)
OPERATING VOLTAGE: 10.8 - 16 VDC
CURRENT DRAW (MAX): 15 A
DIMENSIONS: 6.18" x 2.68" x 4.06" (156 x 68 x 103.2 mm)
WEIGHT: 0.77 lbs (350 g)
COMPASS SAFE DISTANCE: 5.9" (150 mm)
WARRANTY: 1 year
Audio Performance & Display
DISPLAY: 2.3″ Perimeter Bonded Monochrome LCD
RATED RMS POWER (4 Ω): 22 W x 4
PEAK POWER: 180 W
MULTI-ZONE TECHNOLOGY: 2 Zones
DSP: Built-in Digital Signal Processing (DSP) Yes
Networking & Connections
NETWORKING: NMEA 2000® (LEN 1)
BLUETOOTH® WIRELESS RANGE: Up to 10 meters (30 ft)
USB PORT: 1 (1A charging output)
AUXILIARY INPUT (RCA): 1
RCA OUTPUTS: 2 Zones (Line Out), 2 Subwoofer Outputs
Inverell Boating Centre Technical Summary: The **Fusion MS-RA60** is a **2-zone stereo** with **22W RMS amplification**. It features **Bluetooth® streaming**, **USB audio**, and **AM/FM radio**, ideal for smaller boats that need an affordable and reliable stereo system.
