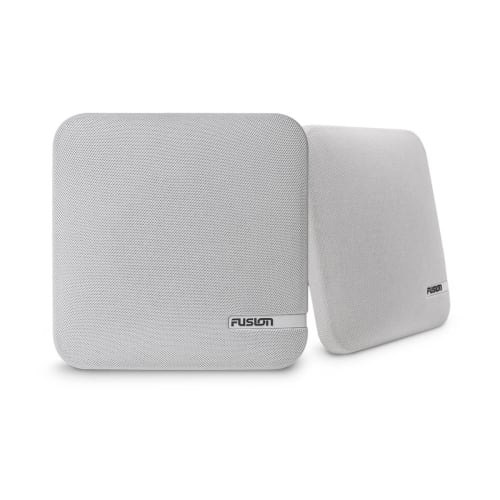

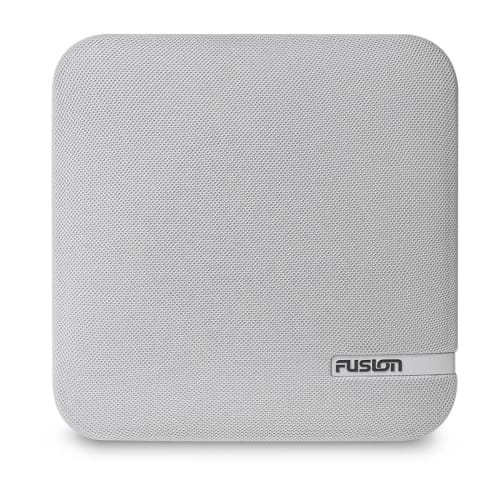

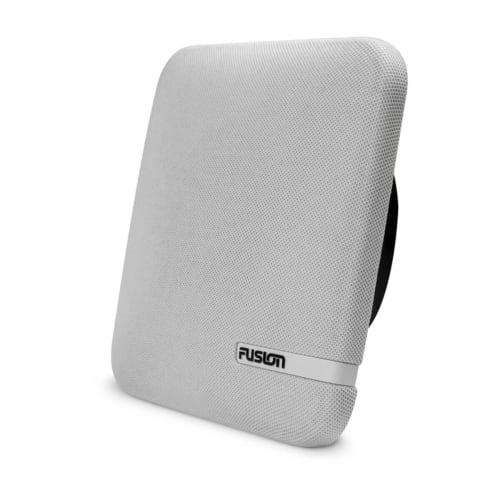

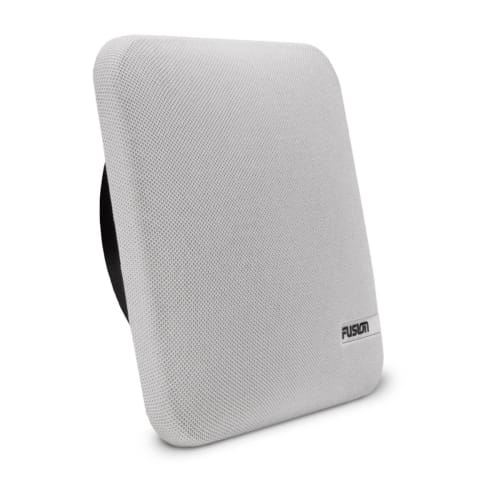

SM Series 6.5″ Shallow Mount Marine Speakers – Compact Design, Clear Sound
The Fusion® SM Series 6.5″ Shallow Mount Marine Speakers deliver full-range sound performance in areas where space is tight. With a mounting depth of just 24 mm (0.94″), these speakers provide crisp, balanced audio without compromising on style or durability. Perfect for cabins, consoles, or shallow panels where traditional speakers simply can’t fit.
SLIM PROFILE, FULL RANGE AUDIO
Engineered for installations with limited mounting depth, the SM Series speakers combine modern aesthetics with smart acoustic design, offering quality sound wherever space is limited.
KEY FEATURES

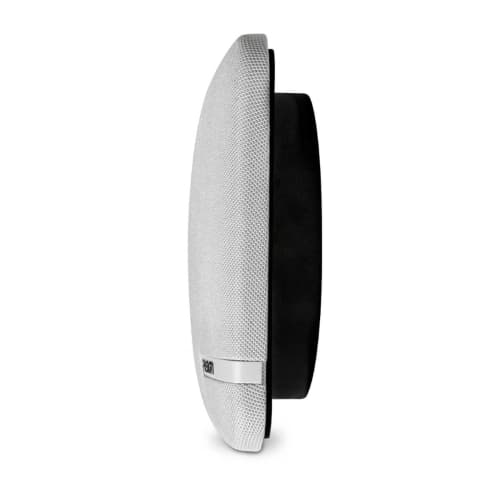

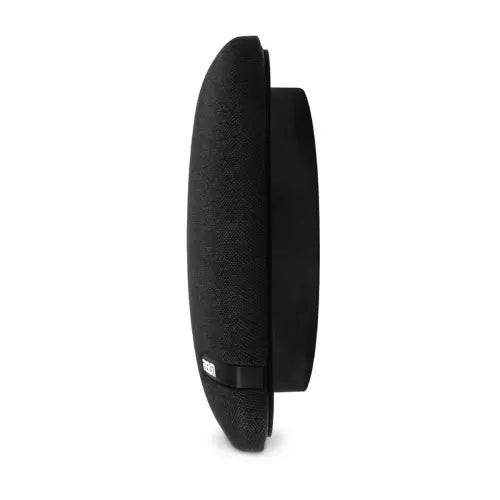

- Ultra-Shallow Mounting Depth: Only 24 mm (0.94″) – ideal for tight installation spaces.
- Tuned, Sealed Enclosure: Integrated back housing optimizes acoustics and protects components from moisture.
- True-Marine™ Certified: IP65-rated for water, salt, UV, and dust resistance – built to perform season after season.
- Refined Aesthetic: Rounded edges and a premium fabric-style finish complement modern boat interiors.
ENGINEERED FOR MARINE CONDITIONS
The SM Series is built to Fusion’s True-Marine™ standards, tested against salt fog, UV exposure, and vibration to ensure durability and performance on the water.
- IP65 water and dust protection rating.
- Retro-fit compatible with most standard 6.5″ speaker cutouts (130 mm diameter).

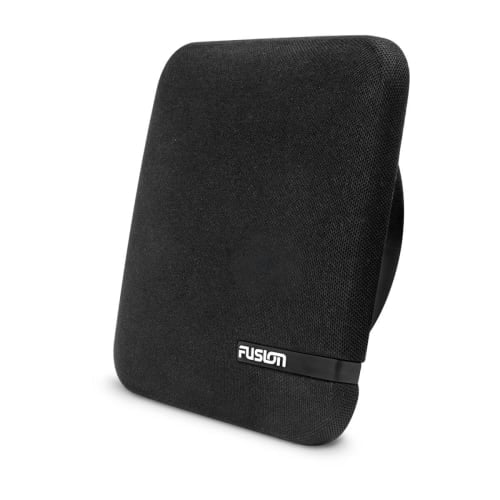

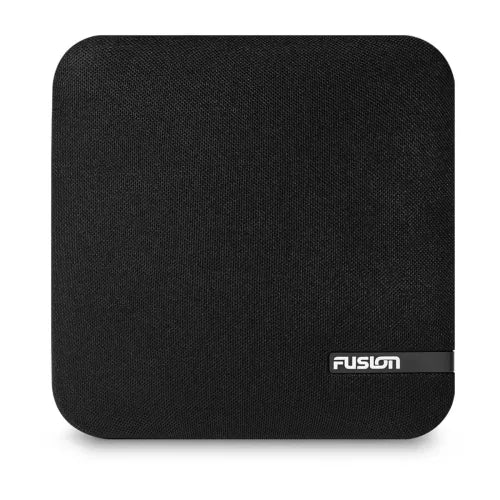

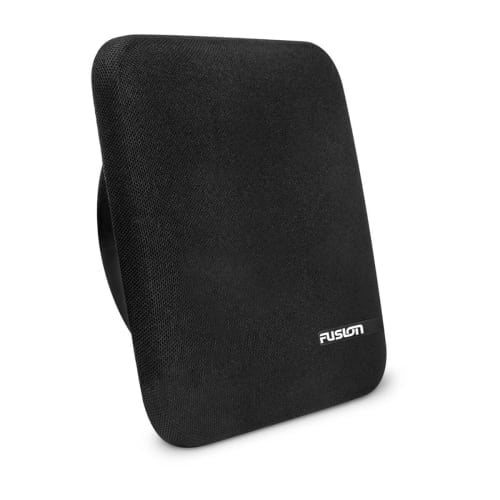

- Available in Classic White or Classic Black finishes for seamless integration.
Inverell Boating Centre Expert Note:
The Fusion® SM Series 6.5″ Shallow Mount Speakers are an ideal choice for vessels where space is at a premium. Their sealed enclosure ensures clean sound without needing rear cups, and the minimal depth profile offers a clean, modern look that fits flush in tight spots.
Specification in detail
Specification in detail
General & Physical
PART NUMBER: 010-02263-10
SIZE: 6.5″
COLOUR OPTIONS: Classic White / Classic Black
DIMENSIONS (DIAMETER × DEPTH): 155 × 46 mm (6.1″ × 1.81″)
WEIGHT: 0.55 kg (1.21 lbs)
WATER & DUST RATING: IP65
OPERATING TEMPERATURE: 0 – 50 °C (32 – 122 °F)
WARRANTY: 1 year
Audio Performance
PEAK POWER: 100 W
SENSITIVITY (1 W/1 M): 84 dB
FREQUENCY RESPONSE: 150 Hz – 20 kHz (±3 dB)
NOMINAL IMPEDANCE: 4 Ω
SPEAKER TYPE: Full Range
Materials & Build
CONE MATERIAL: Polypropylene cone with rubber surround
