FUSION® APOLLO™ MS-RA800: Premium Marine Stereo with 4.3" Touchscreen & 4-Zone DSP
The Apollo™ MS-RA800 is Fusion's most advanced marine stereo, delivering **lossless audio performance of unmatched clarity**. This system features audiophile-level components, a sleek **4.3-inch capacitive touchscreen display**, and a built-in Class-D amplifier providing **40 W RMS x 4** (at 4 ohms)—a 50% increase in power output over its predecessor. The RA800 supports **high-resolution lossless audio** (up to 24 bits at 96 kHz) and uses built-in Wi-Fi® for seamless streaming via Apple AirPlay® 2 and UPnP.
ADVANCED AUDIO PERFORMANCE & 4-ZONE CONTROL
The MS-RA800 is the centerpiece of the Apollo ecosystem, offering full networking capability and Fusion's cutting-edge Digital Signal Processing (DSP).
KEY AUDIO & NETWORKING FEATURES
- Digital Signal Processing (DSP): Built-in DSP automatically optimizes the audio signal with custom profiles for Fusion speakers, ensuring superior sound quality at all volume levels.
- Multi-Zone™ Technology: Provides control over **4 independent audio zones**, including 4 amplified speaker connections, 4 line-outs, and 4 subwoofer pre-outs (requires external amplification).
- PartyBus™ & Wi-Fi: Fully networkable via built-in Wi-Fi® or the dedicated Ethernet port for **PartyBus™** functionality (stereo grouping, synchronized playback, remote power options).
- Connectivity Hub: Supports multiple sources including **HDMI ARC**, USB-C, AUX x2, AM/FM, Bluetooth®, and AirPlay® 2.
DESIGN AND INTEGRATION
The MS-RA800 is engineered to Fusion's **True-Marine** standards, offering robust protection and seamless integration with navigation displays.
- **Display:** 4.3" optically bonded, edge-to-edge glass touchscreen with 800 x 480 resolution provides clarity in bright daylight.
- **NMEA 2000® Control:** Easily network with compatible Garmin MFDs [1] via NMEA 2000® for integrated audio control at the helm.
- **Durability:** IPX6 and IPX7 rated water-resistant front panel.
Inverell Boating Centre Expert Note:
The MS-RA800 is Fusion's most powerful integrated stereo, excelling in both audio quality (Lossless, DSP) and network capability (Wi-Fi, Ethernet, NMEA 2000). The significant power increase from the built-in Class-D amp simplifies wiring for smaller systems, while the 4-zone pre-outs support large, fully amplified custom setups. This unit operates on a wide 10.8–32 Vdc input.
Specification in detail
Specification in detail
General & Physical
PART NUMBER: 010-02937-01
DIMENSIONS (HxWxD): 3.23” x 7.56” x 4.7” (82 x 192 x 119.4 mm)
WEIGHT: 1.37 lbs (620 g)
WATER RATING: IPX6 and IPX7 (Front Panel)
WARRANTY: 3 years
COMPASS SAFE DISTANCE: 5.9" (150 mm)
Audio Performance & Display
DISPLAY: 4.3″ Capacitive Touchscreen Colour LCD (800 x 480 resolution)
RATED RMS POWER (4 Ω): 40 W x 4 (All channels driven)
MULTI-ZONE TECHNOLOGY: 4 Zones
DSP: Built-in Digital Signal Processing (Yes)
HIGH-RESOLUTION AUDIO: Yes (up to 24 bits / 96 kHz)
Connectivity & Electrical
POWER INPUT: 10.8 to 32 Vdc
CURRENT DRAW (MAX): 25 A at 14.4 Vdc
NETWORKING: NMEA 2000® (LEN 2), Ethernet (PartyBus™), Wi-Fi®, Bluetooth®, ANT®

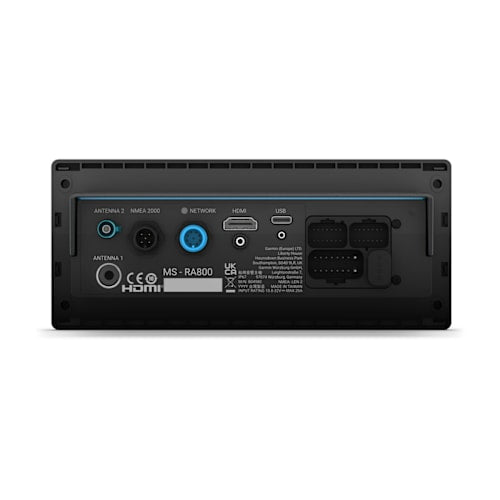

PORTS: 1x Ethernet, 1x NMEA 2000, 1x HDMI ARC, 1x USB-C, 2x AUX Inputs
RCA OUTPUTS: 4 Zones (Line Out), 4 Subwoofer Outputs
Inverell Boating Centre Technical Summary: The MS-RA800 is the premier Fusion stereo, featuring 4x40W RMS amplification and 4-zone output capability. Its high-resolution touchscreen, Wi-Fi streaming (AirPlay 2), and triple networking options (Ethernet, NMEA 2000, ANT) make it the most versatile and technologically advanced choice for high-fidelity marine audio systems.
