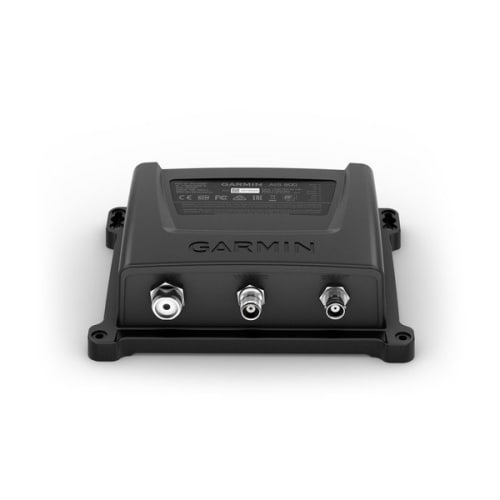

GARMIN AIS™ 800 BLACKBOX: SOTDMA Class B Transceiver
The Garmin AIS™ 800 Blackbox is a compact, easy-to-install transceiver designed to enhance **situational awareness and collision avoidance** on the water. Utilizing **Class B/SO (SOTDMA) technology**, this unit transmits your vessel’s information to other AIS receivers in your area with a robust **5 watts of transmit power**, enabling faster position reporting than ever before (especially above 14 knots). It receives AIS data from other vessels, displaying their information directly on your compatible Garmin Chartplotter.[1]
SUPERIOR AIS PERFORMANCE & INTEGRATION
The AIS 800 simplifies installation and ensures maximum reliability for collision avoidance on the Garmin Marine Network.
KEY SAFETY & NETWORKING FEATURES
- SOTDMA Class B: Provides higher performance and faster reporting rates than standard Class B AIS, ensuring superior tracking and visibility.
- Built-in Splitter: Features an internal VHF antenna splitter, allowing both your VHF radio and the AIS transceiver to **share a single VHF antenna**, simplifying installation and saving hardware costs.
- NMEA 2000® Connectivity: Seamlessly integrates via NMEA 2000/0183 with compatible Chartplotters and MFDs for displaying AIS targets and GPS data.
- Integrated GPS: Includes a built-in GPS receiver (with connector for optional external antenna), providing necessary position data for accurate AIS transmission.
POWER AND DURABILITY
The AIS 800 is housed in a compact black box unit with a small footprint, built to withstand harsh marine environments.
- **5-Watt Transmit Power:** Provides reliable signal broadcasting of your vessel's information.
- **Rugged Construction:** IPX7 waterproof rating and robust operating temperature range ensure durability.
Inverell Boating Centre Expert Note:
The Garmin AIS™ 800 is an essential upgrade for collision avoidance, utilizing the superior SOTDMA Class B standard. The built-in splitter is a key feature, allowing for simpler installation by eliminating the need for a second VHF antenna. It connects via NMEA 2000 for seamless MFD integration.
Specification in detail
Specification in detail
General & Physical (Black Box)
PART NUMBER: 010-02087-00
DIMENSIONS (HxWxD): 17.5 x 14.2 x 5.5 cm
WEIGHT: 0.9 lbs (414 g)
WATER RATING: IPX7 (Submersible)
COMPASS-SAFE DISTANCE: 15.8” (40 cm)
AIS & GPS Communication
AIS CLASS: Class B/SO (SOTDMA)
TRANSMITTER POWER: 5 W
GPS REFRESH RATE: 1 Hz
MAX ANTENNA GAIN: 9 dBi
Networking & Electrical
NMEA 2000: Yes (LEN 2)
NMEA 0183: Yes
OPERATING VOLTAGE: 9.6 - 31.2 Vdc
CURRENT DRAIN (12Vdc): < 400 mA
ANTENNA CONNECTOR: S0-239 (50 Ω)
VHF ANTENNA SPLITTER: Built-in
Inverell Boating Centre Technical Summary: The AIS 800 is a compact, high-performance SOTDMA Class B transceiver (5W). Its key advantages are the integrated VHF antenna splitter, allowing shared use of one antenna, and its NMEA 2000 compatibility, which enables seamless display of AIS targets on your primary Chartplotter.
