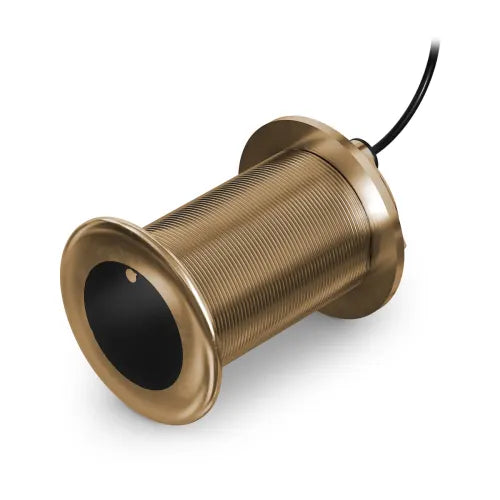

GARMIN GT12M-THF (0°): 350W Mid-Band CHIRP Thru-Hull Transducer
The Garmin GT12M-THF (0° tilt) is a specialized, **flush-mounted thru-hull transducer** designed for cruising and fishing boats requiring optimal traditional sonar performance and minimal drag. This 8-pin bronze unit features **350 W Mid-Band CHIRP Traditional Sonar (85–165 kHz)**, providing superior target separation and clarity. It delivers reliable depth returns down to **240 meters (790 ft) in saltwater** and **365 meters (1,200 ft) in freshwater**. The **0-degree tilt version** is specifically designed for hulls with minimal deadrise (0°–7°).
MID-BAND CHIRP PERFORMANCE & BRONZE HOUSING
This transducer is built with a durable bronze housing and utilizes Mid-Band CHIRP for an optimum balance of depth penetration and wide coverage area.
KEY SONAR & INSTALLATION FEATURES
- High Transmit Power: **350 W power output** ensures reliable signal return, reaching 240m in saltwater.
- Broad Frequency Range: The Mid-Band CHIRP (85–165 kHz) pulses a wide coverage area (16°–24° beamwidths).
- Flush Mount Design: Thru-hull installation offers flush mounting for **minimum drag** and optimum beam orientation.
- Auto-ID Technology: Enjoy simple plug-and-play operation with compatible Garmin MFDs.
INSTALLATION AND CONNECTIVITY
The GT12M-THF is built for robust, permanent installation on fiberglass, composite, and wood hulls (Bronze housing not recommended for aluminum).
- **8-Pin Connector:** Uses the 8-pin connector for power and traditional sonar data output.
- **Deadrise Support:** The **0° tilt version** is designed for optimal performance on hulls with deadrise angles from **0° to 7°**.
Inverell Boating Centre Expert Note:
The GT12M-THF is a reliable, high-definition traditional sonar solution (no scanning capability). The 0° tilt design is critical and **must be matched to a hull with minimal deadrise (0°–7°)** to ensure the beam points straight down. This transducer is also **RapidReturn™ Sonar compatible** for use with the GSD 28 black box.
Specification in detail
Specification in detail
General & Physical
PART NUMBER: 010-02867-00
HOUSING MATERIAL: Bronze
INSTALLATION: Thru-Hull (Flush Mount)
CABLE LENGTH: 15 metres (49.2 ft)
SUPPORTED DEADRISE: 0° to 7° (0° Tilt)
INCLUDES: Installation Hardware
Sonar Capabilities (Traditional Only)
NUMBER OF PINS: 8-pin
SONAR TYPE: Traditional CHIRP (Mid-Band)
TRADITIONAL POWER: 350 W
MAXIMUM DEPTH (SALTWATER): 240 m (790 ft)
MAXIMUM DEPTH (FRESHWATER): 365 m (1,200 ft)
FREQUENCY: 85–165 kHz
BEAMWIDTH: 24°–16°
RAPIDRETURN™ SONAR COMPATIBLE: Yes
Inverell Boating Centre Technical Summary: The GT12M-THF (0°) is an excellent 350W traditional sonar solution for mid-size boats, offering Mid-Band CHIRP across a wide beam. The bronze housing is ideal for fiberglass/wood hulls, and the 0° tilt design ensures minimal drag and clear returns on hulls with minimal deadrise.
