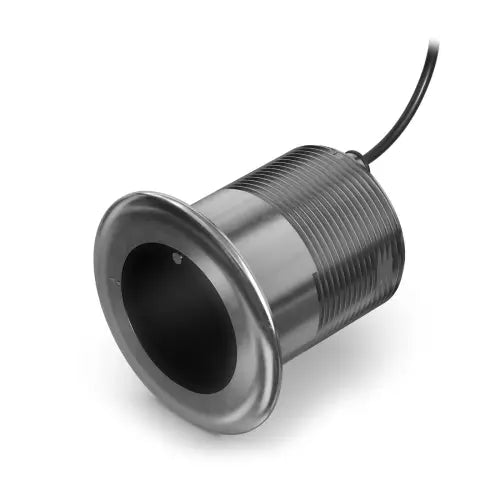

GARMIN GT17M-THF (0°): 1 kW Mid-Band CHIRP Thru-Hull Transducer
The Garmin GT17M-THF is a premium, **flush-mounted thru-hull transducer** designed for cruising and sport fishing boats requiring maximum depth performance and minimal drag. This 8-pin unit features powerful **1 kW Mid-Band CHIRP Traditional Sonar (80–165 kHz)**, providing superior target separation and clarity. It delivers reliable depth returns down to **550 meters (1,800 ft) in saltwater** and **730 meters (2,400 ft) in freshwater**. The 0-degree tilt version is specifically designed for hulls with little to no deadrise (0°–7°).
1 KW POWER & MID-BAND CHIRP PERFORMANCE
This transducer is built with a durable stainless steel housing and utilizes Mid-Band CHIRP for an optimum balance of depth penetration and wide coverage area.
KEY SONAR & INSTALLATION FEATURES
- High Transmit Power: **1 kW power output** ensures maximum depth performance, reaching 550m in saltwater.
- Mid-Band CHIRP: The 80–165 kHz frequency range provides excellent sonar sensitivity, low noise, and good separation of targets across beamwidths of **9°–18°**.
- Flush Mount Design: Thru-hull installation offers flush mounting for **minimum drag** and optimum beam orientation.
- Auto-ID Technology: Enables simple plug-and-play operation, automatically configuring the sonar to the transducer being used.
INSTALLATION AND CONNECTIVITY
The GT17M-THF is built for integration into the Garmin Marine Network and requires professional installation.
- **8-Pin Connector:** Uses the 8-pin connector for power and traditional sonar data output.
- **Deadrise Support:** The 0° tilt version is designed to be flush-mounted on hulls with deadrise angles from **0° to 7°**.
Inverell Boating Centre Expert Note:
The GT17M-THF is a heavy-duty, high-power traditional sonar solution (no scanning capability). The 0° tilt design is critical and **must be matched to a hull with minimal deadrise (0°–7°)** to ensure the beam points straight down. This transducer is also **RapidReturn™ Sonar compatible** for use with the GSD 28 black box.
Specification in detail
Specification in detail
General & Physical
PART NUMBER: 010-02930-00
HOUSING MATERIAL: Stainless Steel
INSTALLATION: Thru-Hull (Flush Mount)
CABLE LENGTH: 15 m (49.2 ft)
SUPPORTED DEADRISE: 0° to 7° (0° Tilt)
INCLUDES: Installation Hardware (Fairing Block not required)
Sonar Capabilities (Traditional Only)
NUMBER OF PINS: 8-pin
SONAR TYPE: Traditional CHIRP (Mid-Band)
TRADITIONAL POWER: 1 kW (1,000 W)
FREQUENCY: 80–165 kHz
MAXIMUM DEPTH: 550 m Saltwater (1,800 ft); 730 m Freshwater (2,400 ft)
BEAMWIDTH: 9°–18°
RAPIDRETURN™ SONAR COMPATIBLE: Yes
Inverell Boating Centre Technical Summary: The GT17M-THF (0°) is a professional-grade 1 kW transducer optimized for deep-water traditional sonar. It is the core component for high-performance fishing systems that require reliable depth returns and compatibility with Garmin's fastest sonar technologies (RapidReturn). The flush-mount design minimizes drag.
