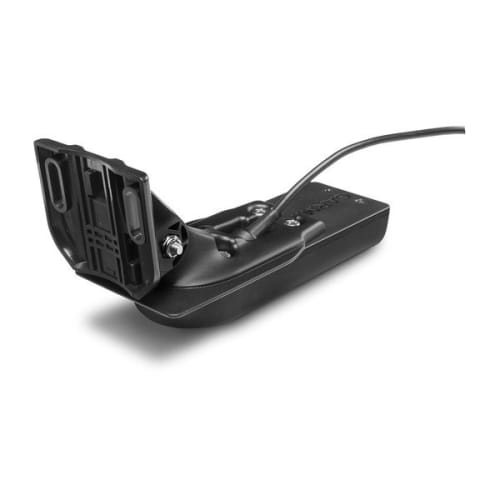

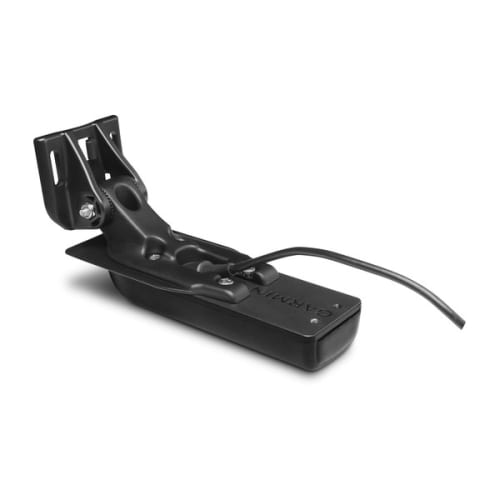

GARMIN GT22HW-TM: High-Wide CHIRP & ClearVü™ Transducer (8-Pin)
The Garmin GT22HW-TM is the perfect all-in-one transducer for freshwater fishermen and smaller craft. This compact, 8-pin transducer combines **High-Wide CHIRP Traditional Sonar (250 W)** with **CHIRP ClearVü™ scanning sonar (350 W)**. It consistently displays clear and crisp fish arches with superior target separation down to **800 feet (traditional)** and provides clear definition of structure below the boat down to **500 feet (ClearVü)**. Its compact size makes it ideal for mounting to a trolling motor.
HIGH-WIDE CHIRP & COMPACT POWER
The GT22HW-TM utilizes High-Wide CHIRP frequencies (150-240 kHz) to provide maximum coverage and clarity, especially beneficial for freshwater applications.
KEY SONAR & COVERAGE FEATURES
- Traditional Sonar: 250 W High-Wide CHIRP (150-240 kHz) for excellent fish arch clarity and target separation up to **800 feet**.
- ClearVü™ Scanning Sonar: 350 W scanning power (455/800 kHz) for photo-like clarity of submerged structure down to **500 feet**.

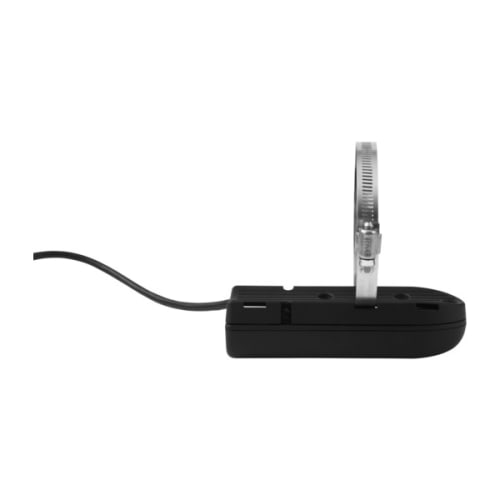

- Mounting Options: Includes hardware for both Transom and Trolling Motor installation.
INSTALLATION AND SPECIFICATIONS
The GT22HW-TM is a reliable, easy-to-install transducer that uses the 8-pin connector standard.
- **8-Pin Connector:** Uses the 8-pin connector for simultaneous output of Traditional and ClearVü sonar signals.
- **Cable Length:** Includes a long **20-foot cable** for flexible routing.
Inverell Boating Centre Expert Note:
The GT22HW-TM is an excellent freshwater choice, balancing compact size with strong power output (250W/350W). Its use of High-Wide CHIRP ensures maximum coverage angle in shallower water. Ensure your Chartplotter has a compatible 8-pin port to utilize both Traditional and ClearVü sonar features.
Specification in detail
Specification in detail
General & Physical
PART NUMBER: 010-12403-00
CABLE LENGTH: 20 ft (6.1 m)
INSTALLATION: Transom or Trolling Motor Mount (Hardware Included)
SUPPORTED TRANSOM ANGLES: 0°–70° degree transom
Sonar Capabilities
NUMBER OF PINS: 8-pin
TRADITIONAL SONAR: CHIRP High Wide (150-240 kHz)
TRADITIONAL POWER: 250 W
MAXIMUM DEPTH (TRADITIONAL): 800 ft (244 m)
SCANNING SONAR: ClearVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
SCANNING POWER: 350 W
MAXIMUM DEPTH (CLEARVÜ): 500 ft (152 m)
DEPTH/SPEED/TEMPERATURE: Depth and Temperature
Inverell Boating Centre Technical Summary: The GT22HW-TM is a specialized 8-pin transducer offering dual 250W/350W power for simultaneous Traditional and ClearVü sonar. It is optimized for clarity in freshwater, achieving traditional depths up to 800 ft and ClearVü clarity up to 500 ft, primarily utilizing High-Wide CHIRP for maximum coverage.
