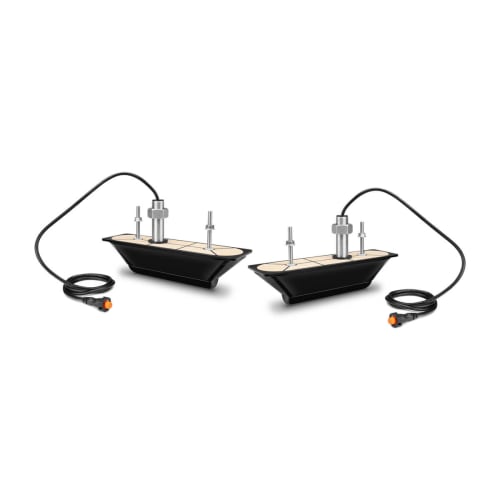

    GARMIN GT30-THP: ClearVü™ & SideVü™ Thru-Hull Pair (Up to 25° Deadrise)

    The Garmin GT30-THP is a high-performance **thru-hull transducer pair** (Port and Starboard) designed for permanent installation on vessels with deadrise from **5 degrees to 25 degrees**. This pair features two stainless steel stem transducers that deliver **500 W per element** of scanning power across **CHIRP ClearVü™ and SideVü™ sonar**. It provides clear definition of objects and structure below and to each side of the boat, achieving superior SideVü range up to **500 feet** and ClearVü depth up to **750 feet**. It is optimized for pairing with black box sonar modules like the GCV™ 10.


    THRU-HULL PAIR FOR MAXIMUM CLARITY

    Installing a dedicated Port/Starboard transducer pair eliminates hull shadow interference, ensuring optimized performance for SideVü and stable returns, particularly on deep-V hulls.

    KEY SONAR & INSTALLATION FEATURES

    • Optimized Scanning: Provides dedicated **CHIRP 455 kHz and 800 kHz** scanning frequencies for clear definition of structure.
    • Wide Deadrise Support: Includes fairing blocks and hardware specifically designed to compensate for hull deadrise angles between **5 and 25 degrees**.
    • Total Power: 500 W per element, with a total potential power of 1,500 W.
    • No Traditional Sonar: This is a dedicated scanning transducer kit and **does not** include traditional CHIRP functionality.

    CONNECTIVITY AND DURABILITY

    The GT30-THP uses durable stainless steel stems and simplifies the connection process via an included Y-cable.

    • **12-Pin Connection:** The included Y-cable allows both transducers to consolidate and connect to a **single 12-pin port** on your Chartplotter or Black Box.
    • **Durability:** Stainless steel stems provide long-term protection against corrosion.

    Inverell Boating Centre Expert Note:

    The GT30-THP is the premier permanent installation choice for maximizing scanning resolution on deep-V hulls (5° to 25° deadrise). It is a **scanning-only solution**—ideal when paired with a separate high-power Traditional CHIRP transducer (e.g., a GSD module or a Garmin single-frequency unit) for comprehensive coverage. **Professional installation is essential.**

    Specification in detail

    General & Physical


    PART NUMBER: 010-01961-11

    INSTALLATION: Thru-Hull Pair (Stainless Steel Stems)

    CABLE LENGTH: 5 ft + 30 ft Y-extension cable

    SUPPORTED DEADRISE: 5° to 25° deadrise

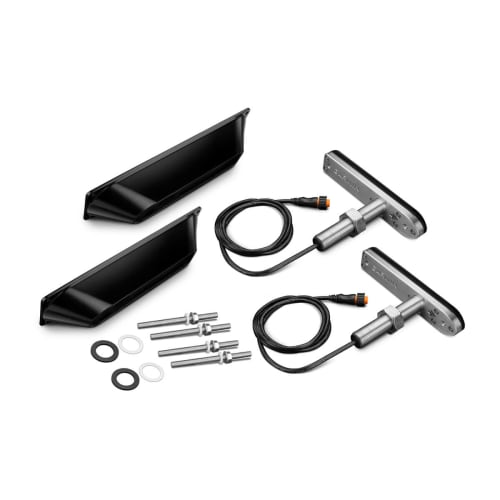

    INCLUDES: 2 Transducers (Port/Starboard), Fairing Blocks, Y-Cable

    Sonar Capabilities (Scanning Only)


    NUMBER OF PINS: 12-pin (Single Connection Point)

    SONAR TYPE: ClearVü™ and SideVü™ Scanning

    TRANSMIT POWER: 500 W per element

    MAXIMUM DEPTH (CLEARVÜ): 750 ft (228 m)

    MAXIMUM RANGE (SIDEVÜ): 500 ft total (250 ft left/right)

    SCANNING FREQUENCIES: CHIRP 455 kHz (445-475 kHz) & 800 kHz (805-840 kHz)


    Inverell Boating Centre Technical Summary: The GT30-THP is the premium thru-hull scanning solution for maximizing side and down clarity on hulls with moderate deadrise (5° to 25°). It provides 500W scanning power per element and utilizes the included Y-cable to connect both transducers to a single 12-pin port.
